Windfoil 140 et Slalom 100 CAD - 2018

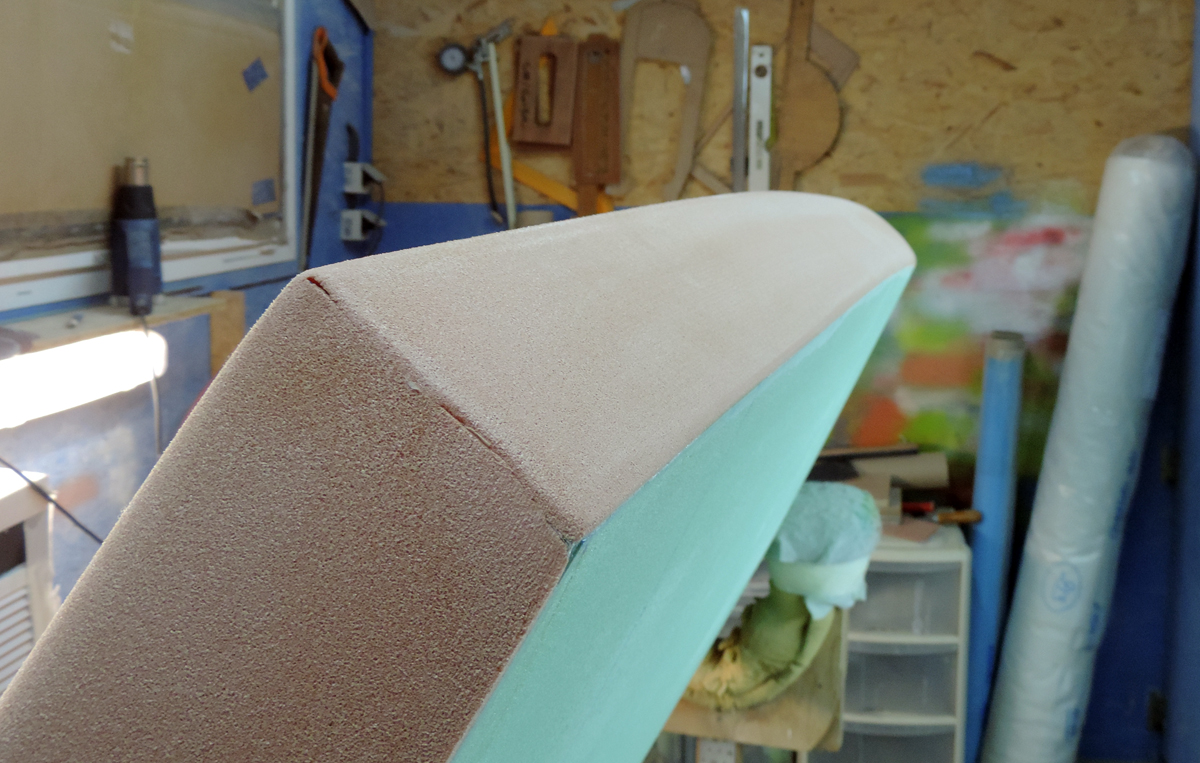

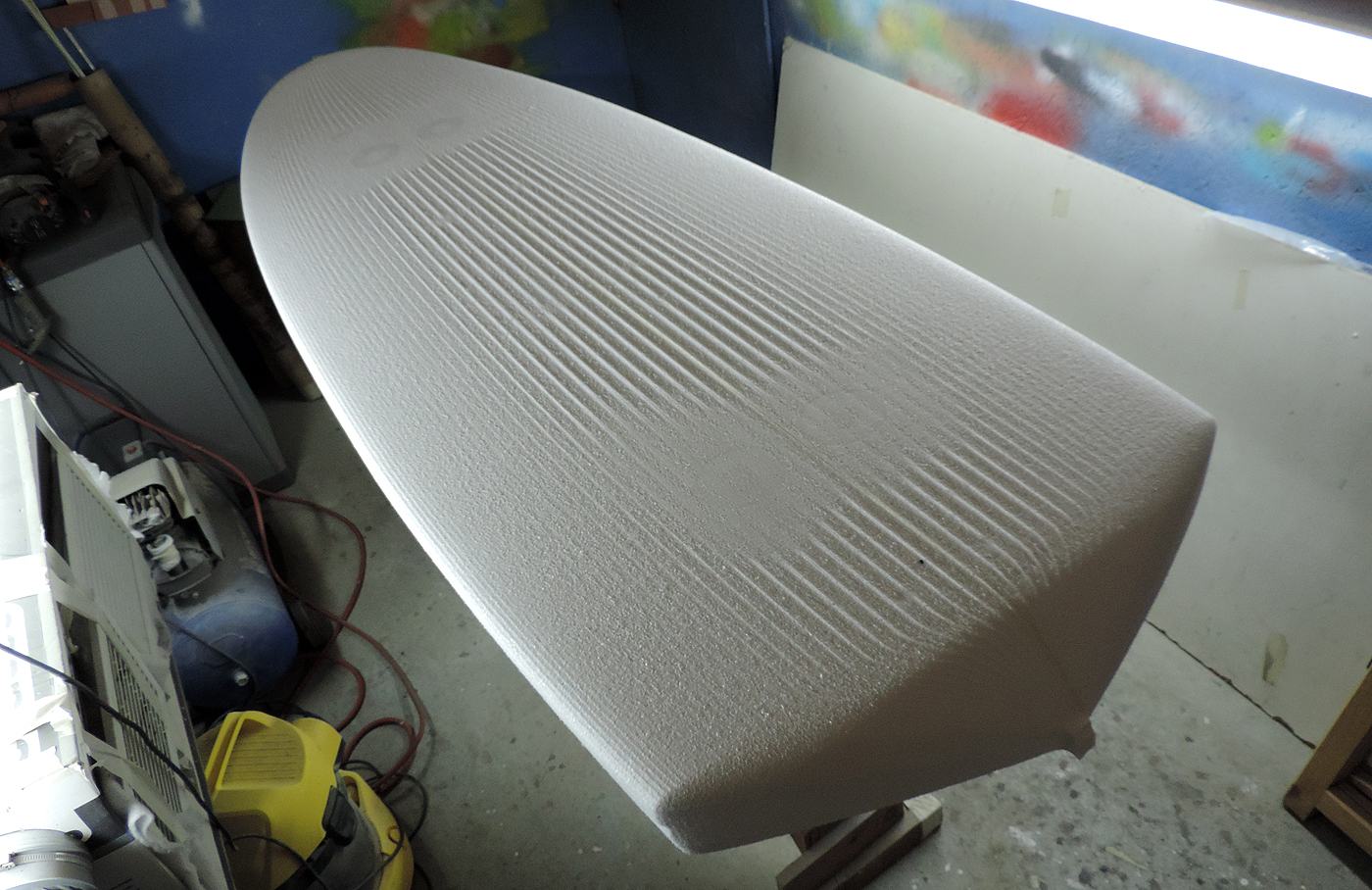

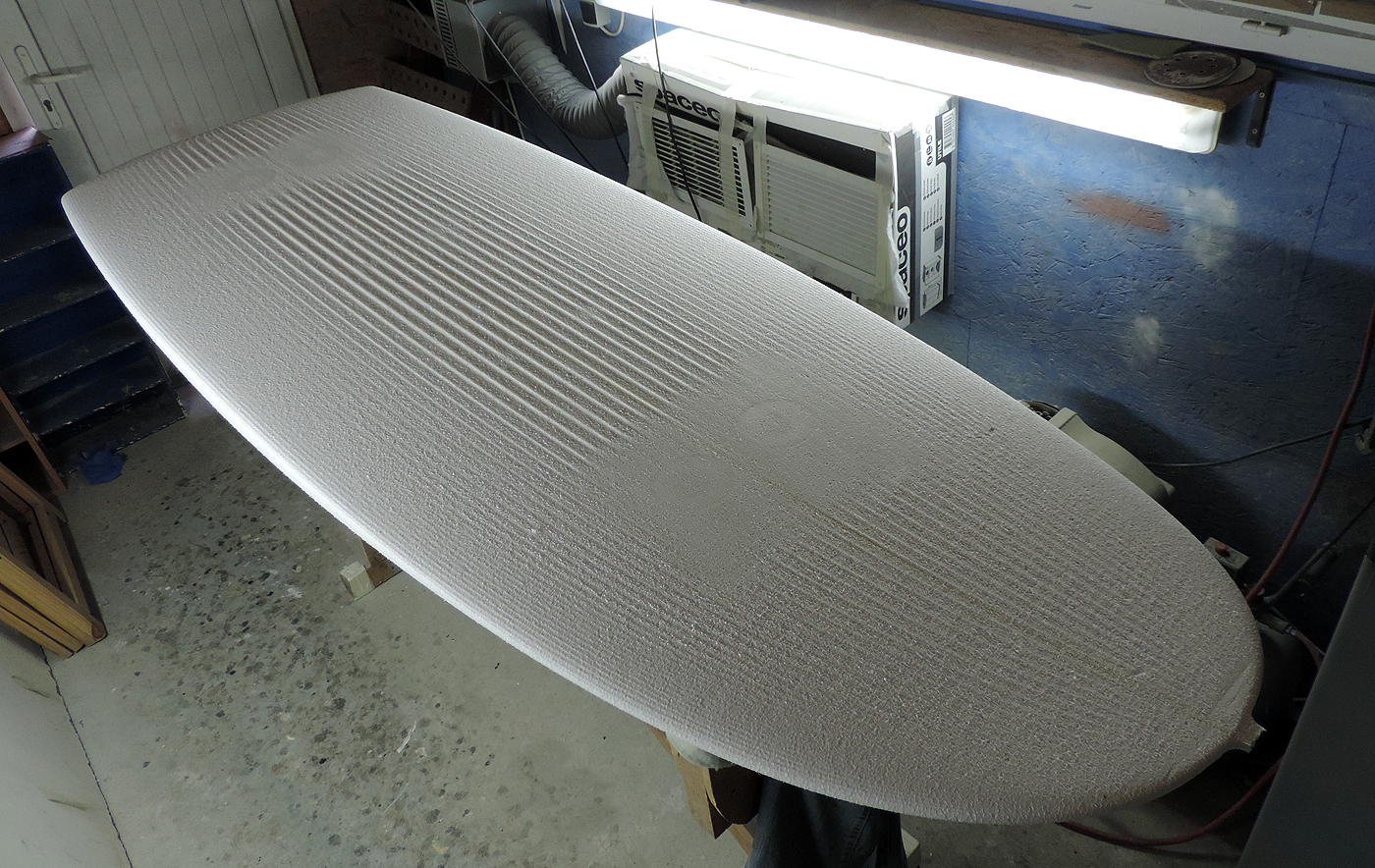

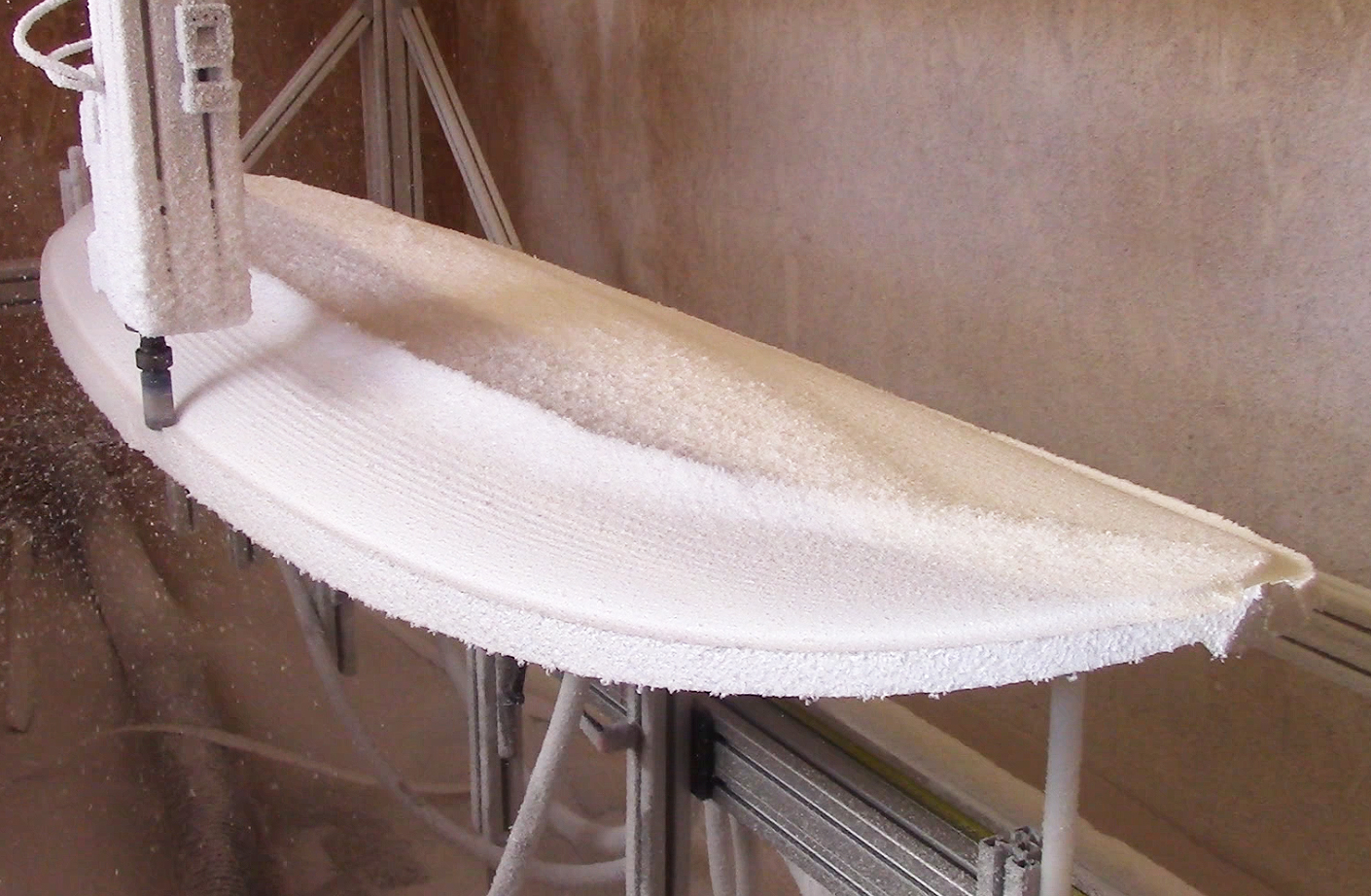

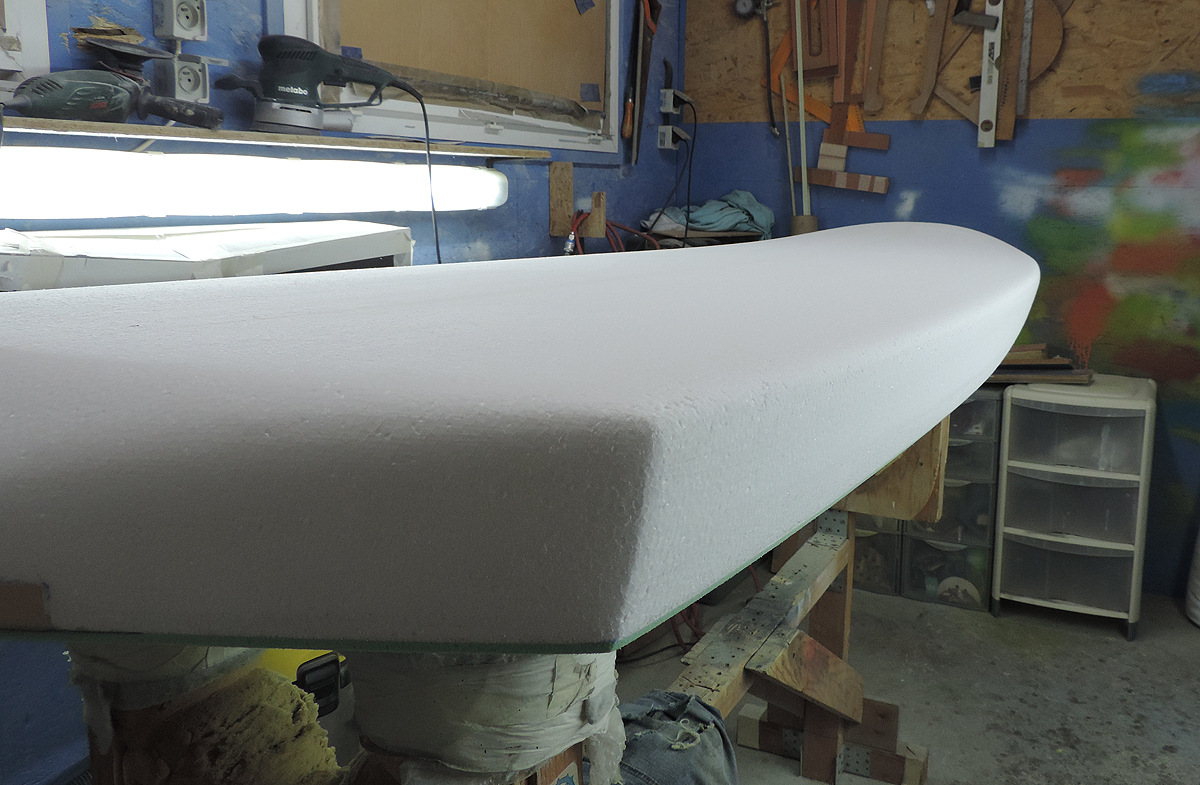

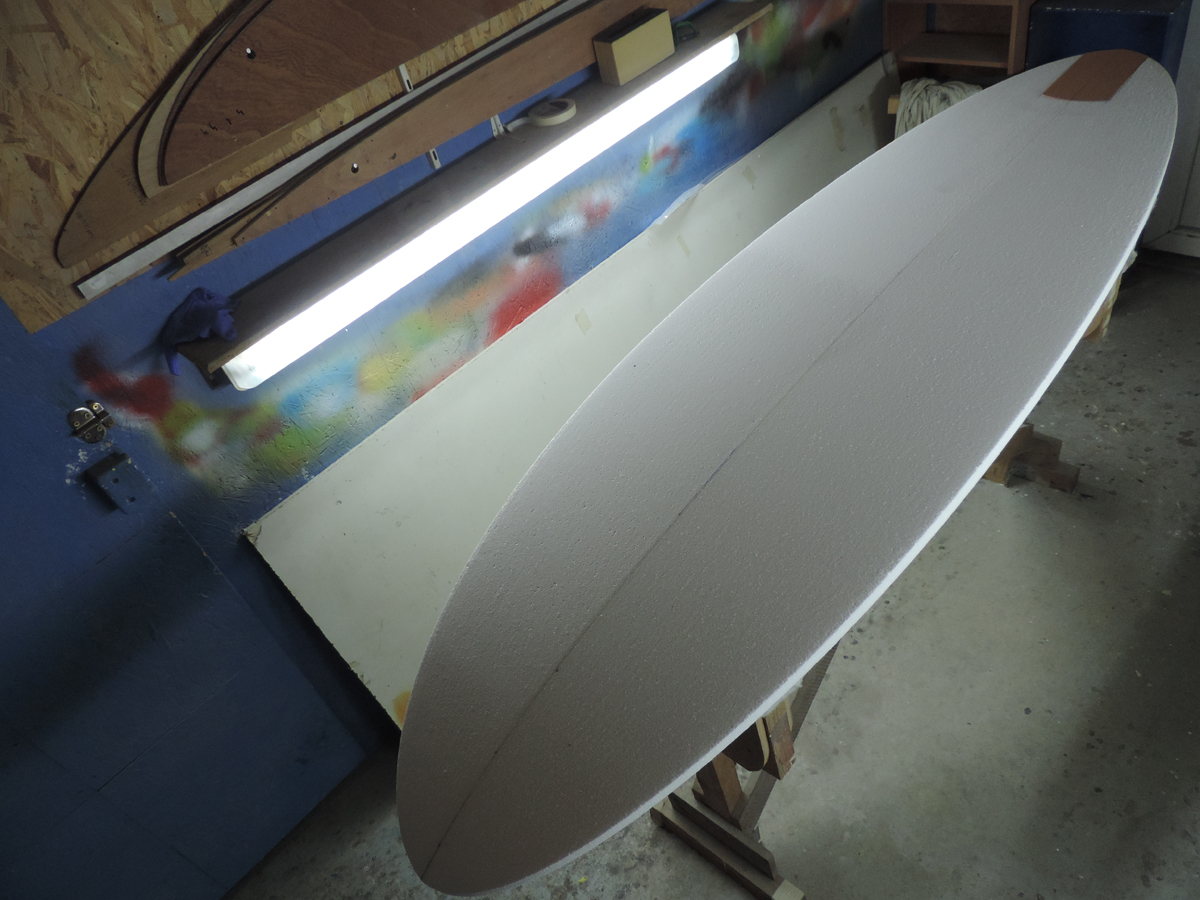

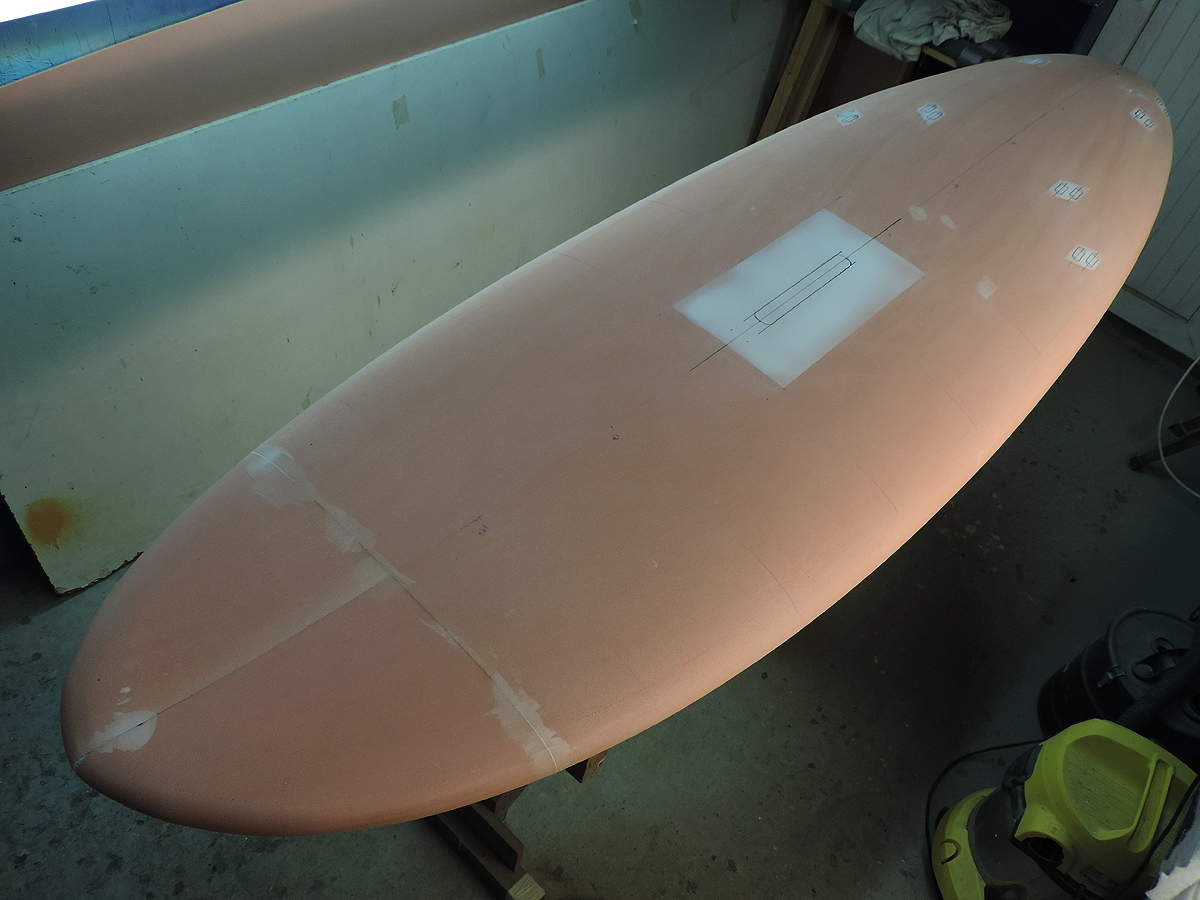

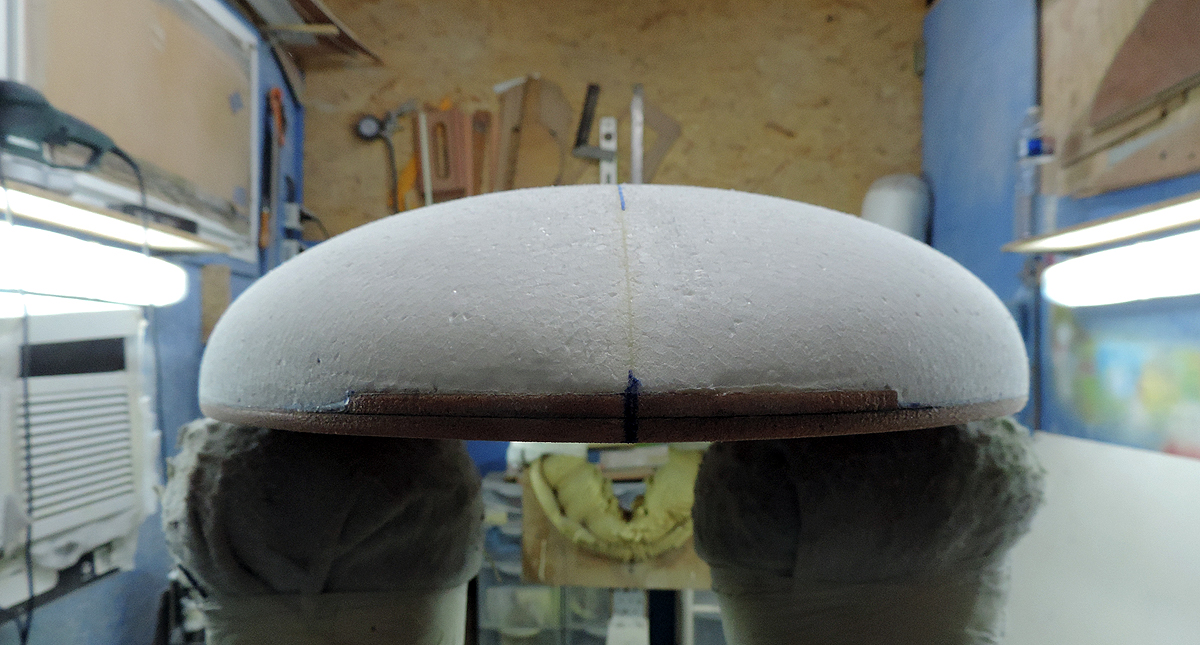

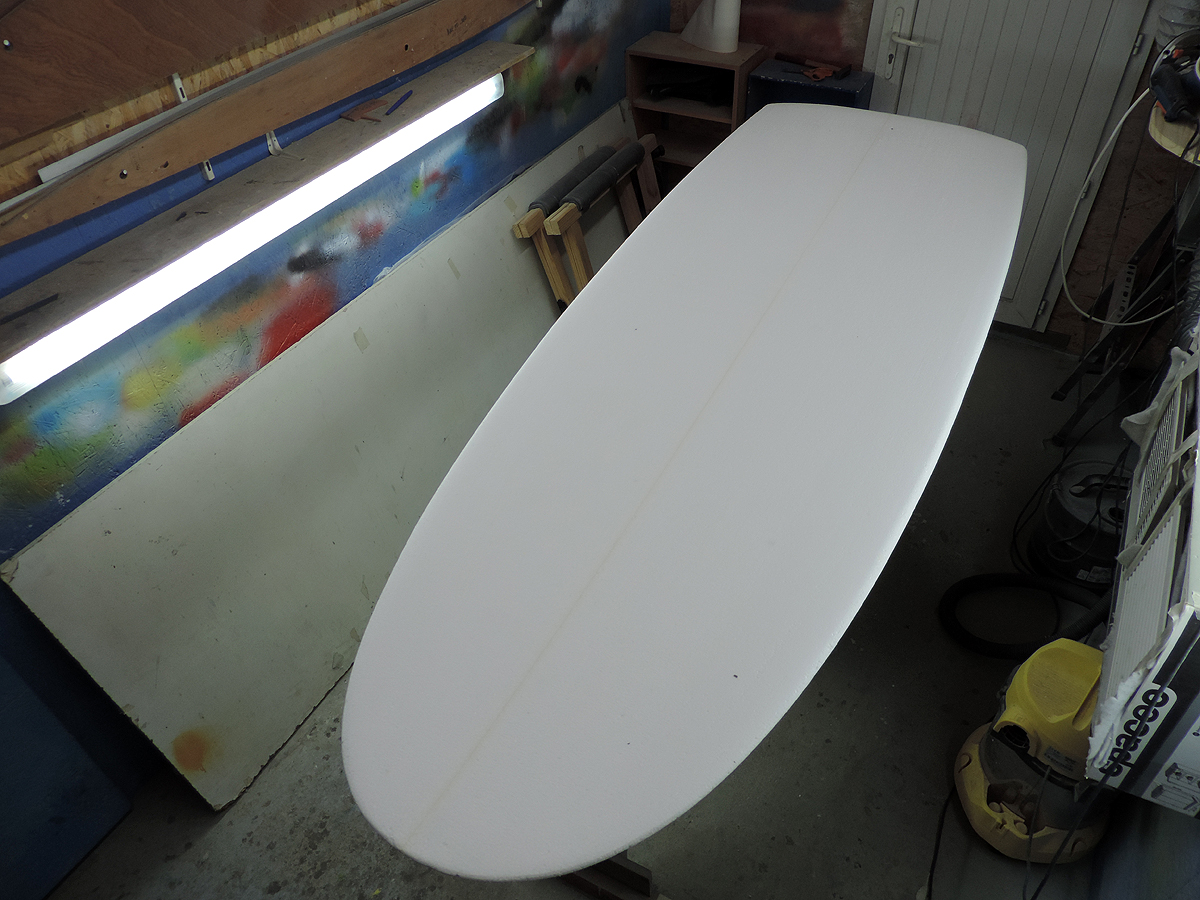

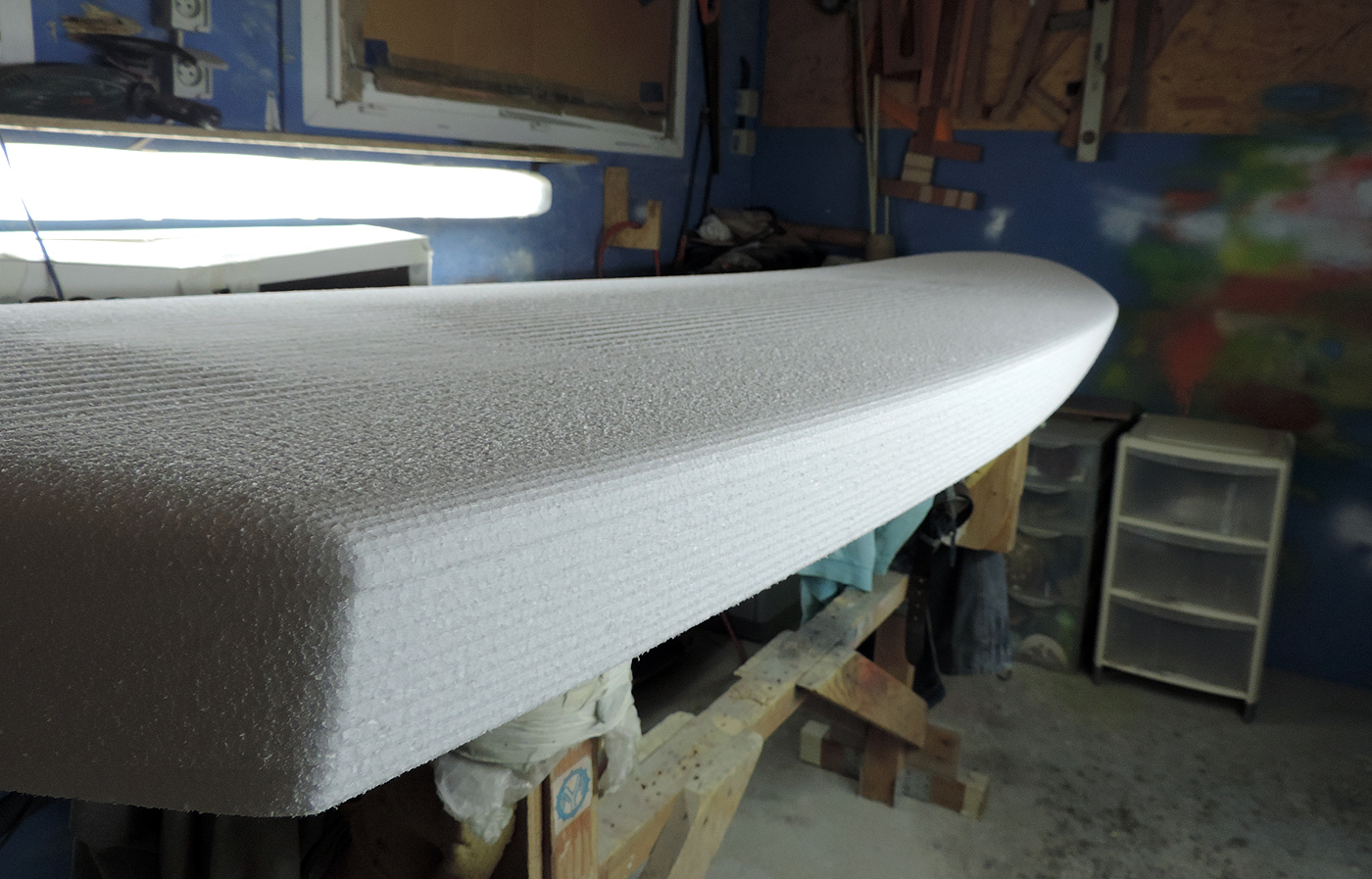

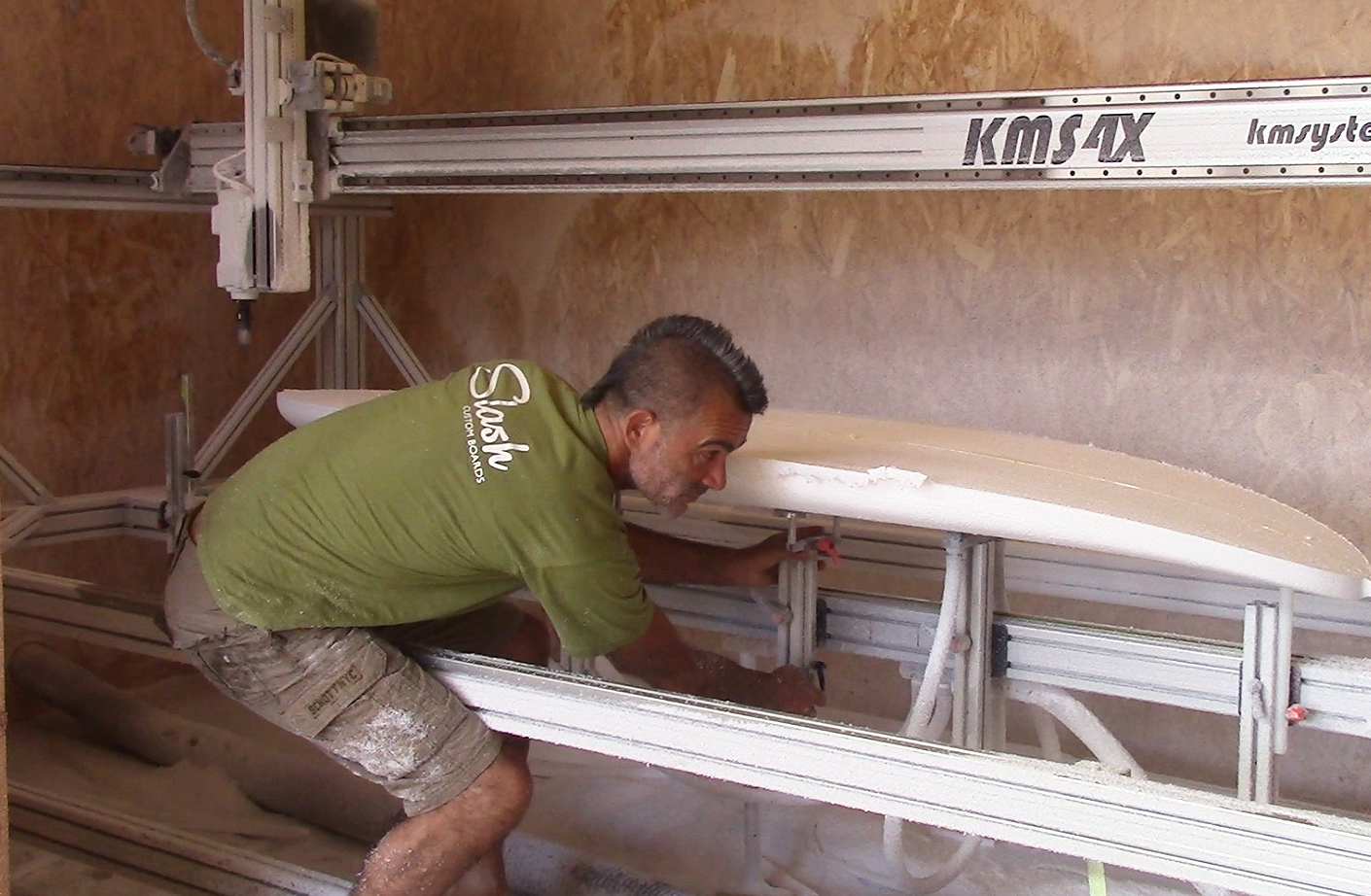

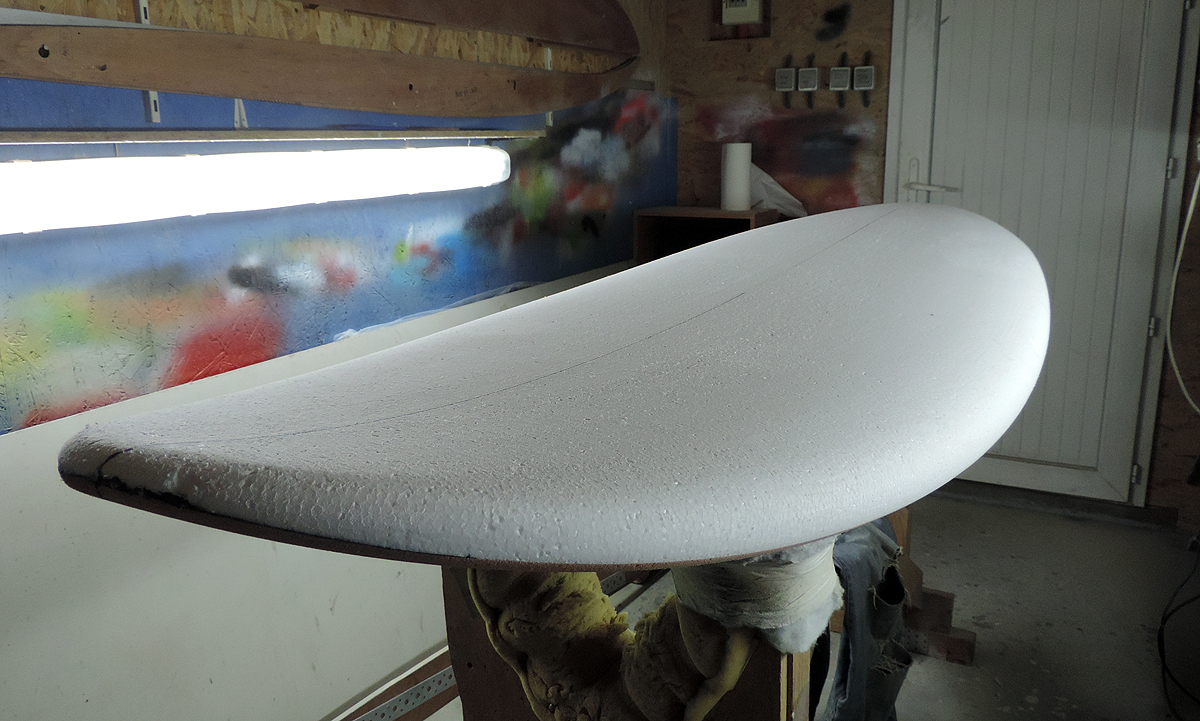

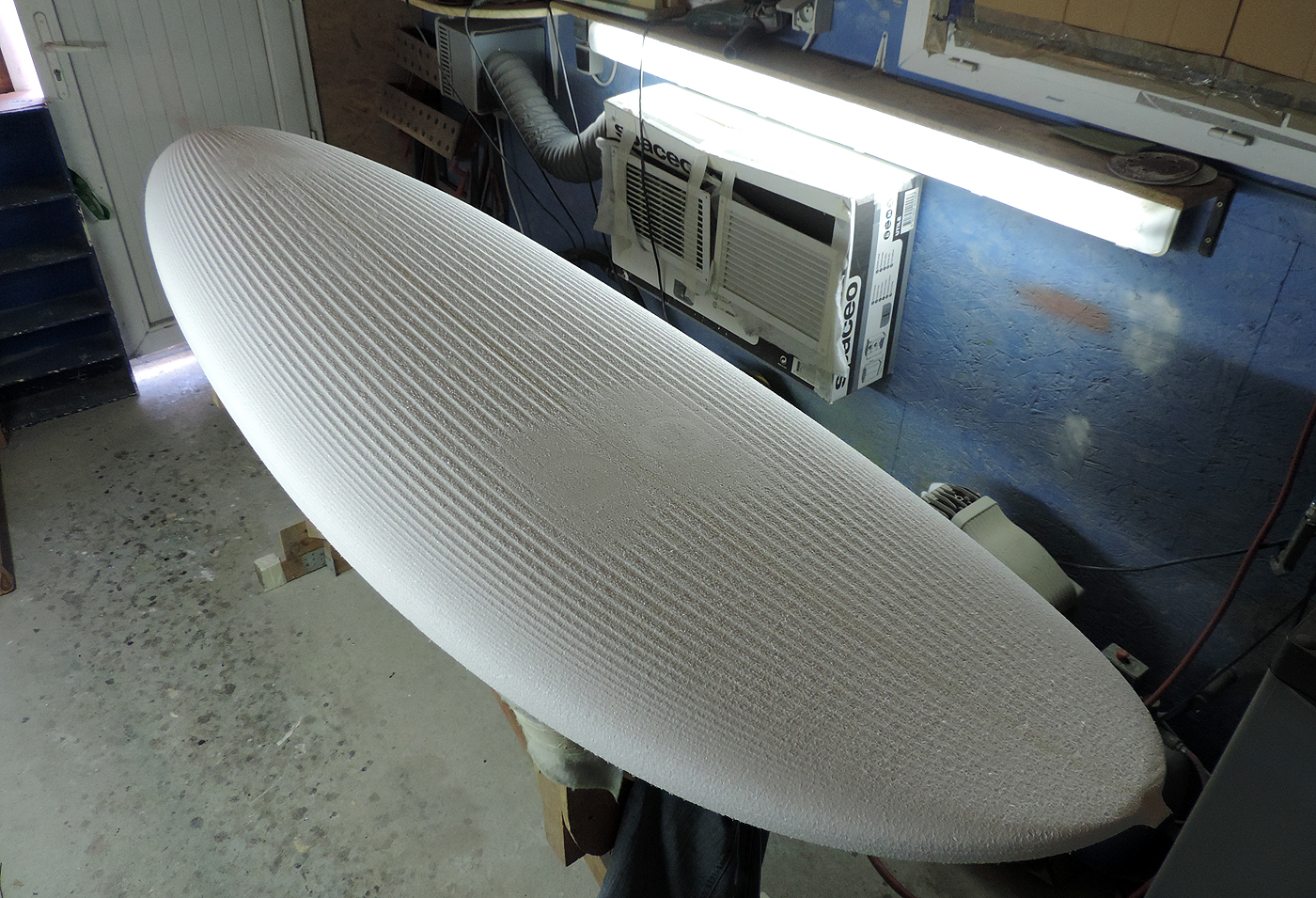

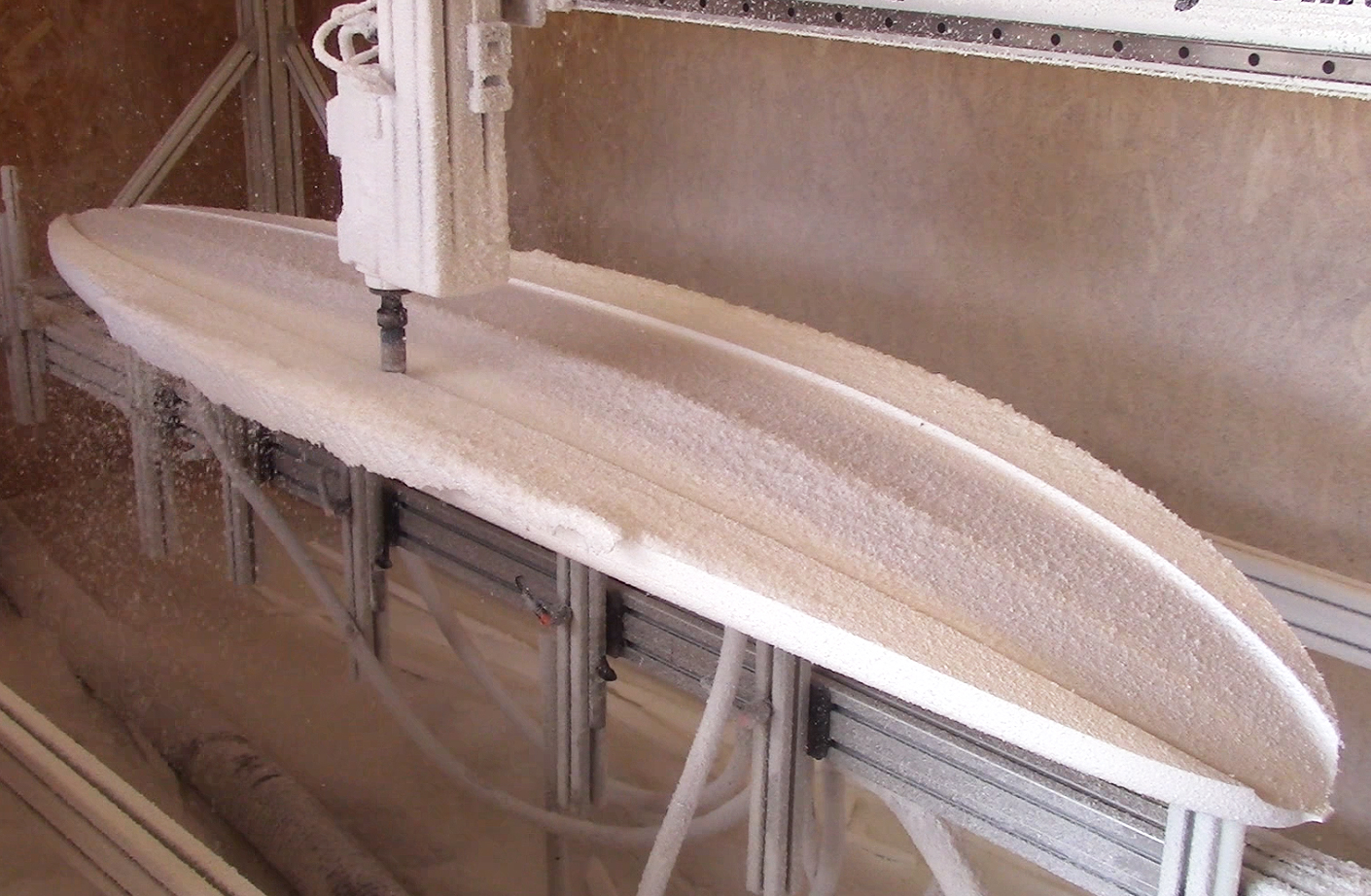

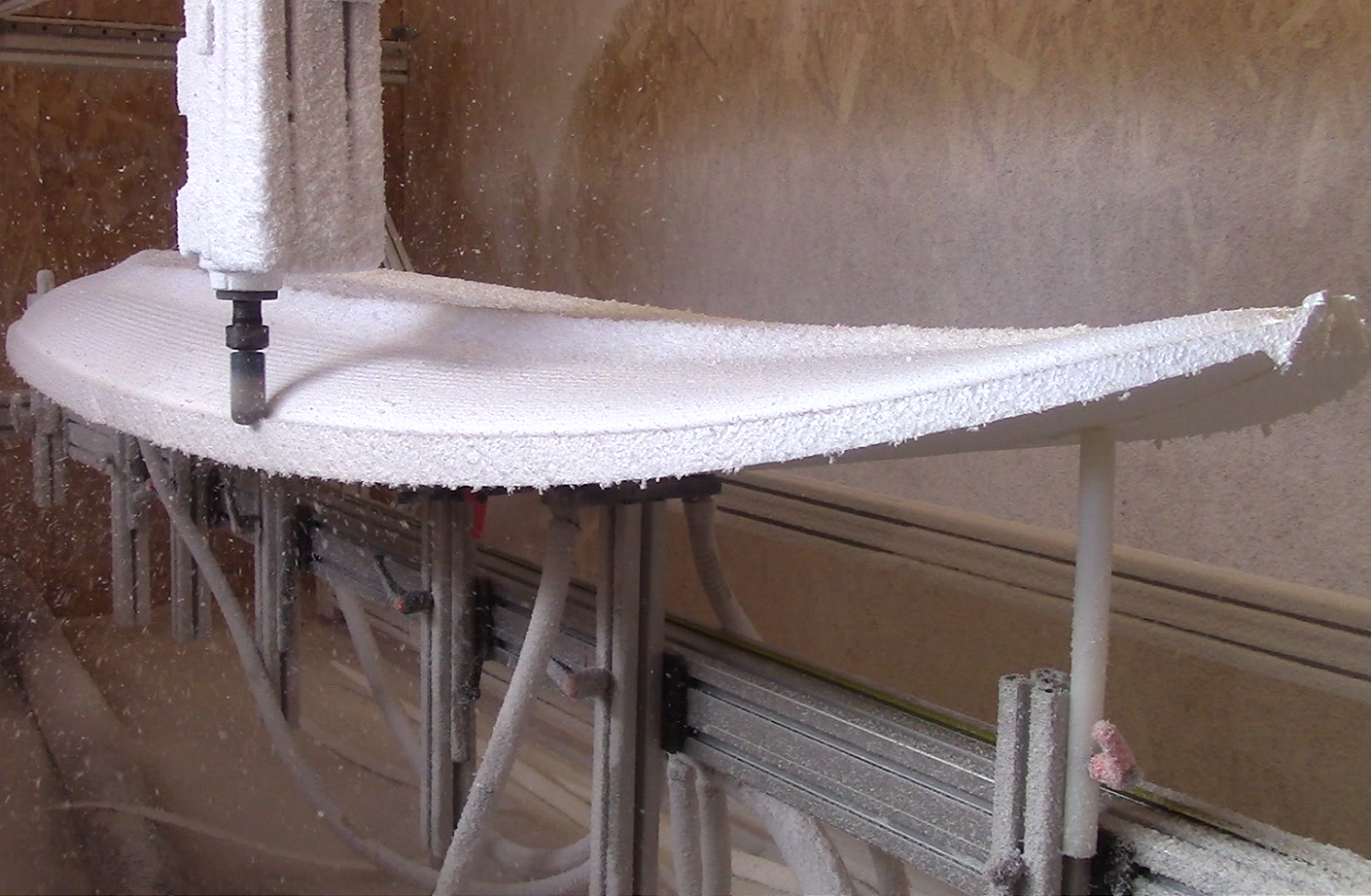

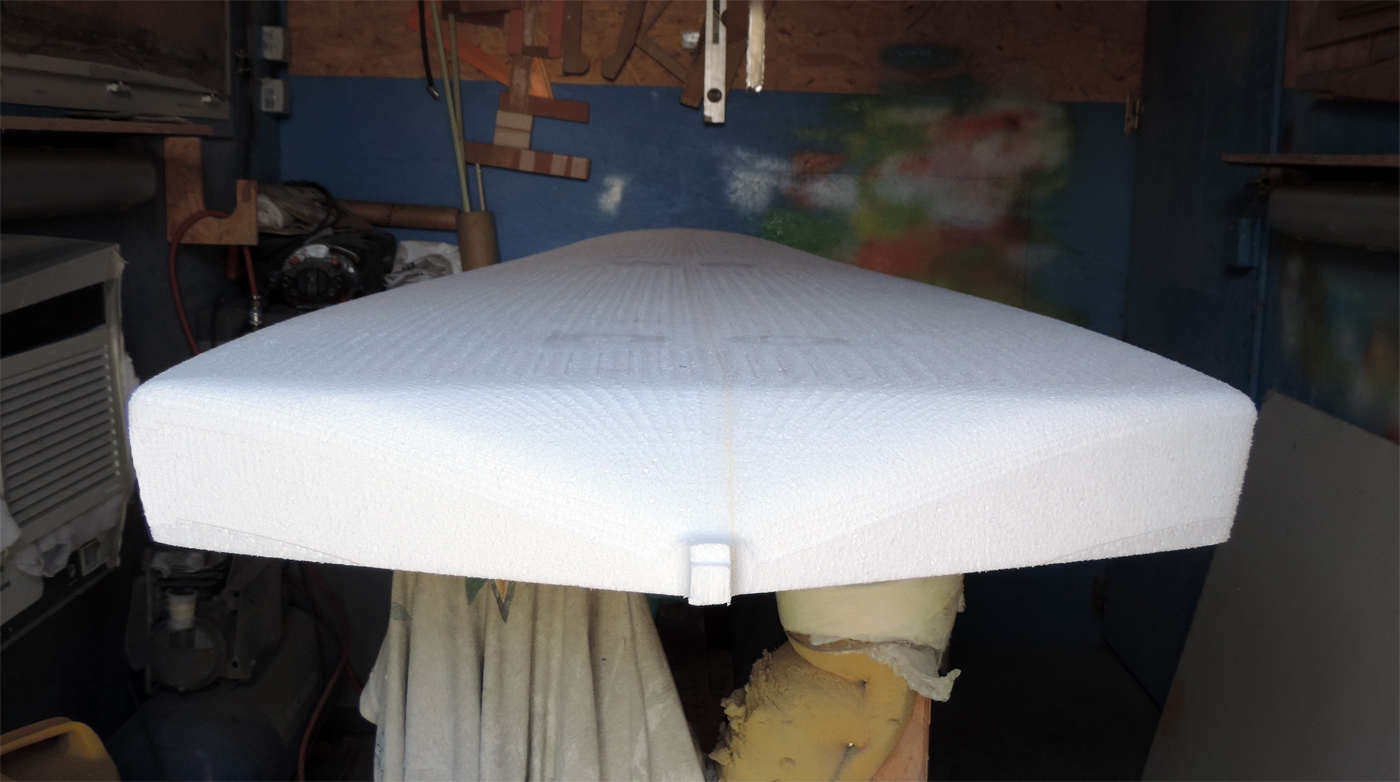

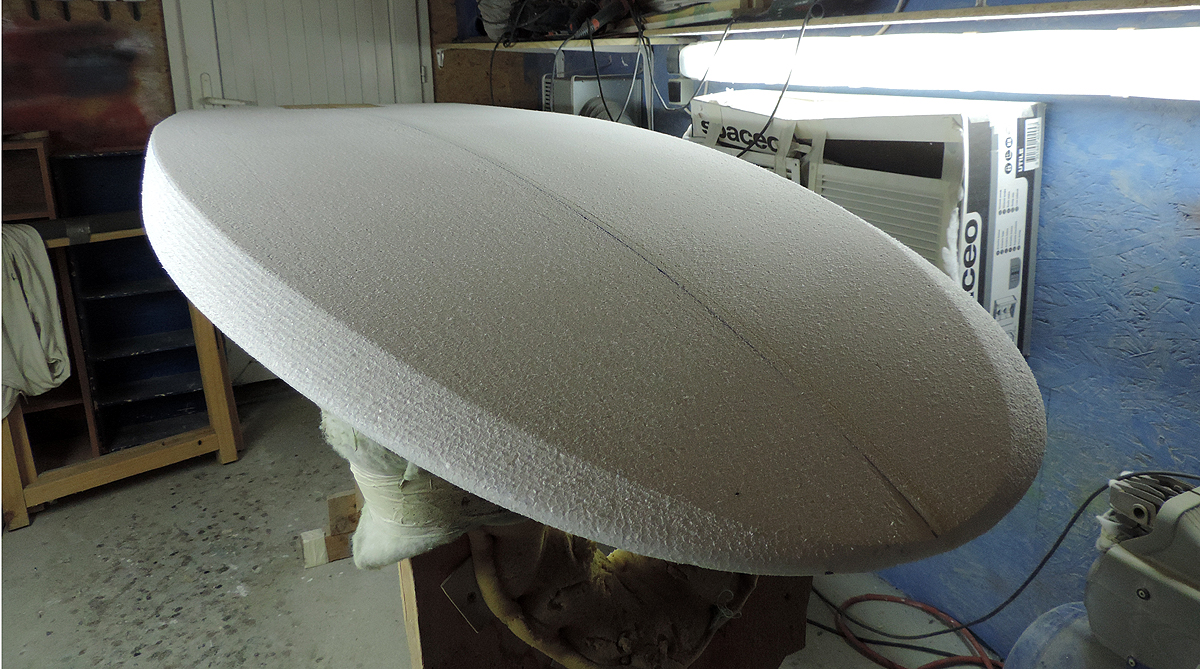

Préshapes CNC réalisés chez Marc Maugère de Slash Boards à Merlevenez (56)

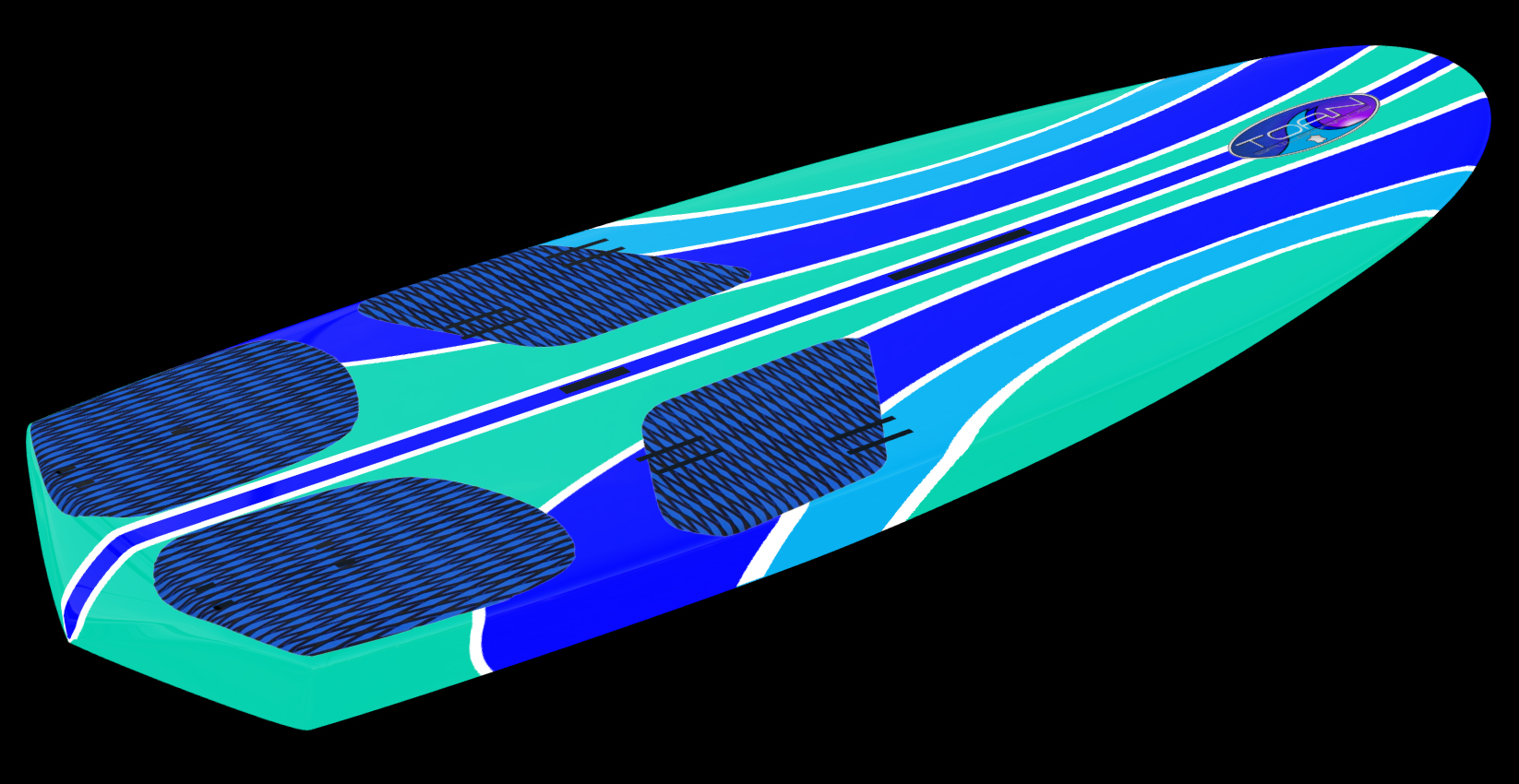

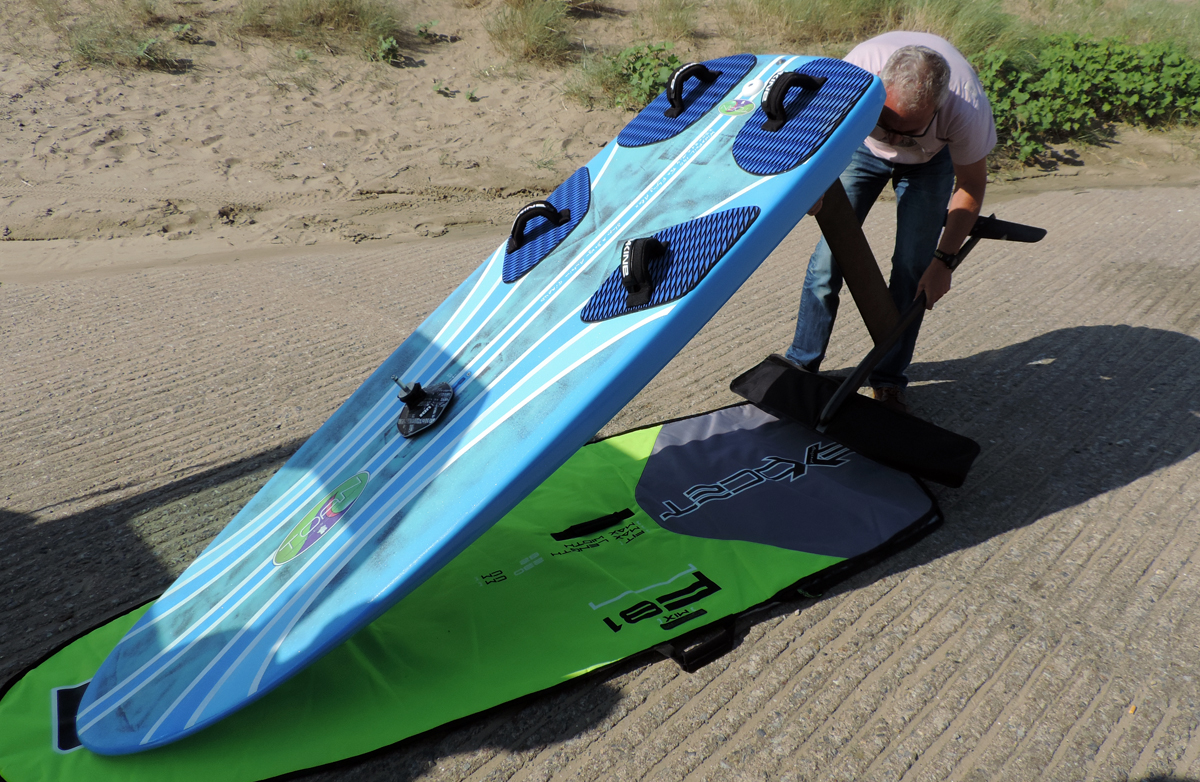

Windfoil 140 • 2018

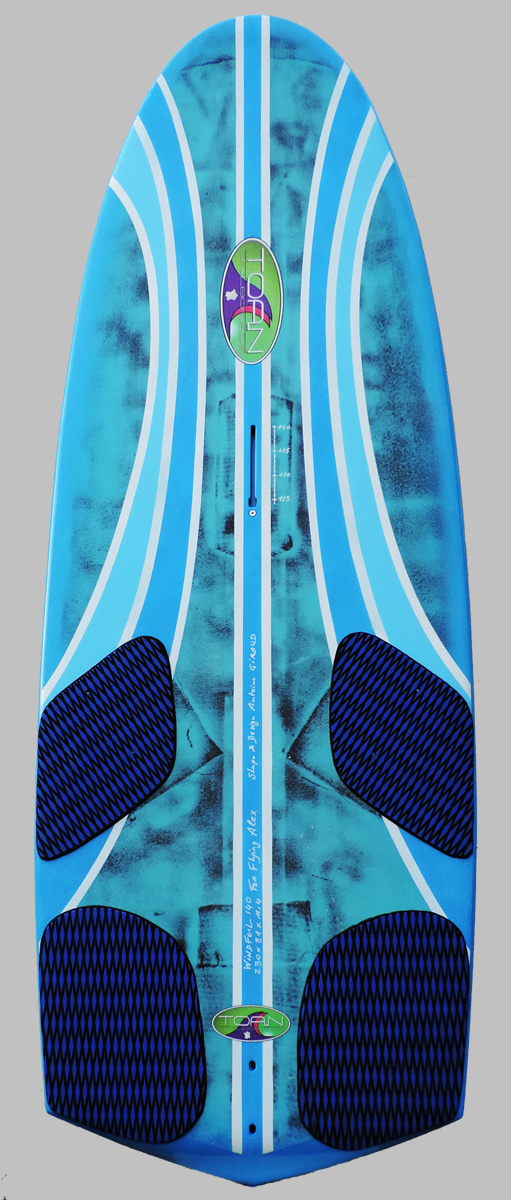

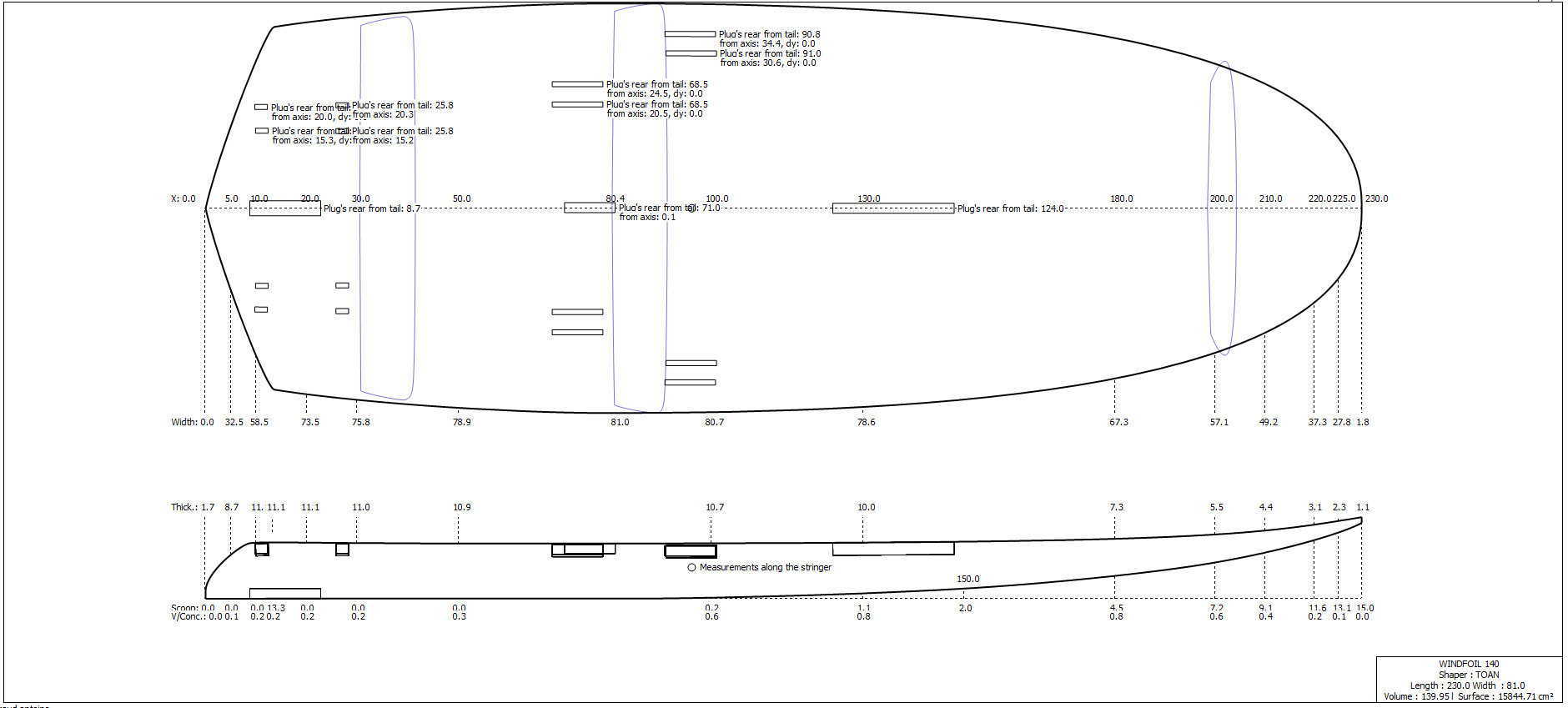

Windfoil 140 230*81*11 • Juin 2018

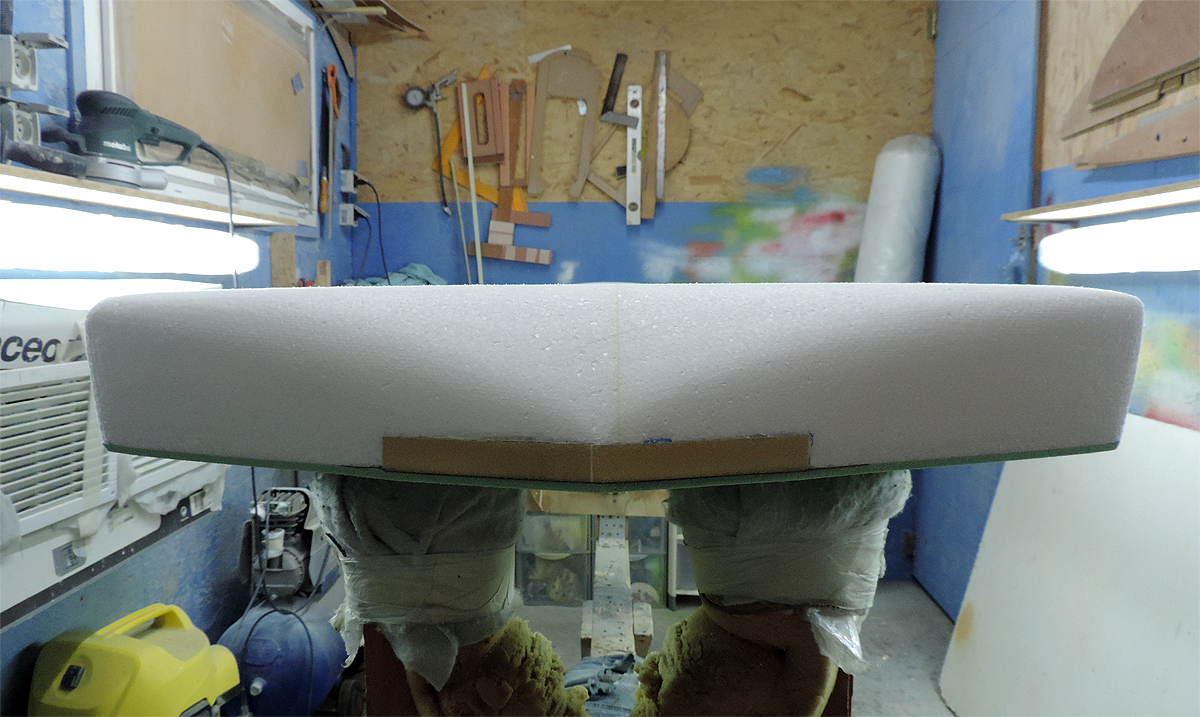

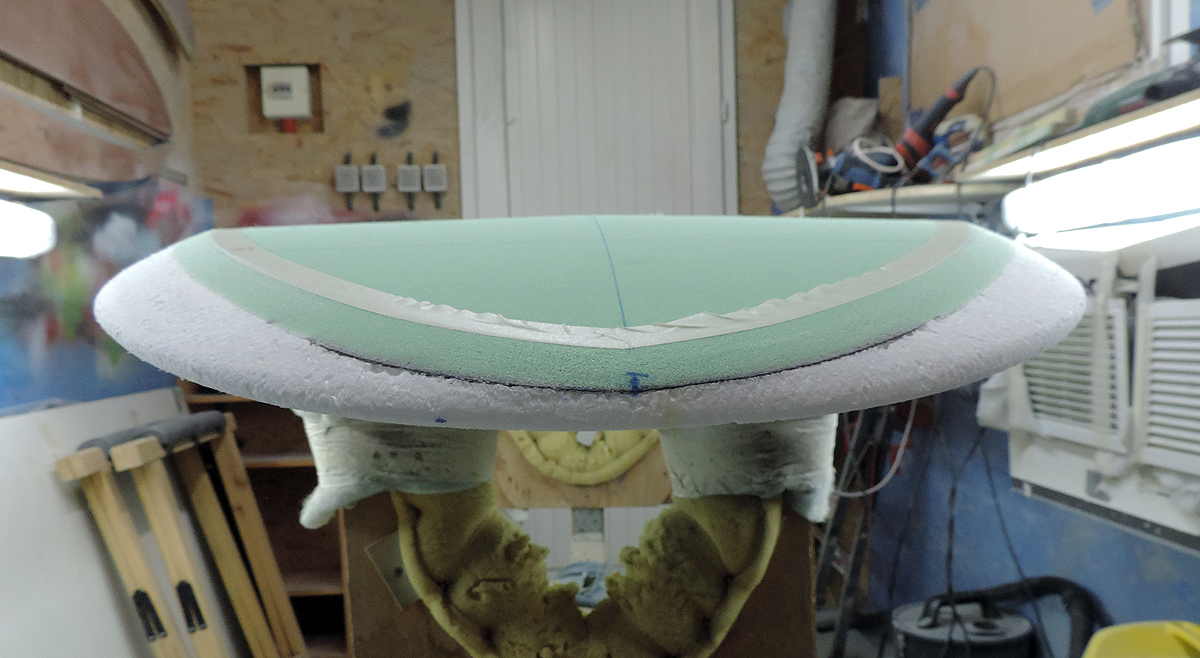

Programme: Windfoil avec un shape dédié. Pont très plat, rails très rentrants sur la partie avant, rocker tendu, carène avec un "V" prononcé sur l'avant, maître bau à 80 cm de l'arrière

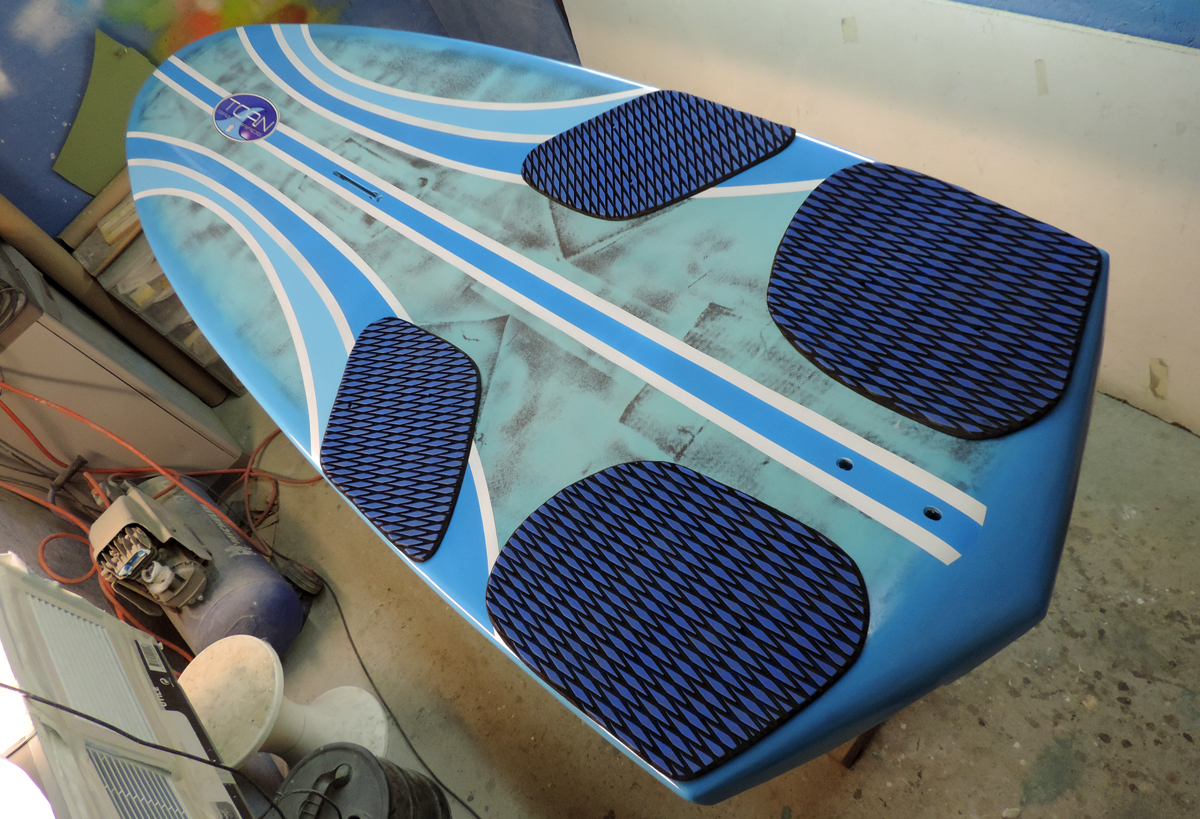

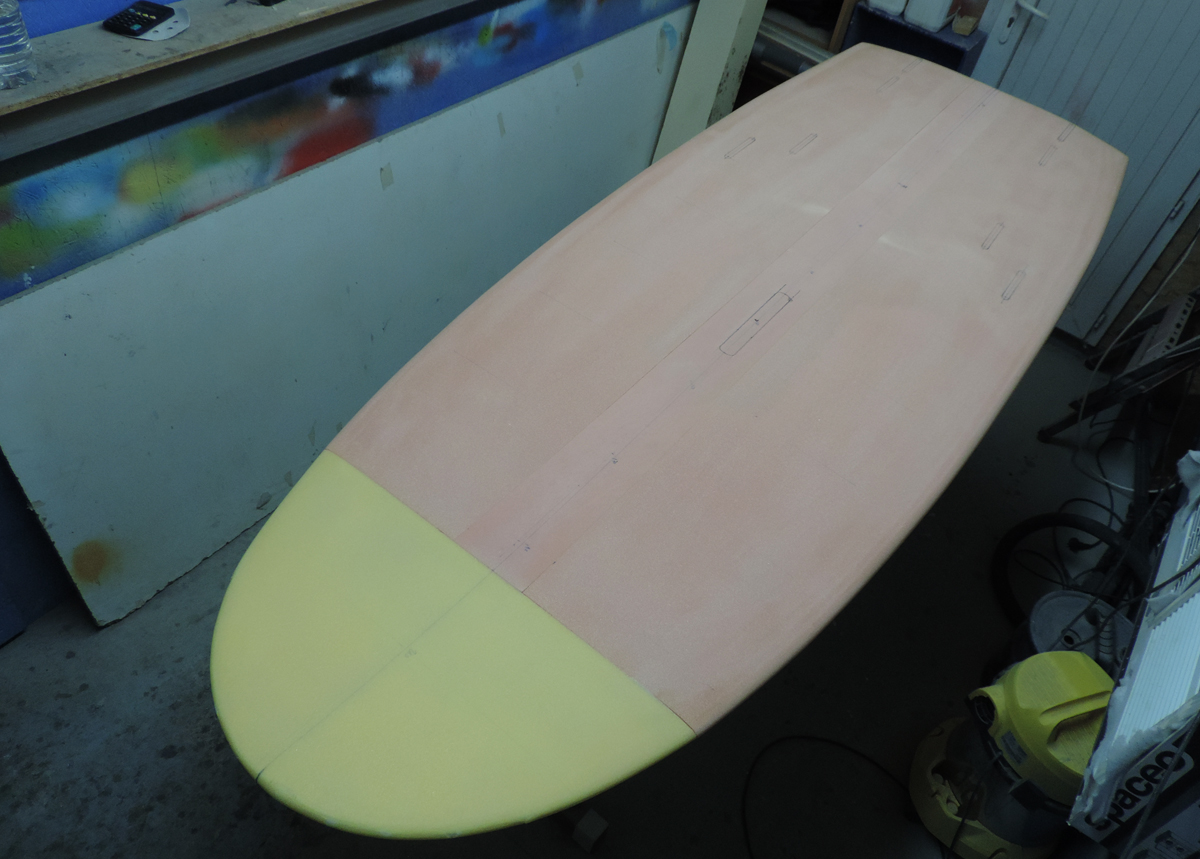

Pont :

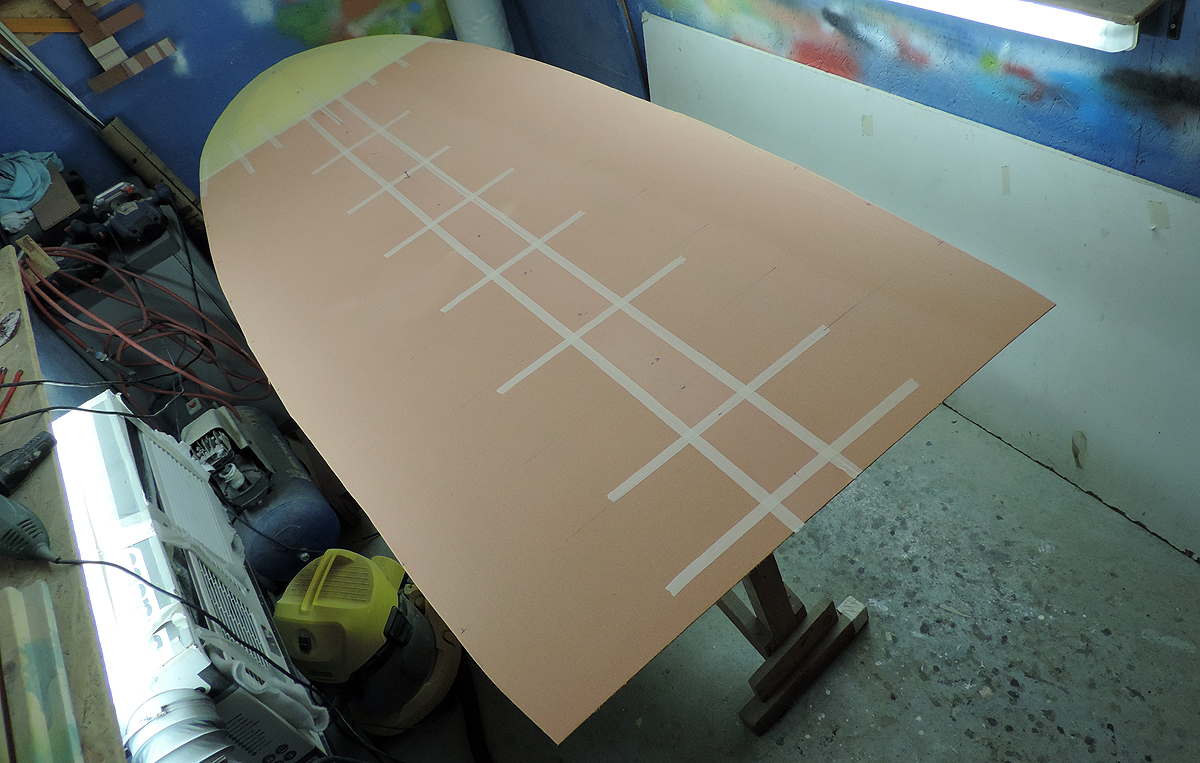

Blocage : verre 86gr/m2 + "Croix de Lorraine" Carbone 200gr/m2.

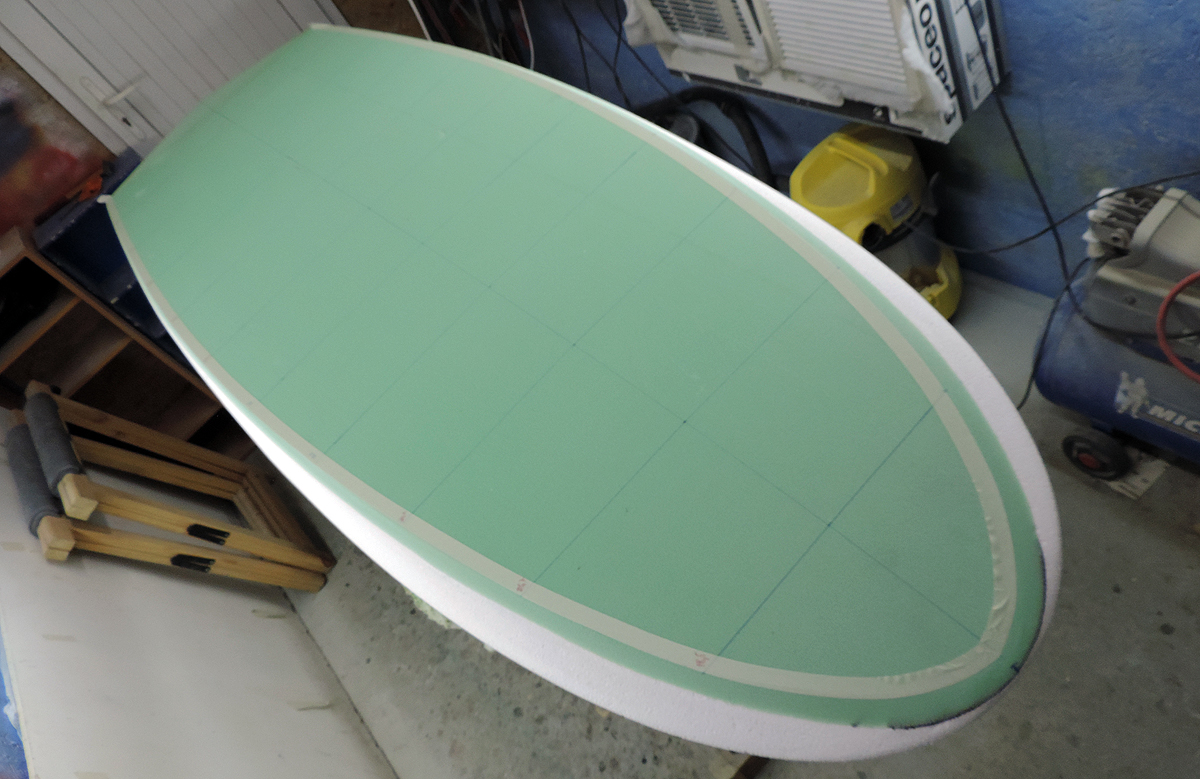

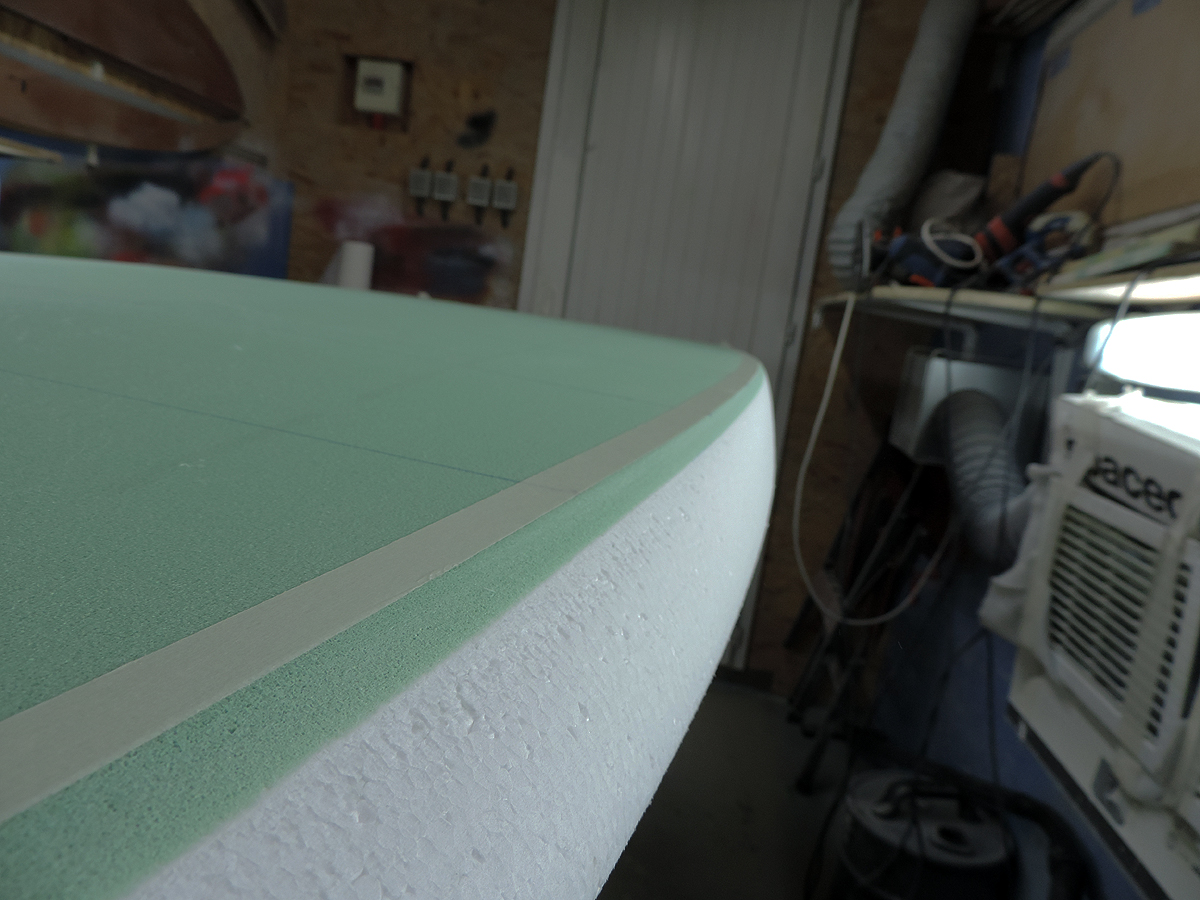

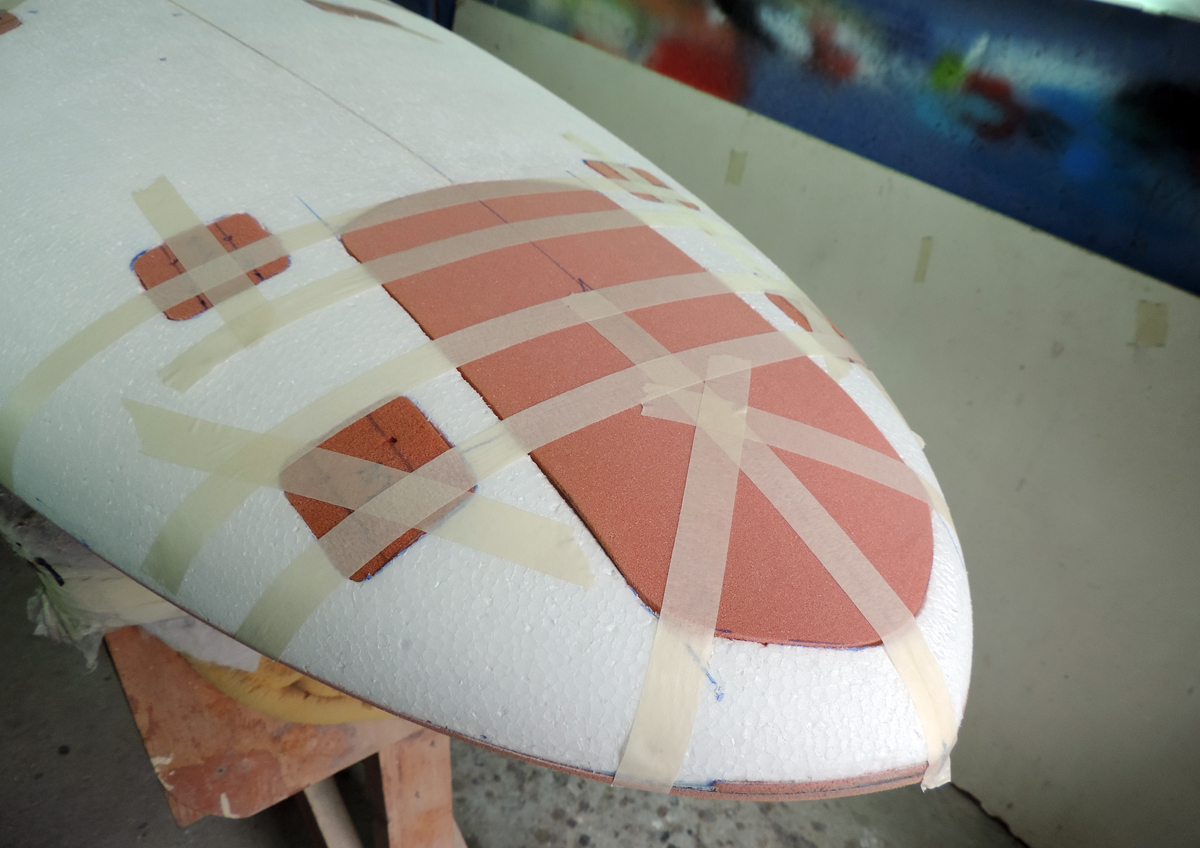

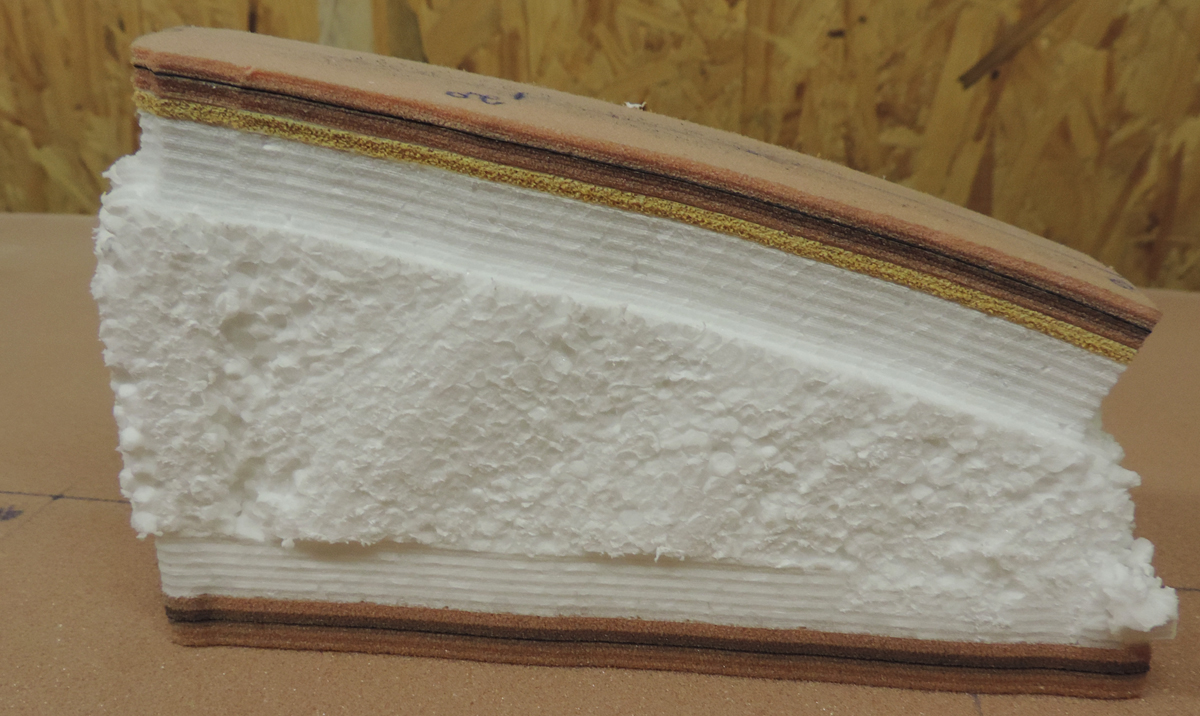

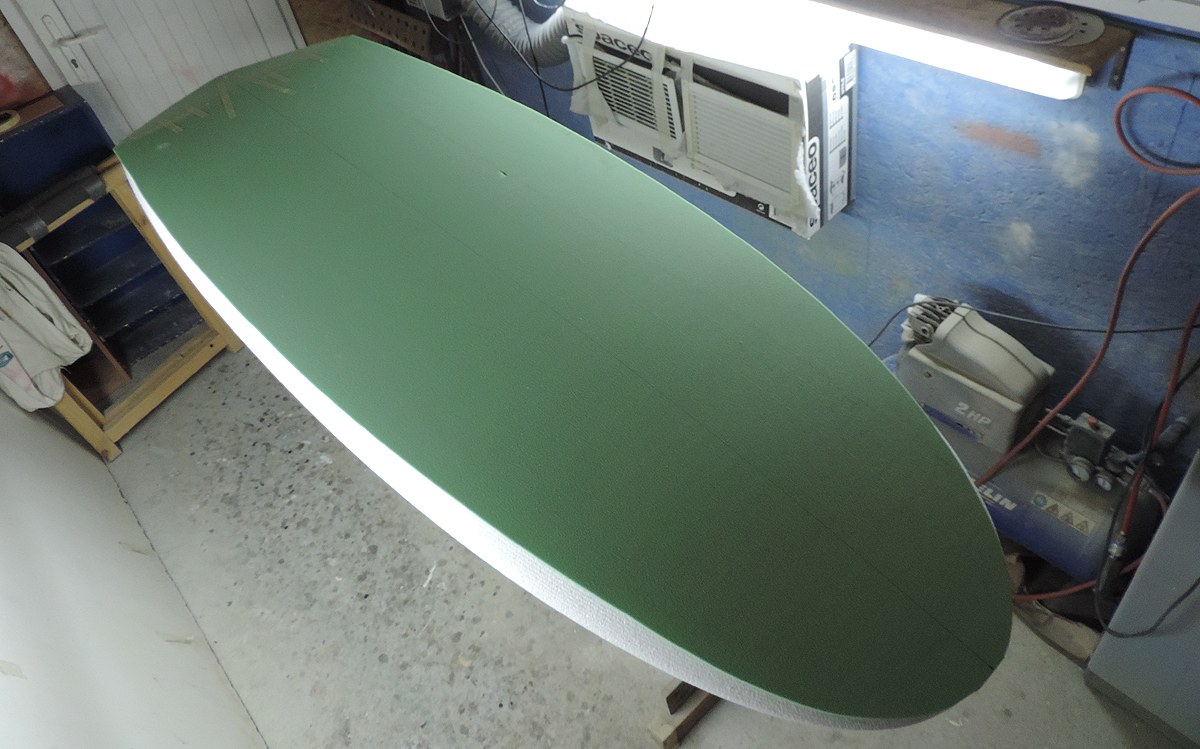

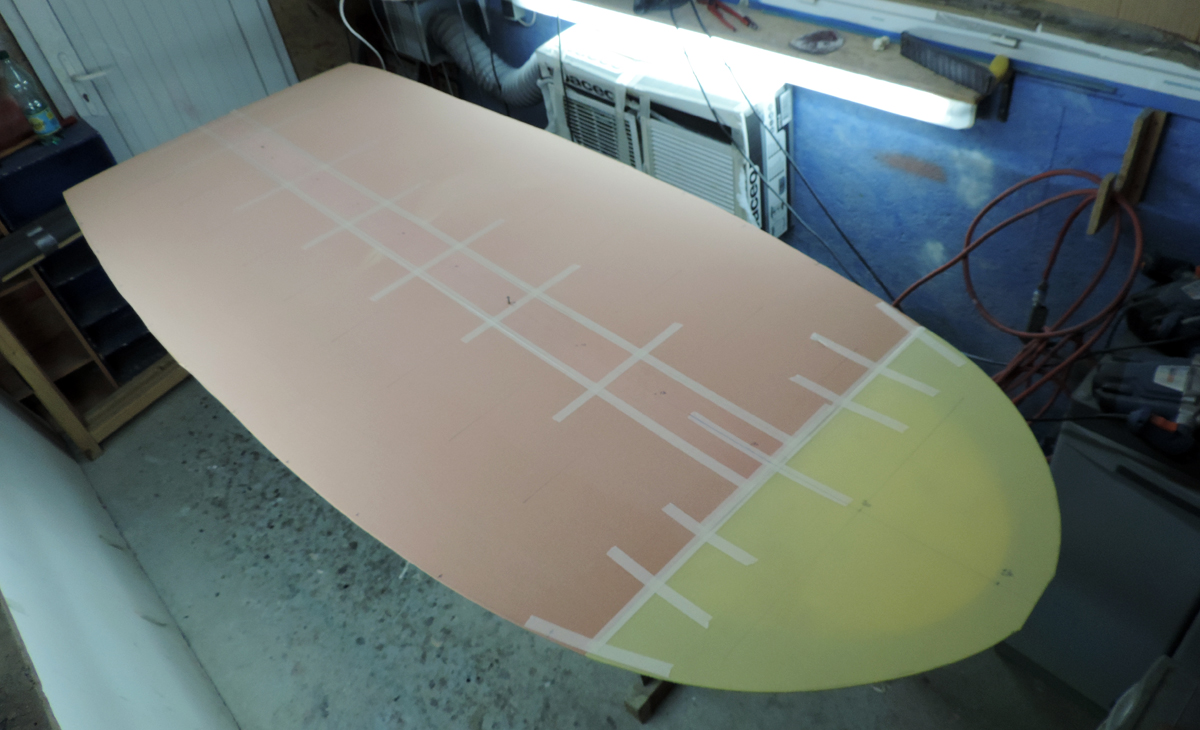

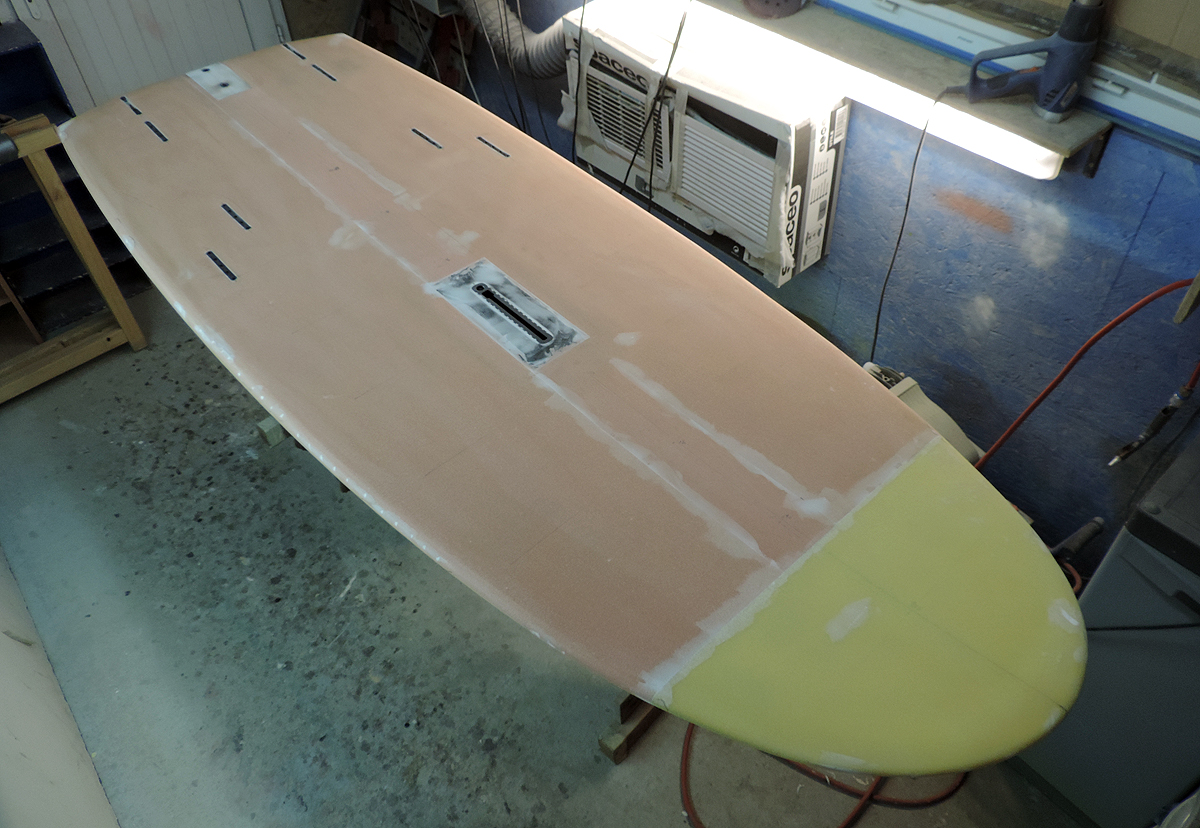

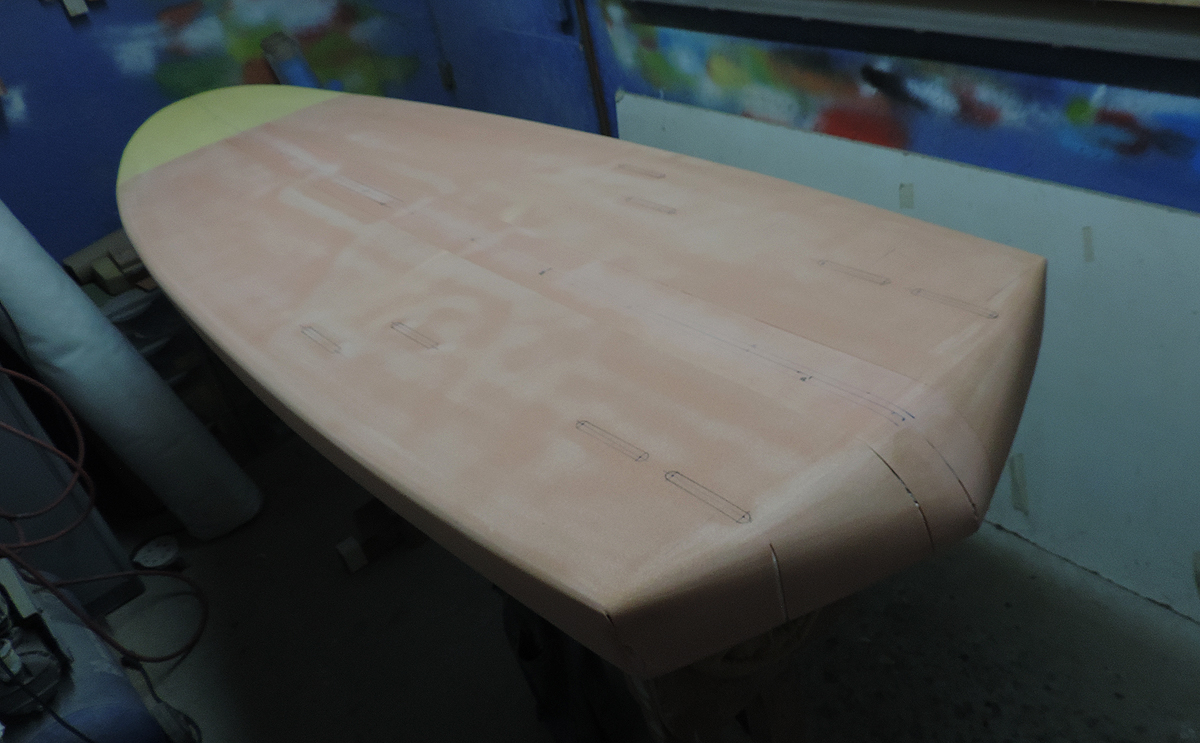

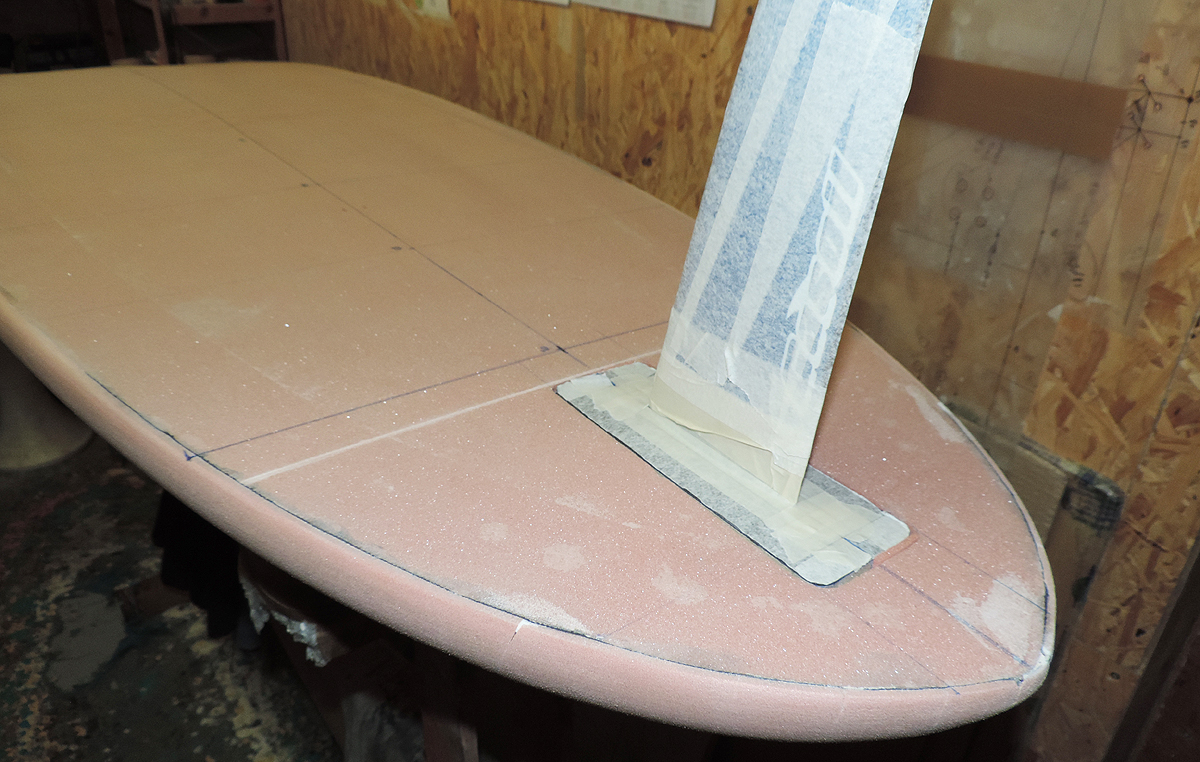

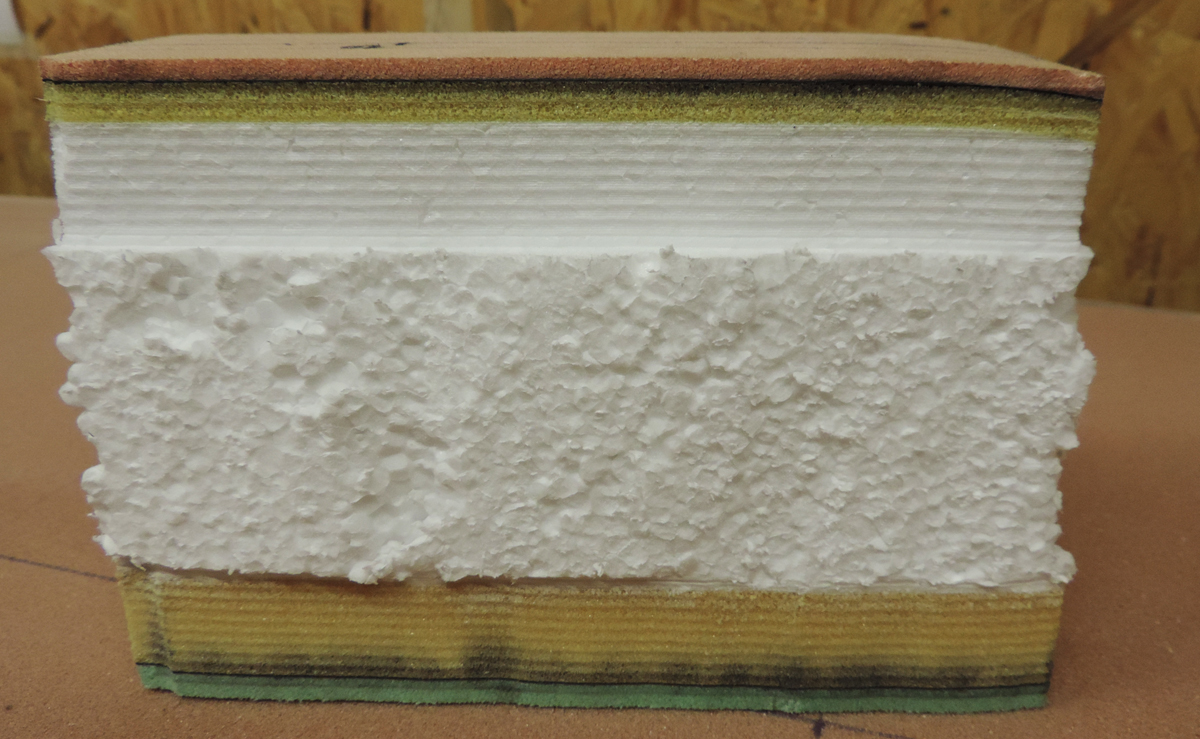

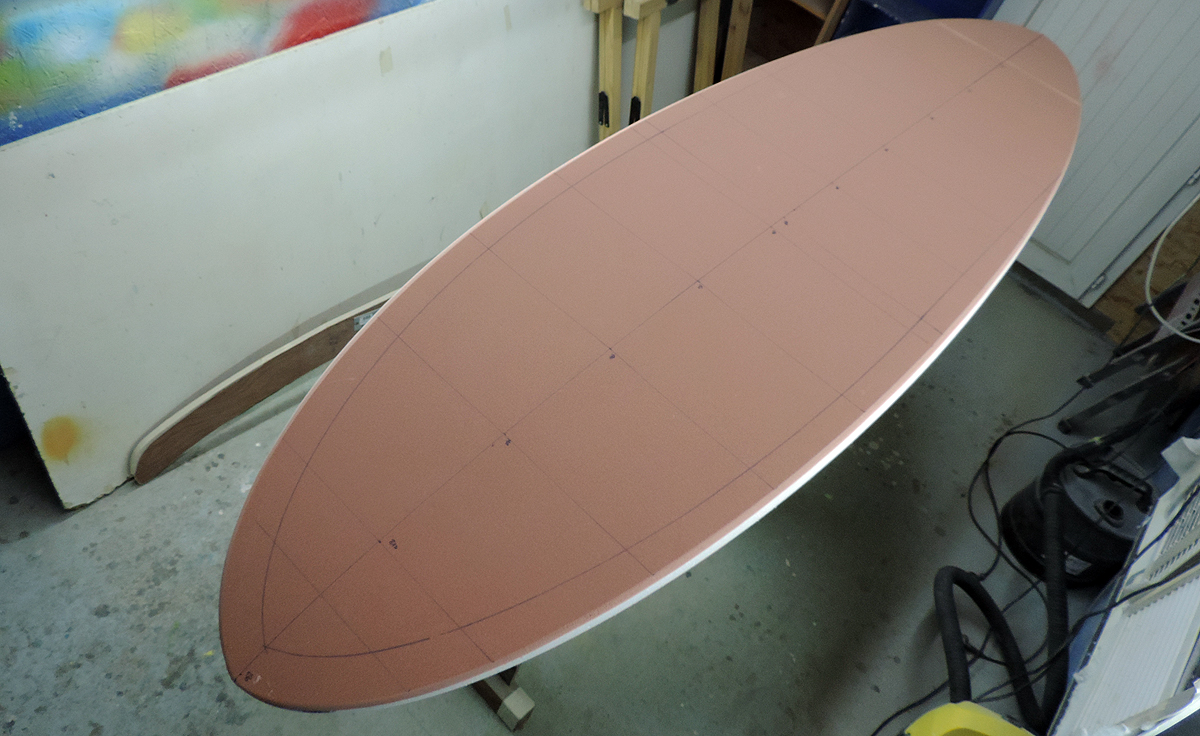

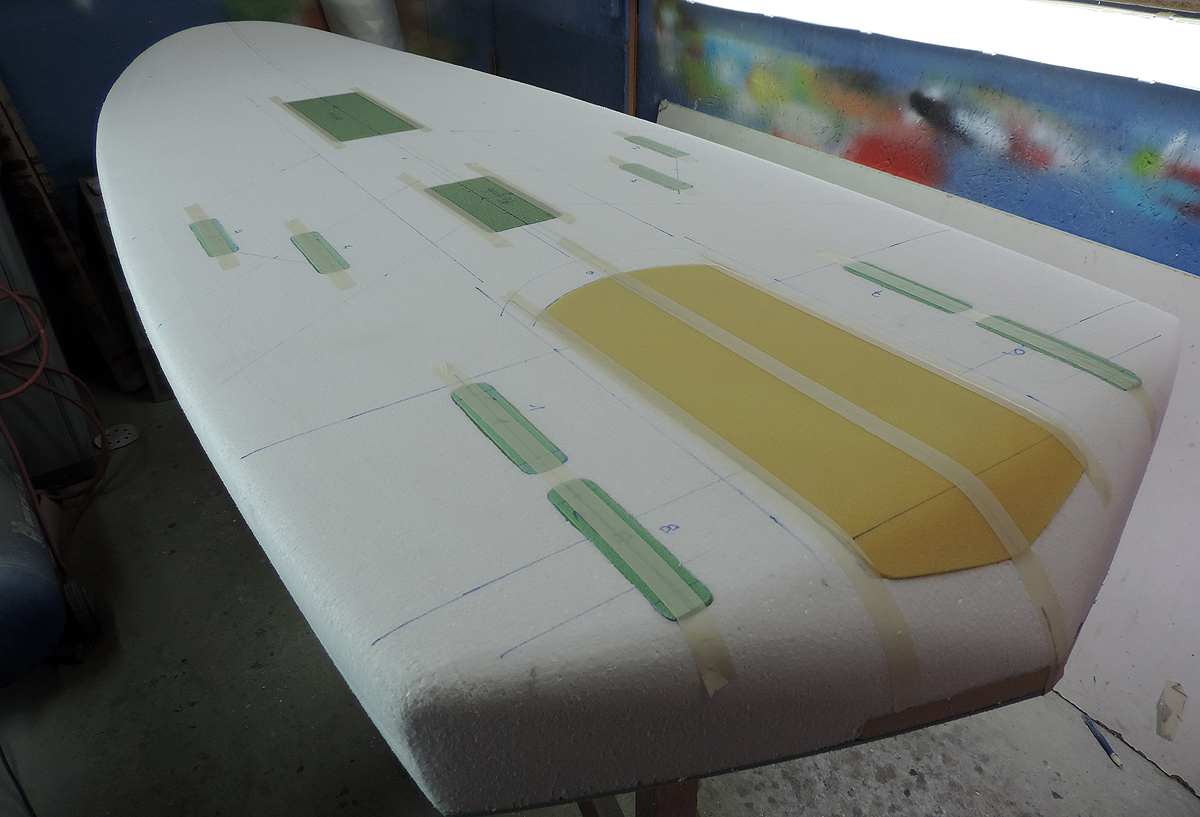

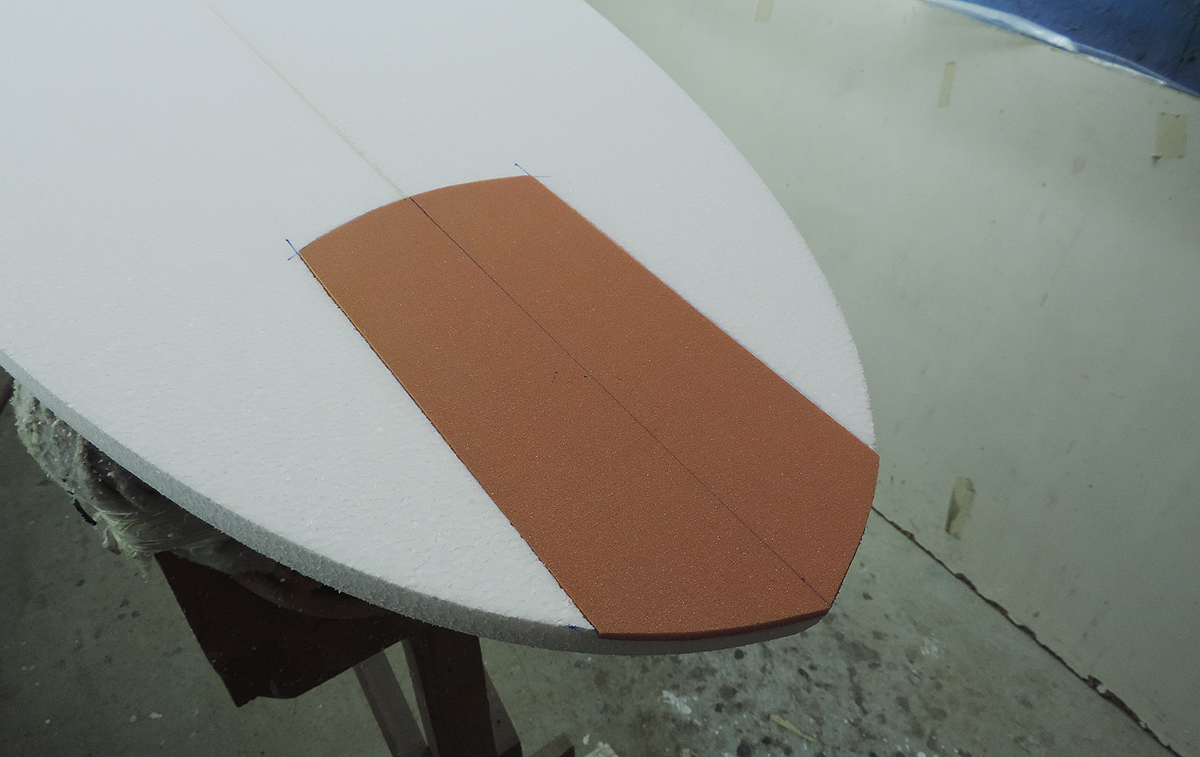

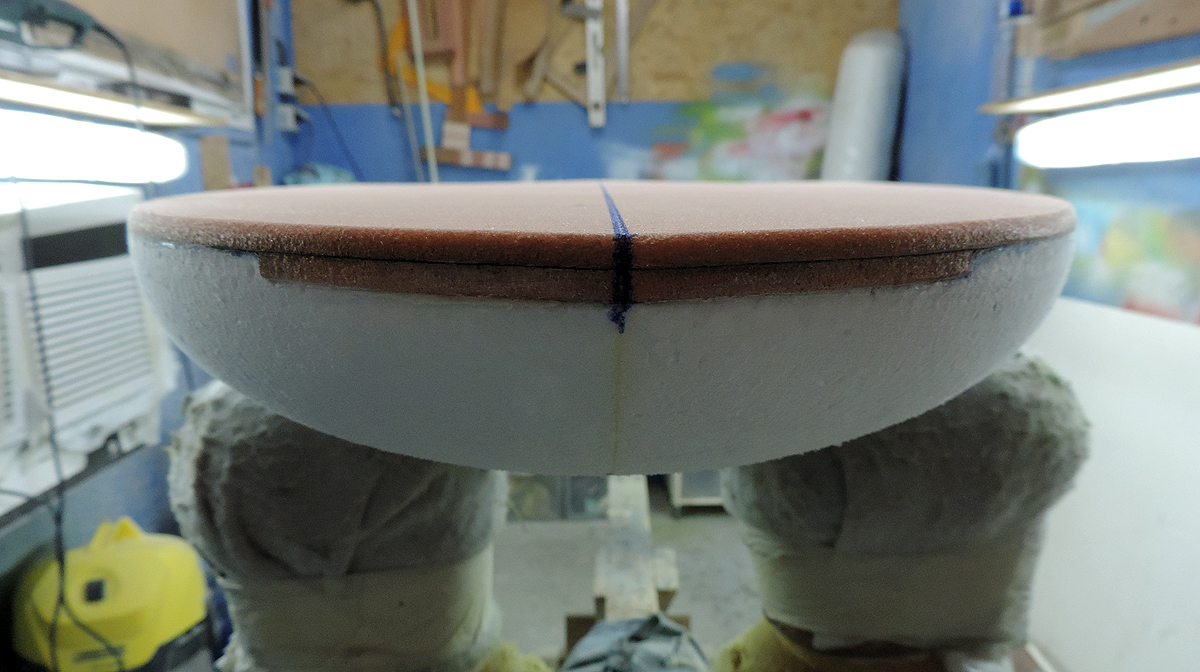

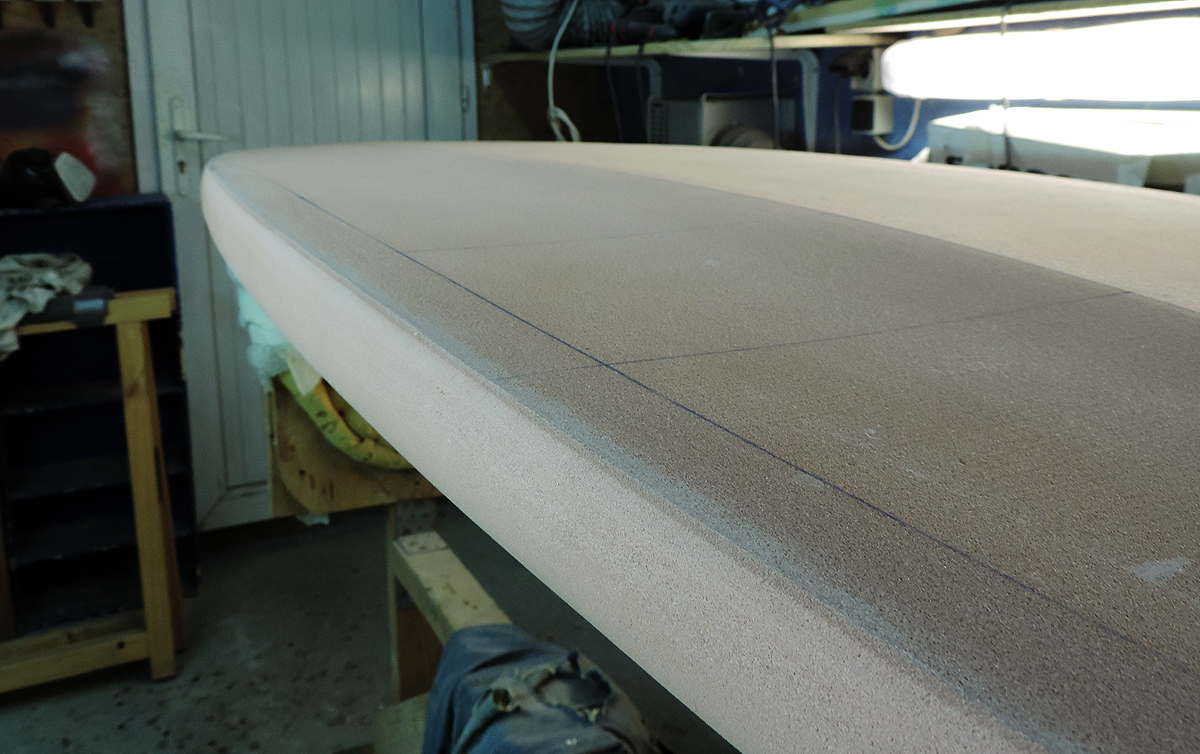

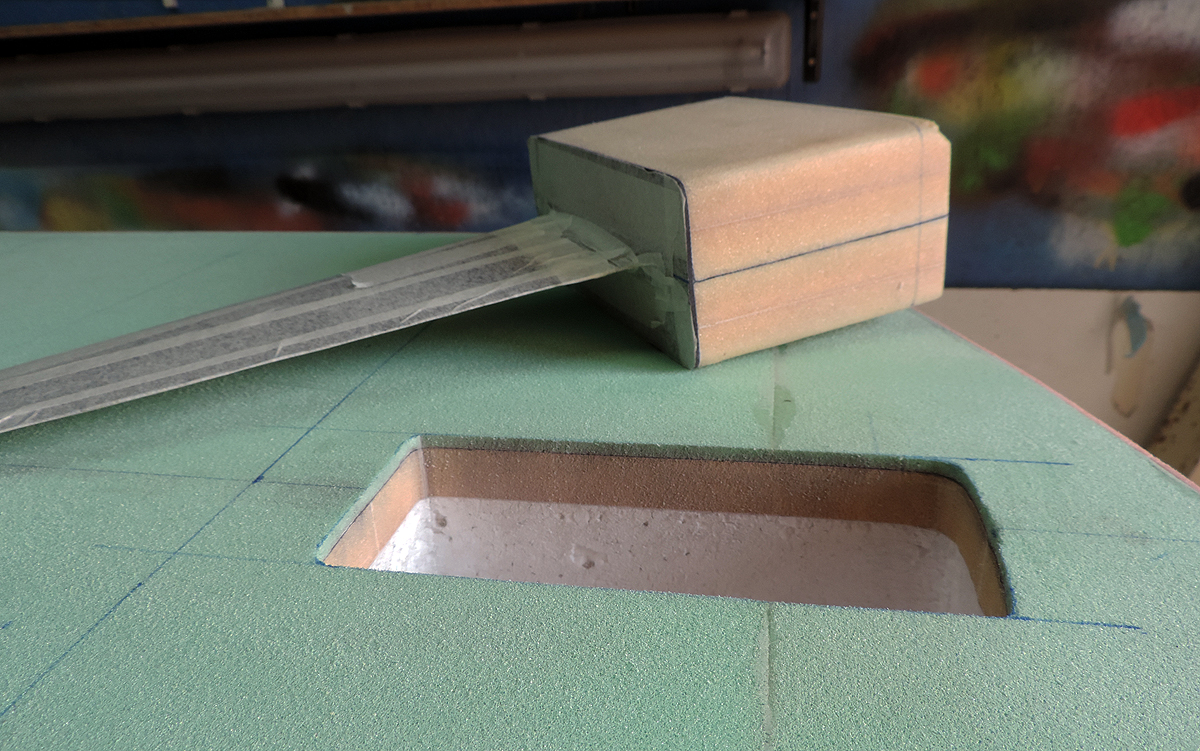

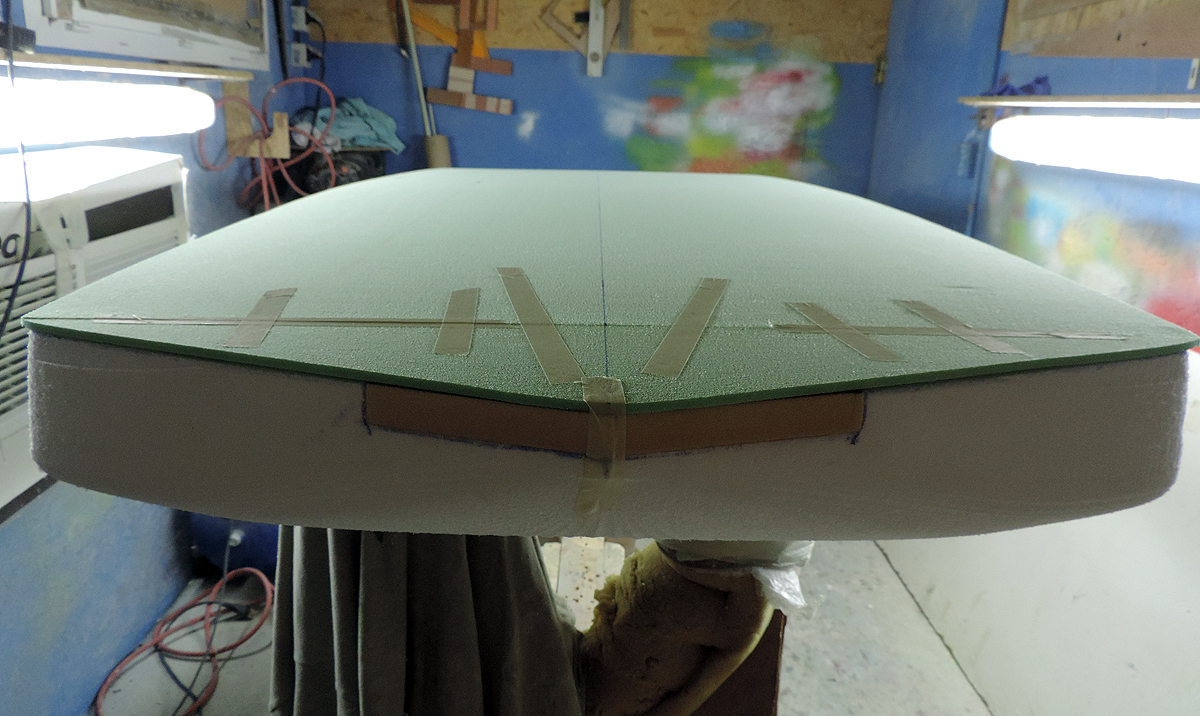

Sandwich : PVC 3mm 90kg/m3 + triple sandwich local 2 x 3mm 100 kg/m3 pour le box d'aileron

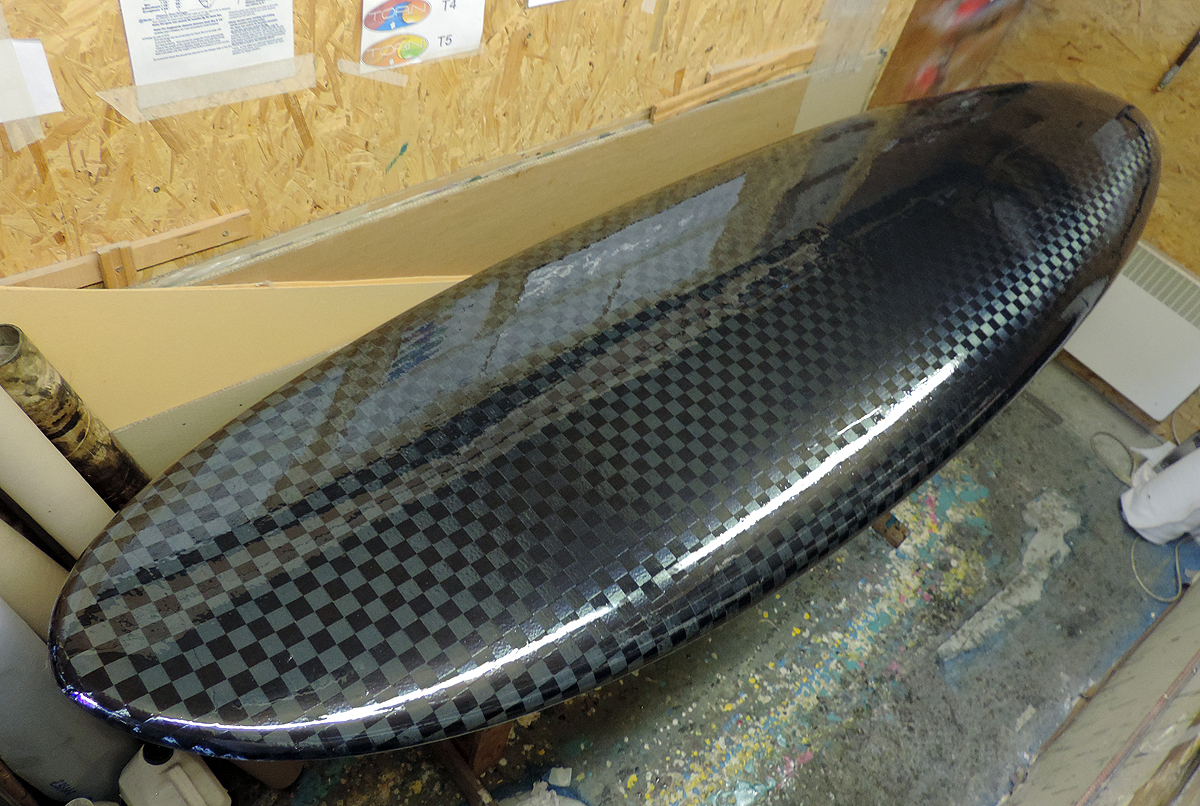

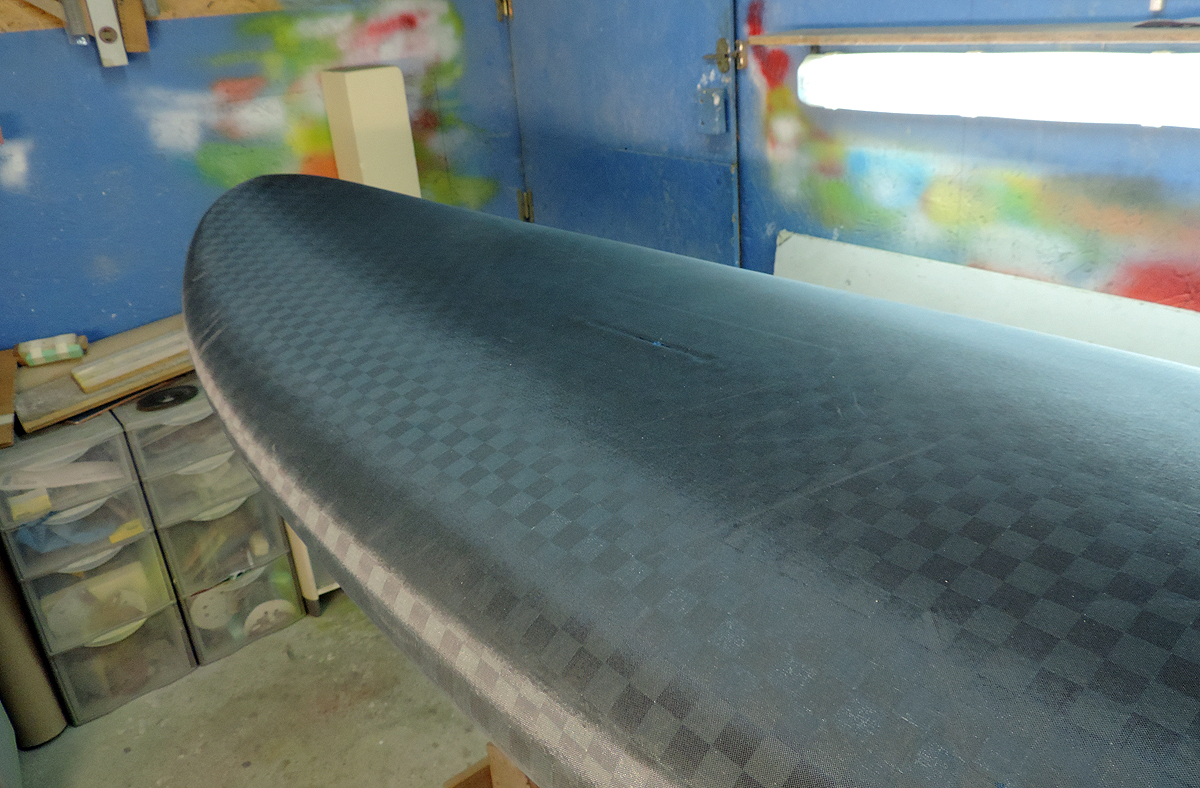

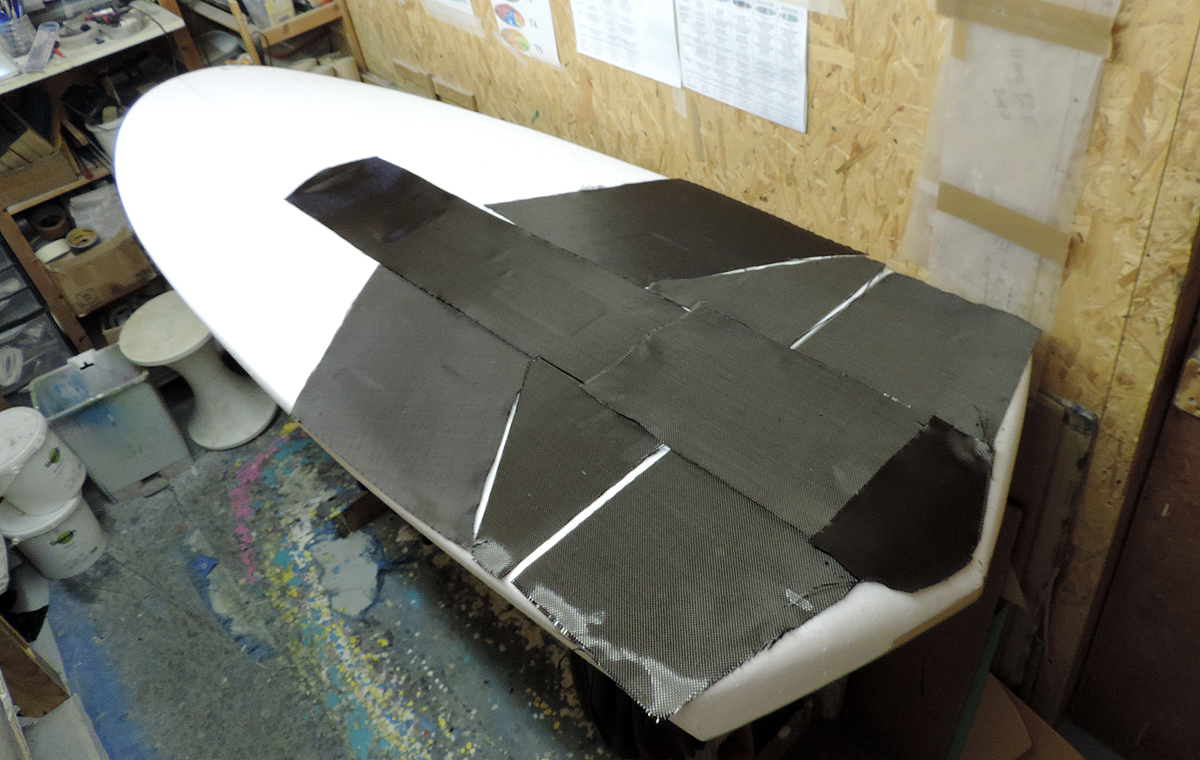

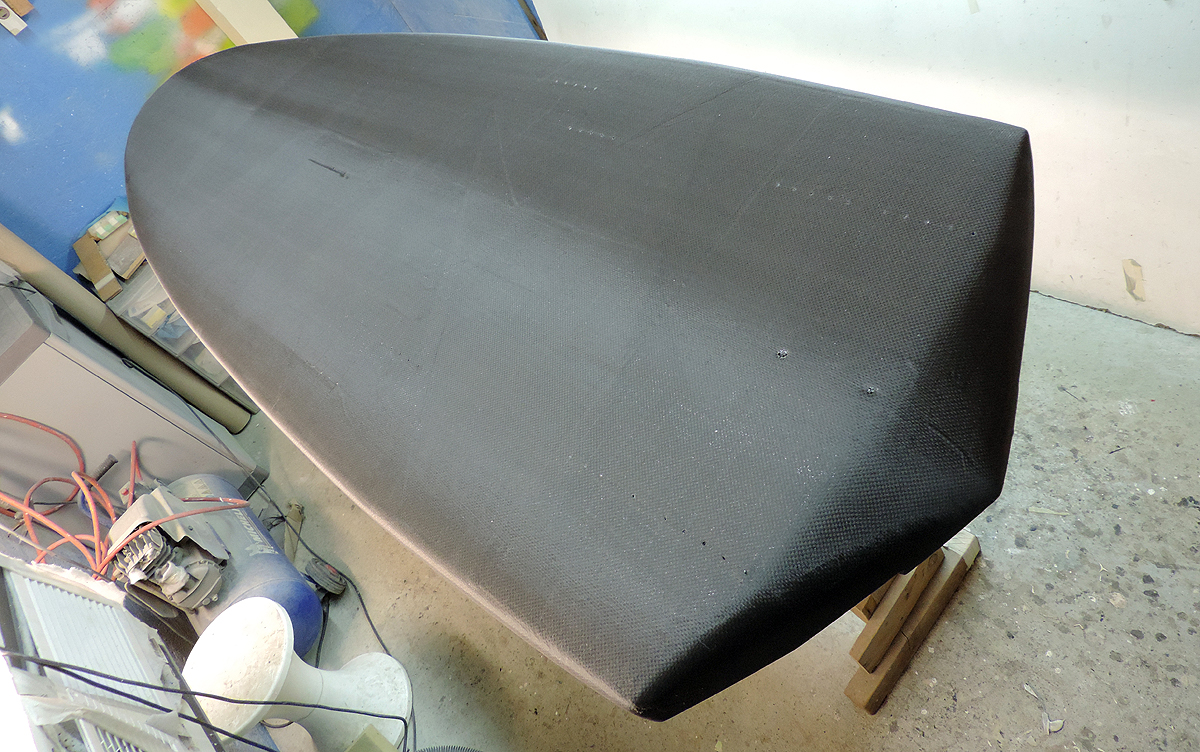

Strat extérieure : Carbone taffetas 160 gr/m2, renfort Carbone 200 gr/m2 pour le box d'aileron + Pied de mât + pieds

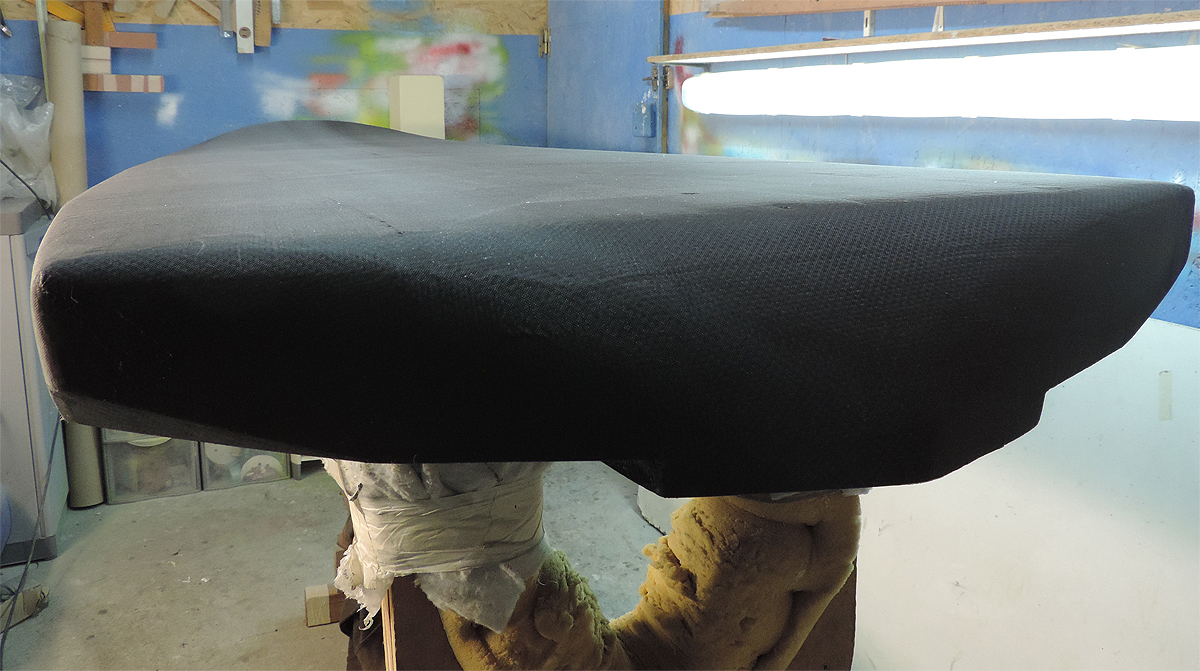

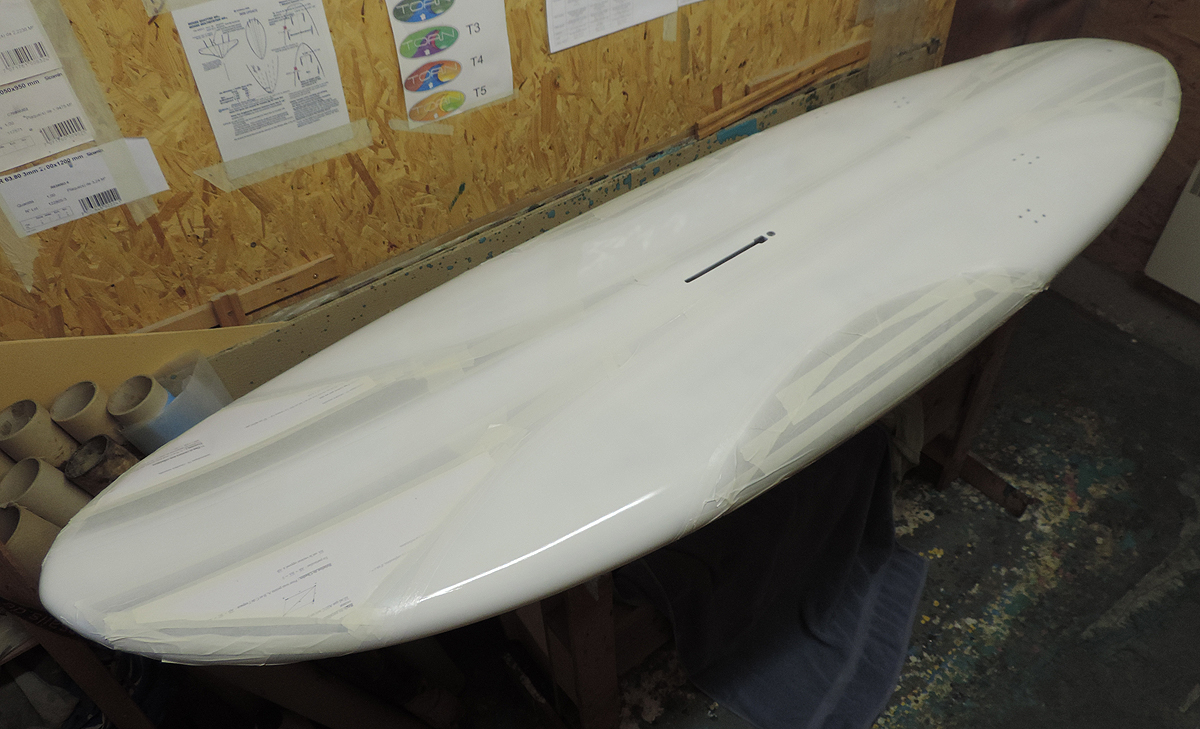

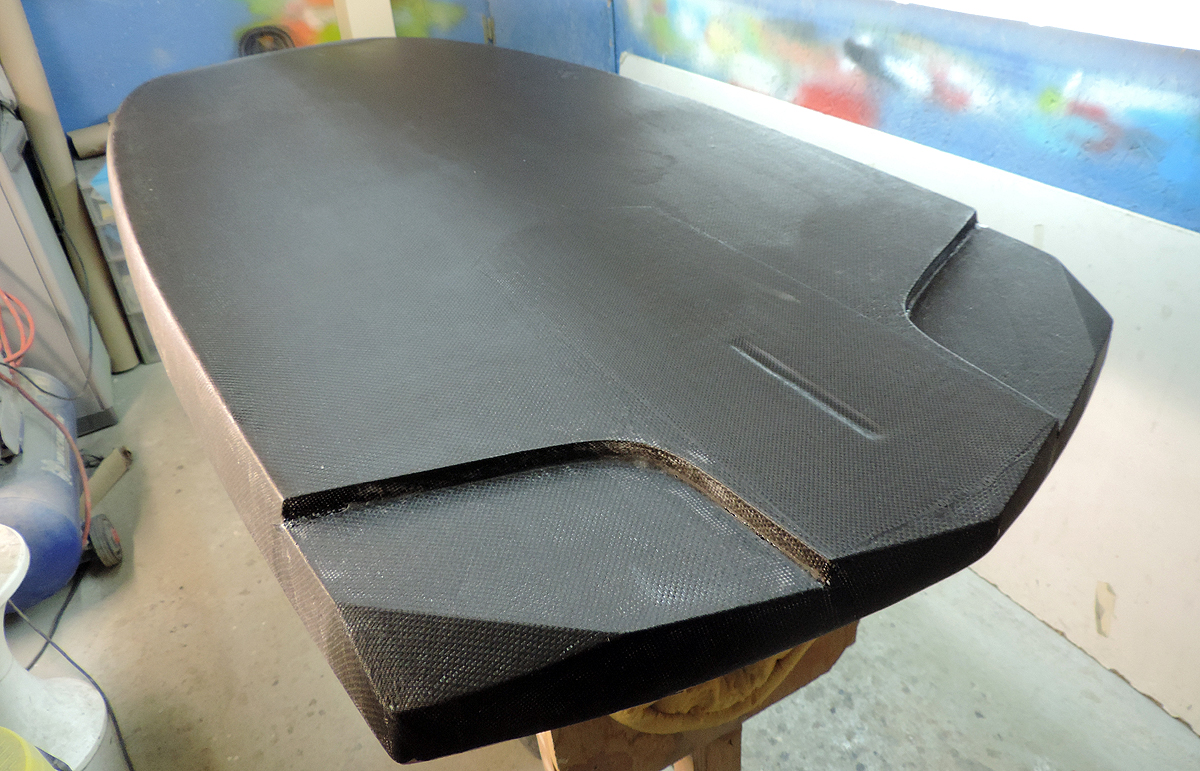

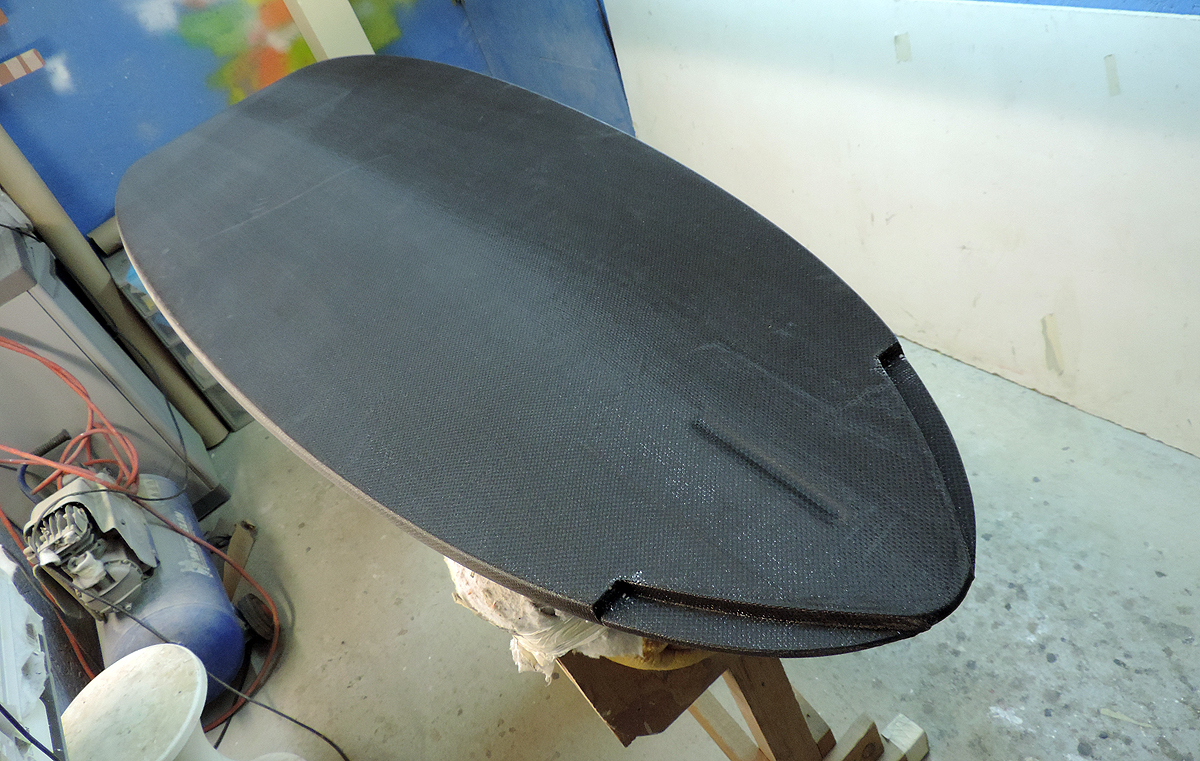

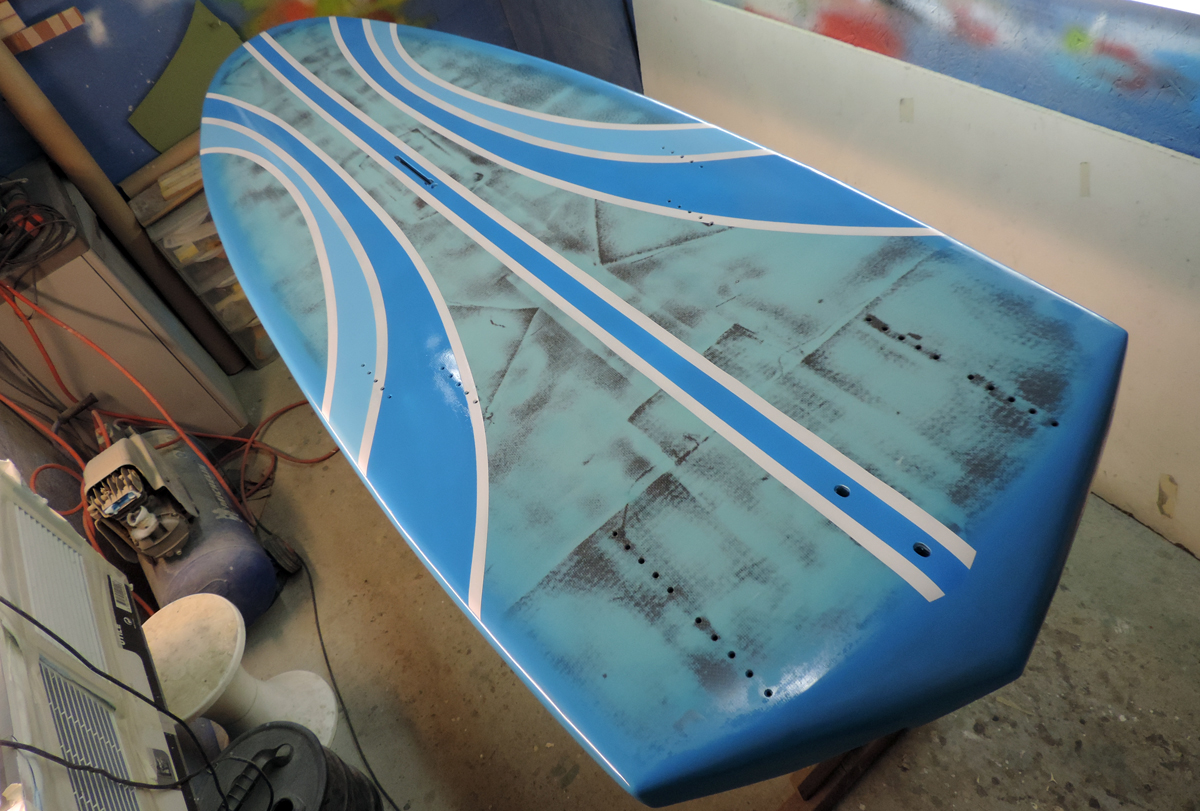

Carène :

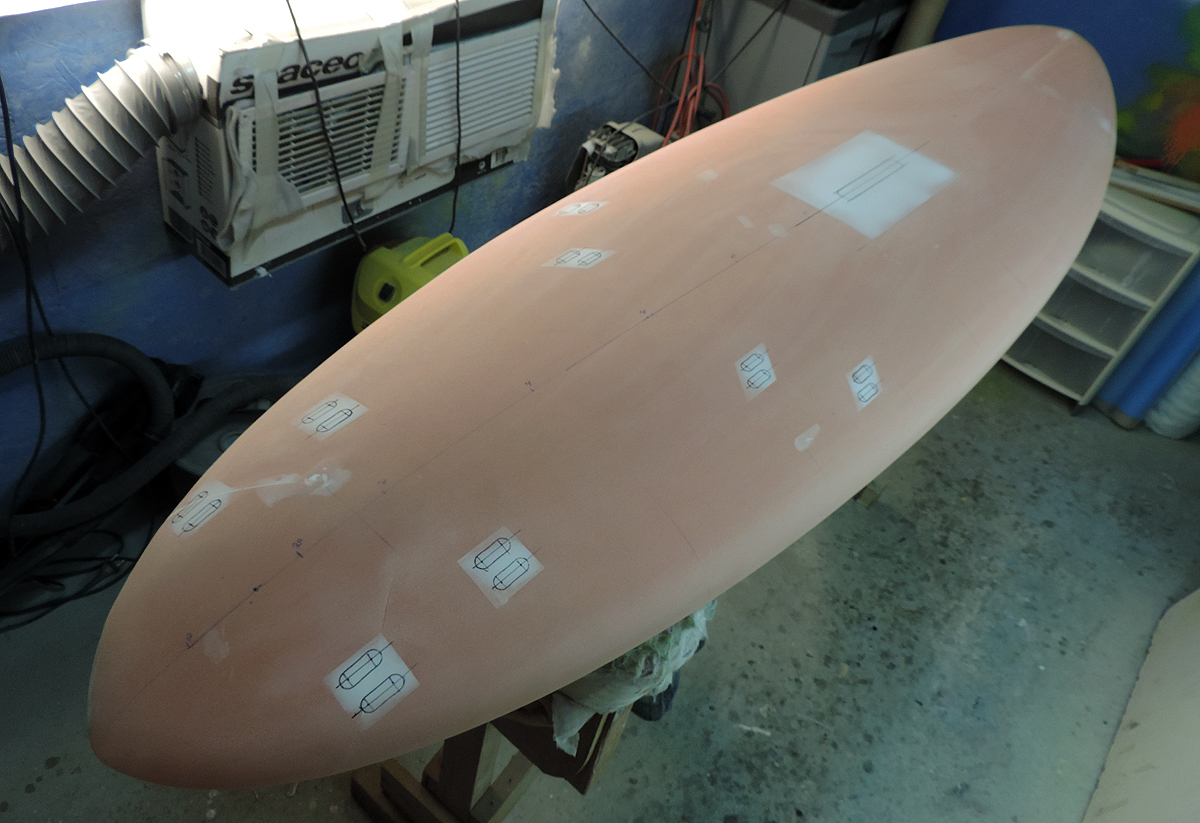

Blocage : 1 x verre 86gr/m2 + renfort carbone 200 gr/m2

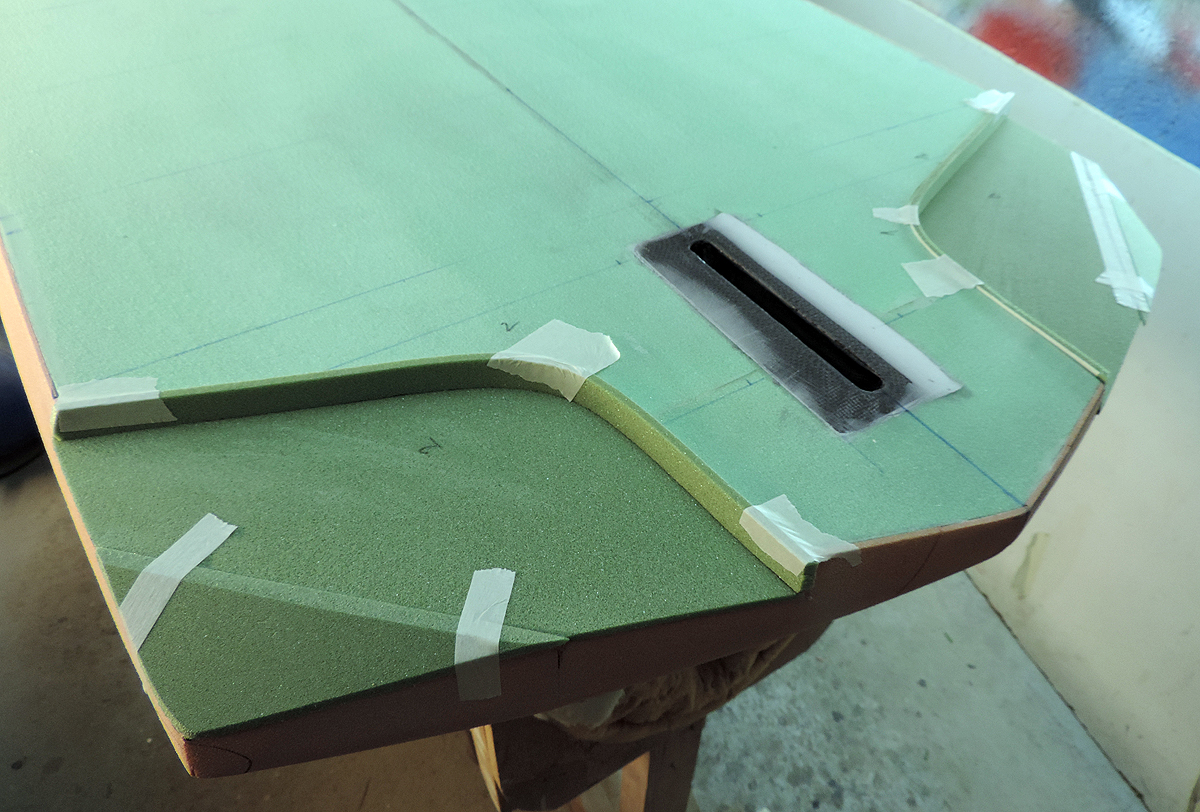

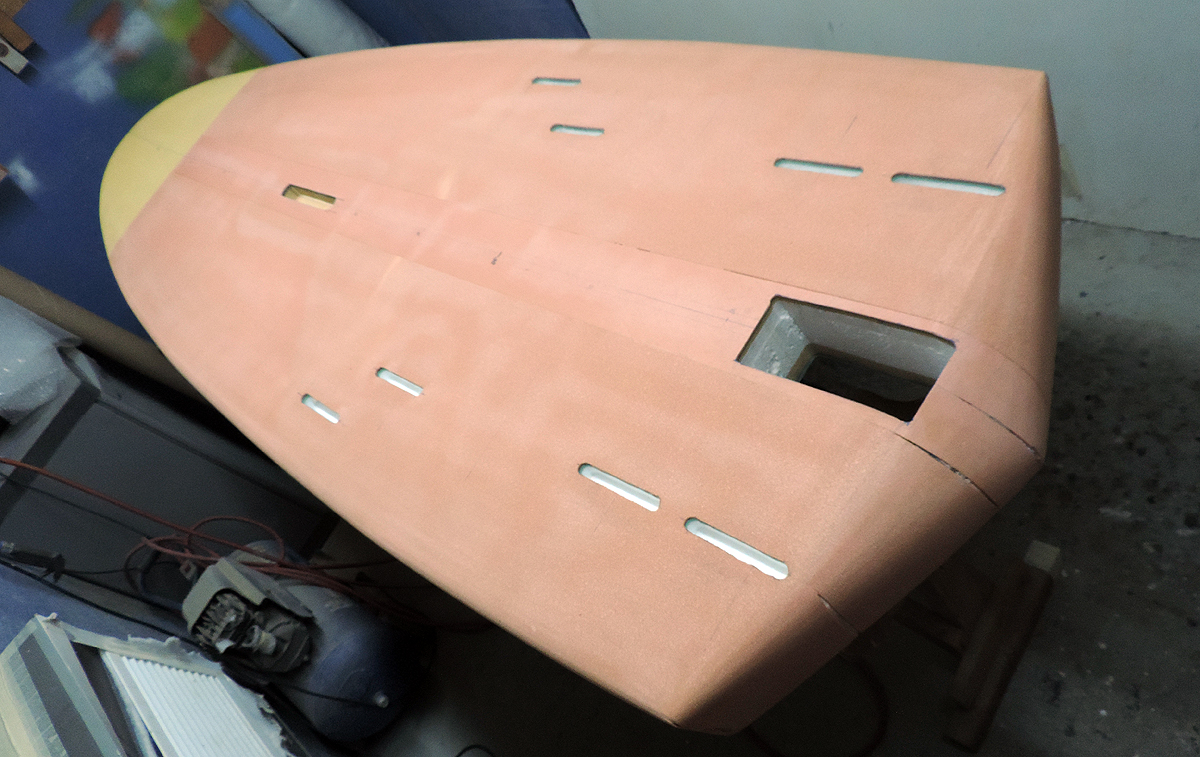

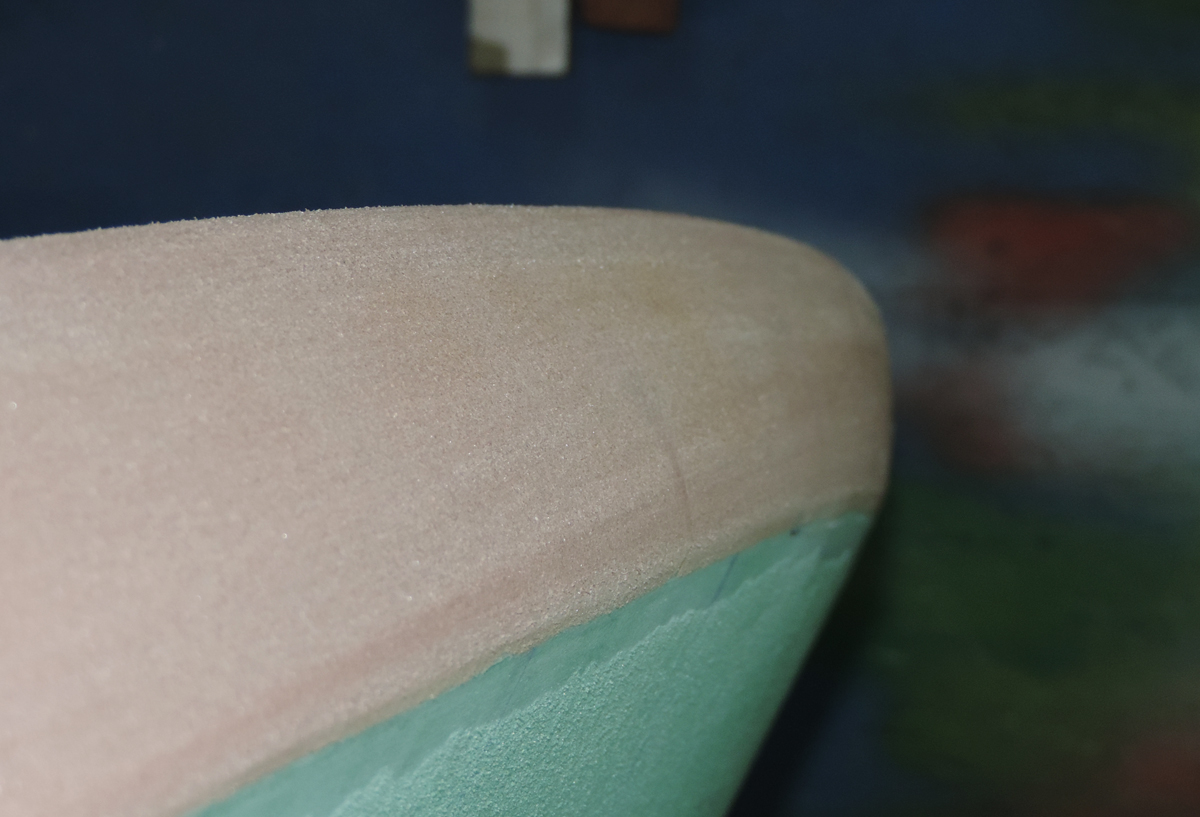

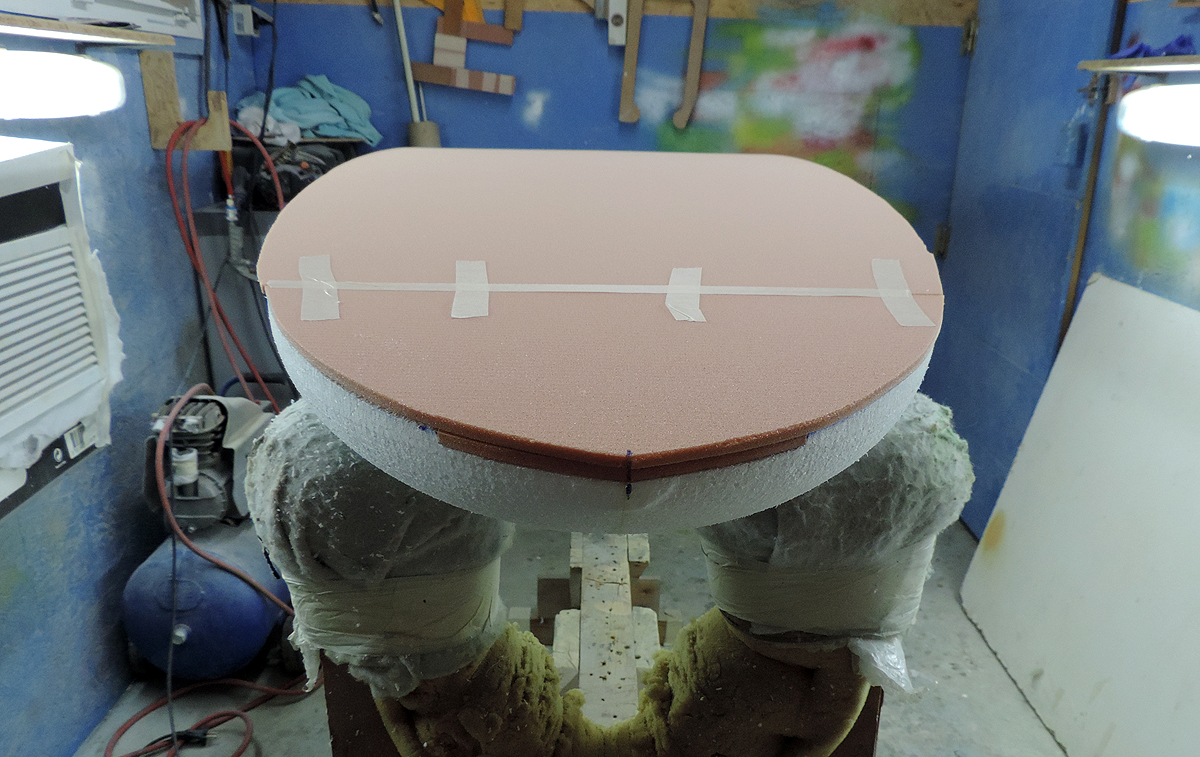

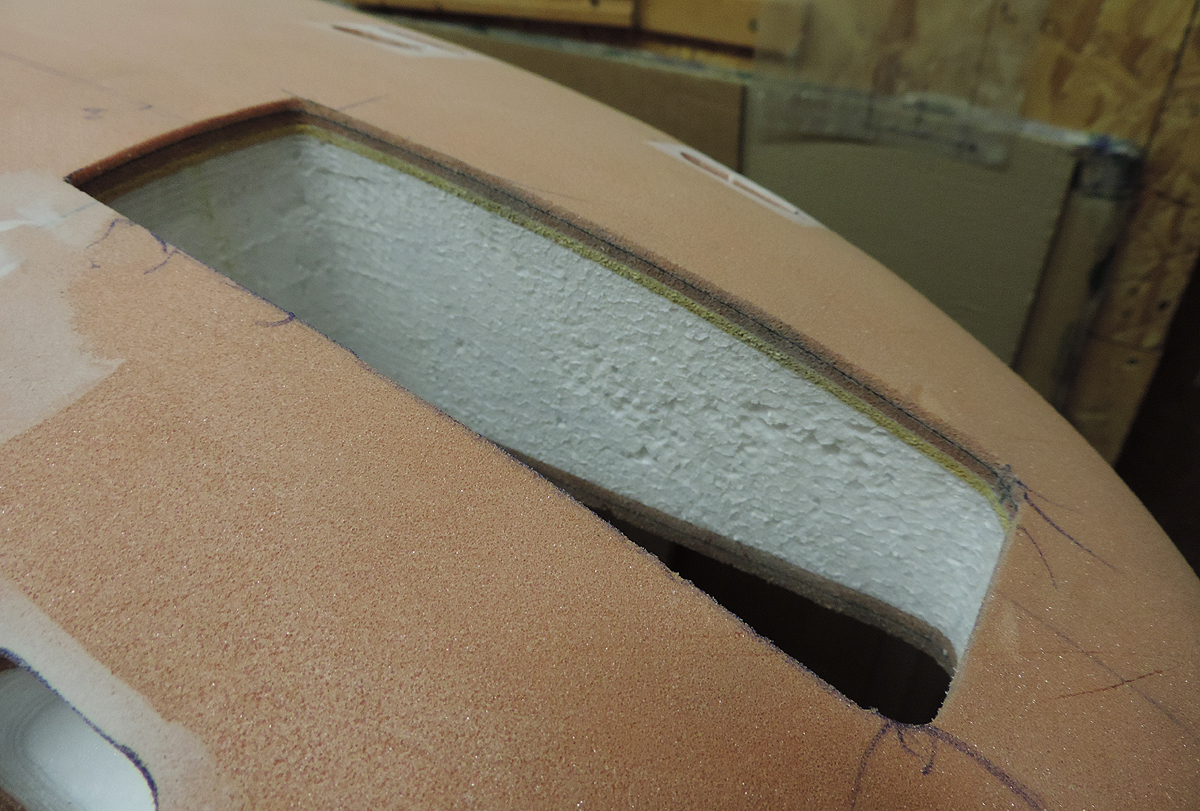

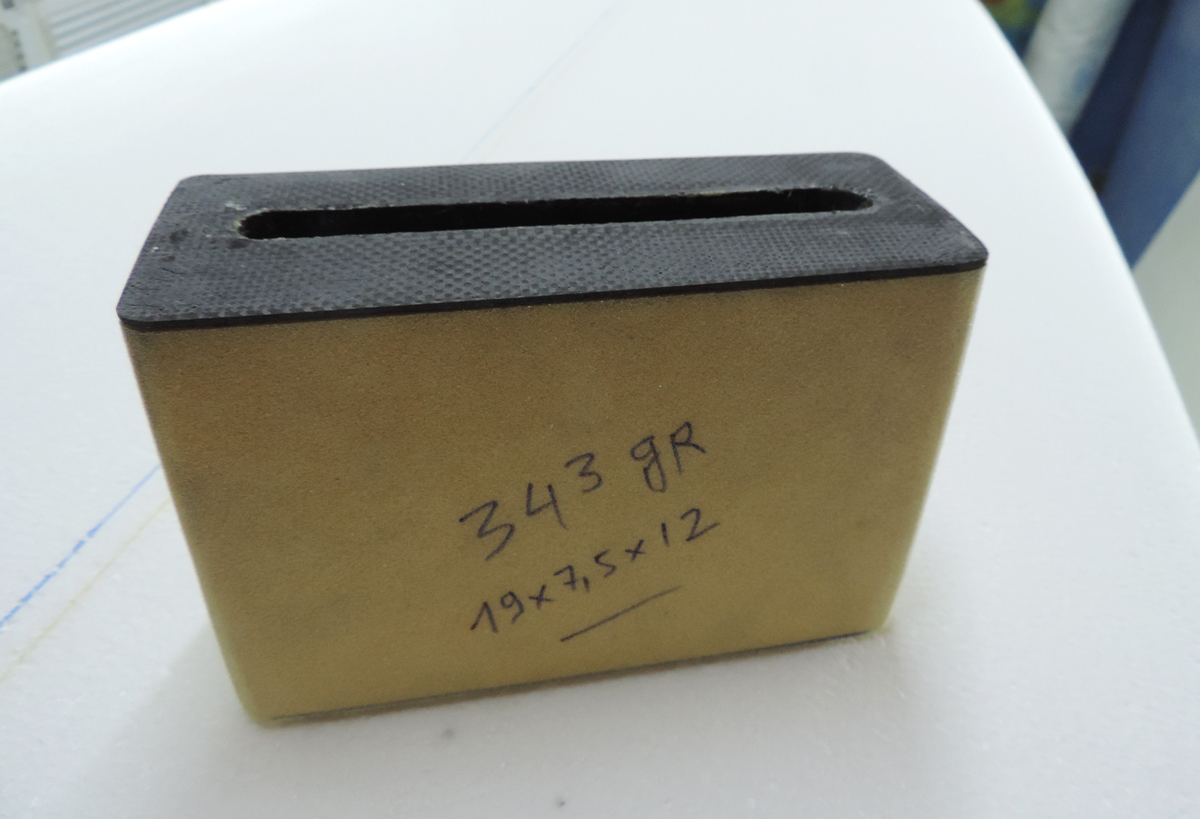

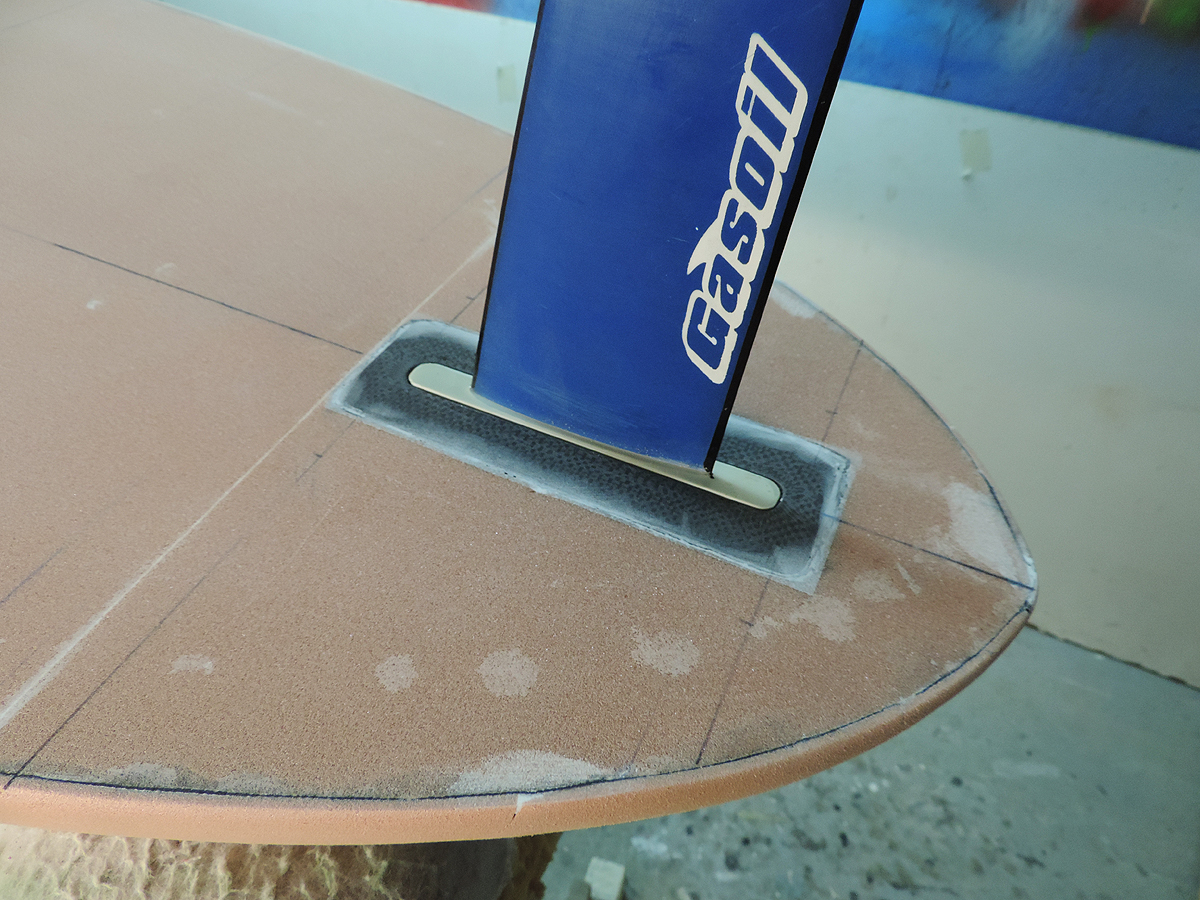

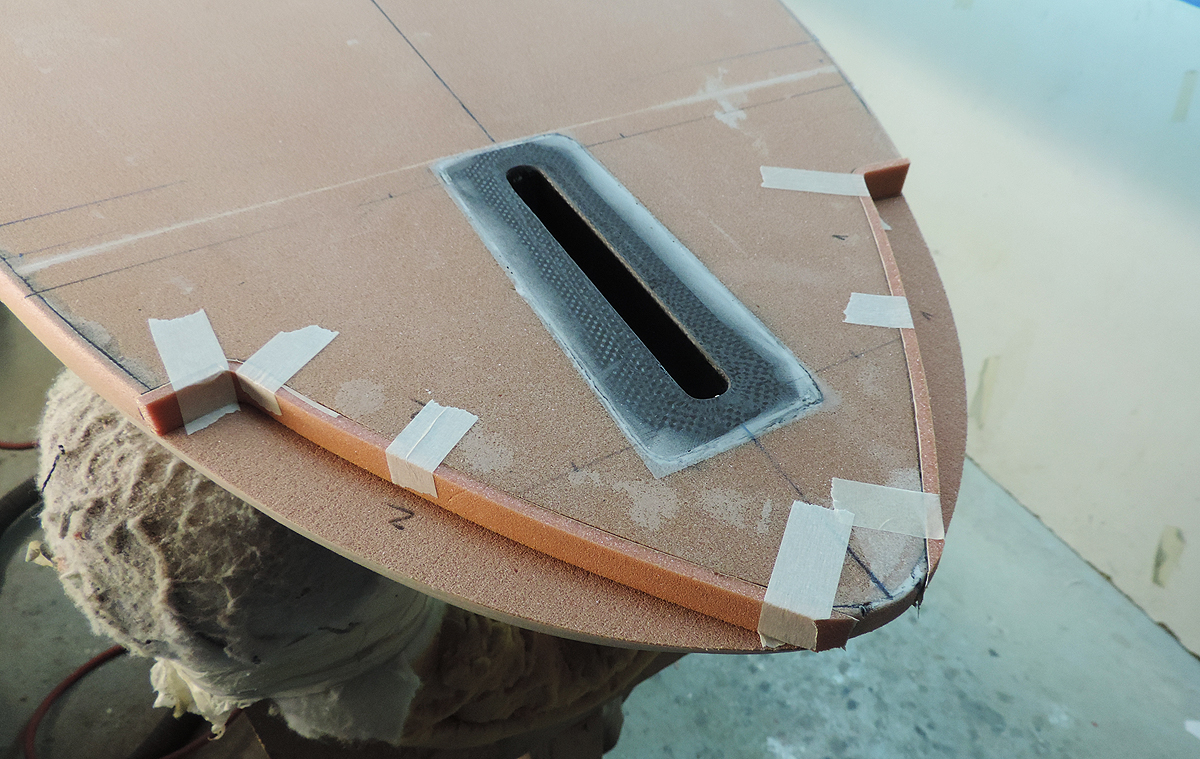

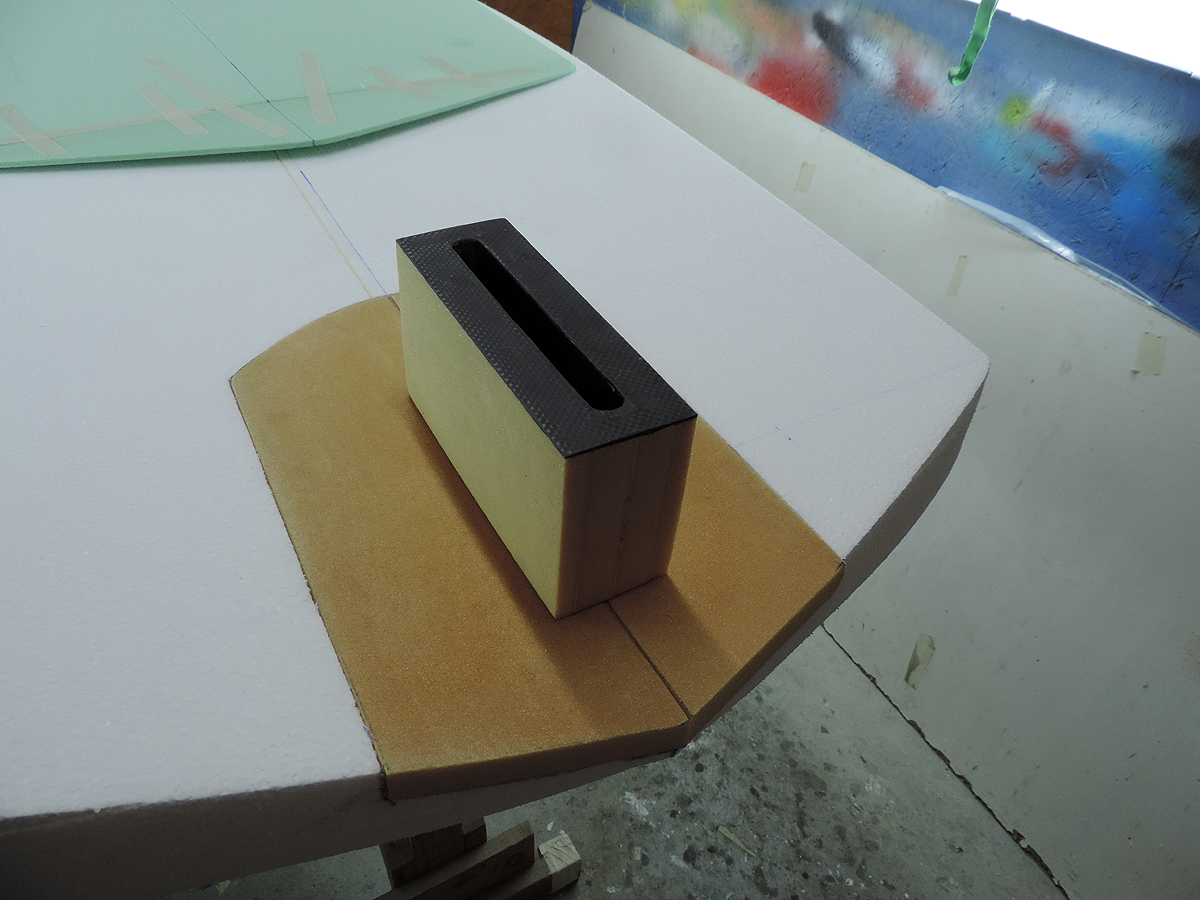

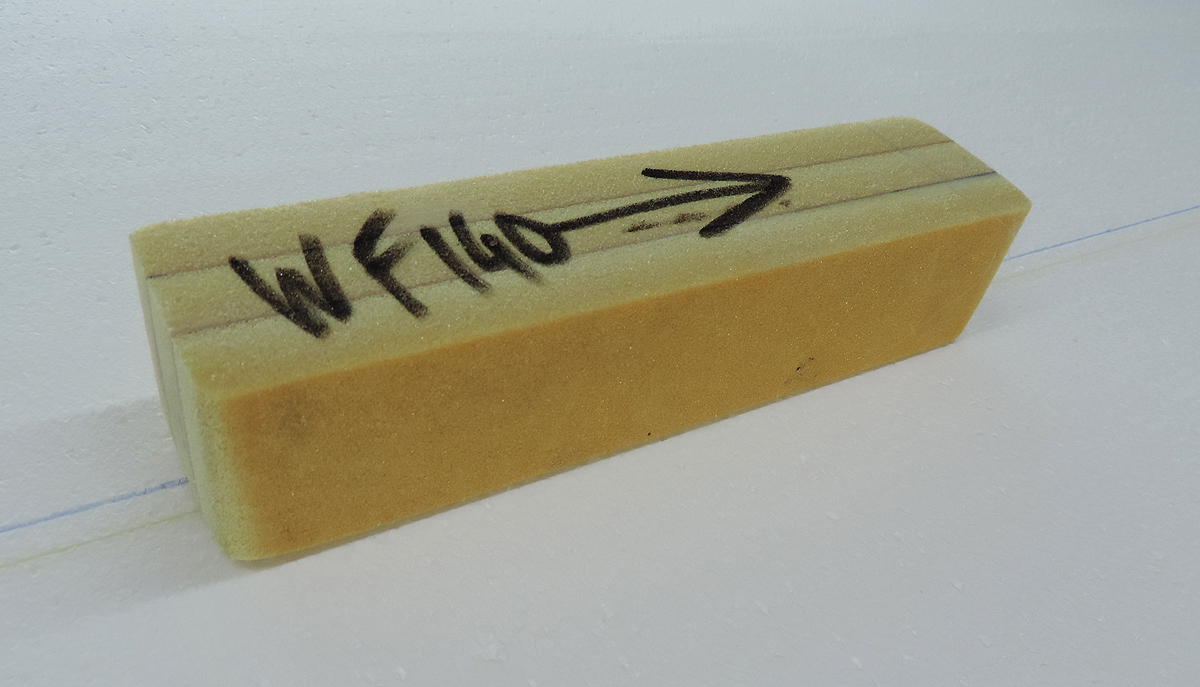

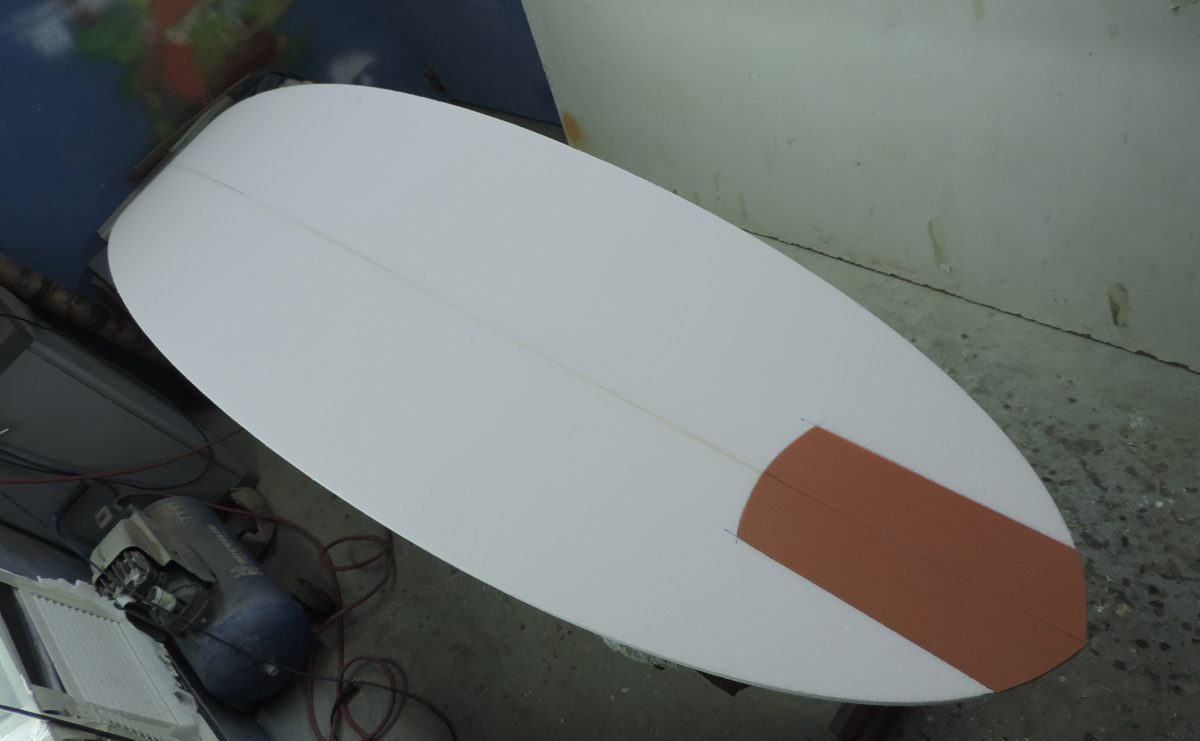

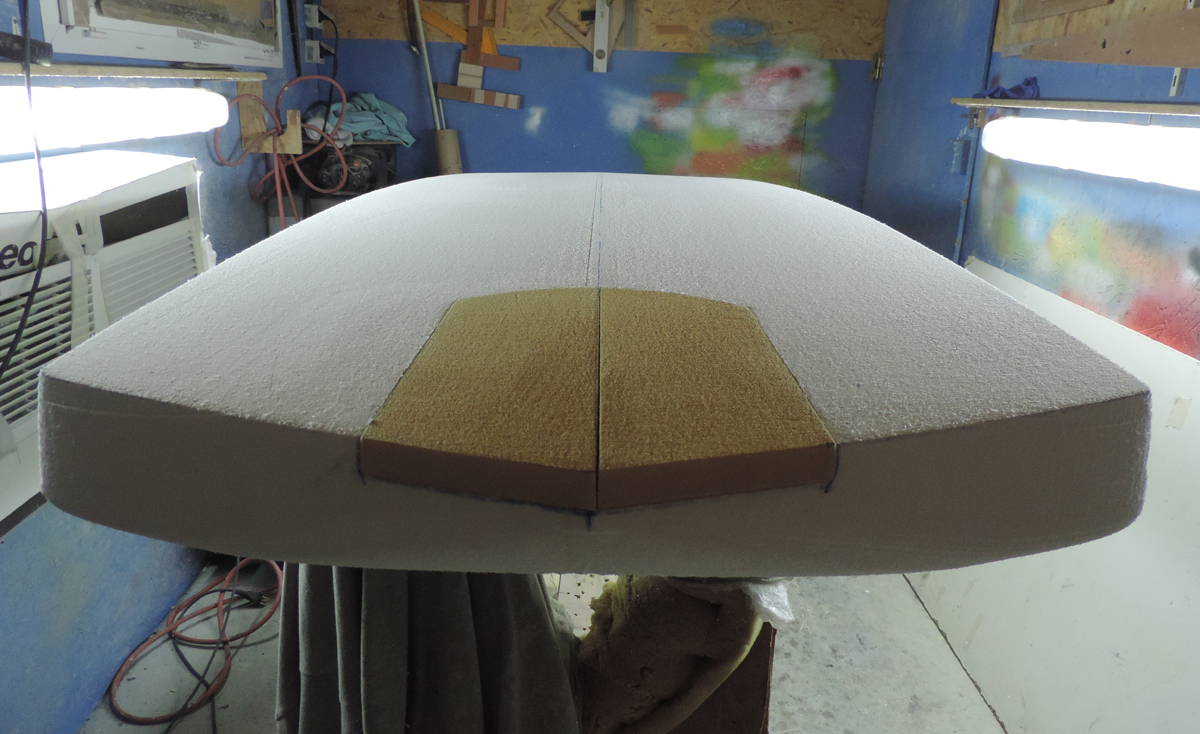

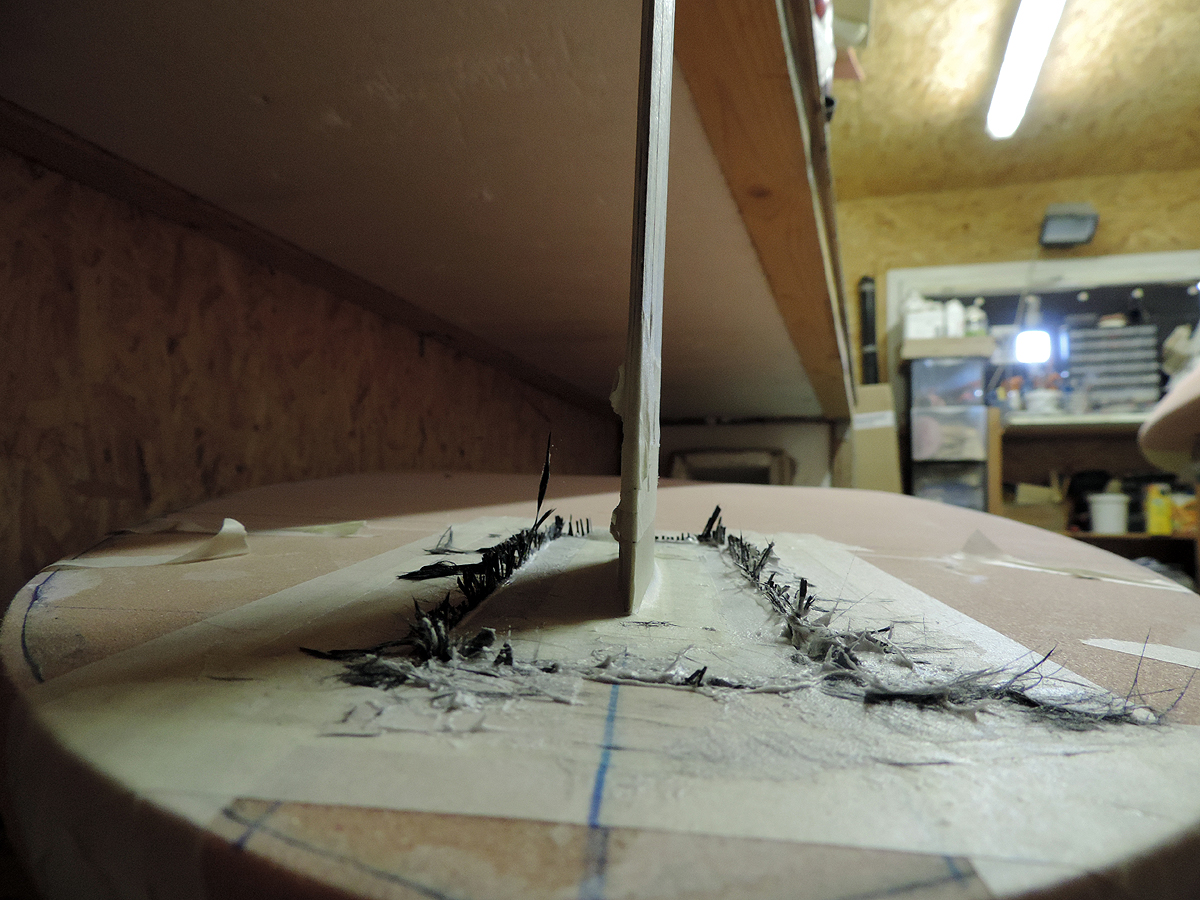

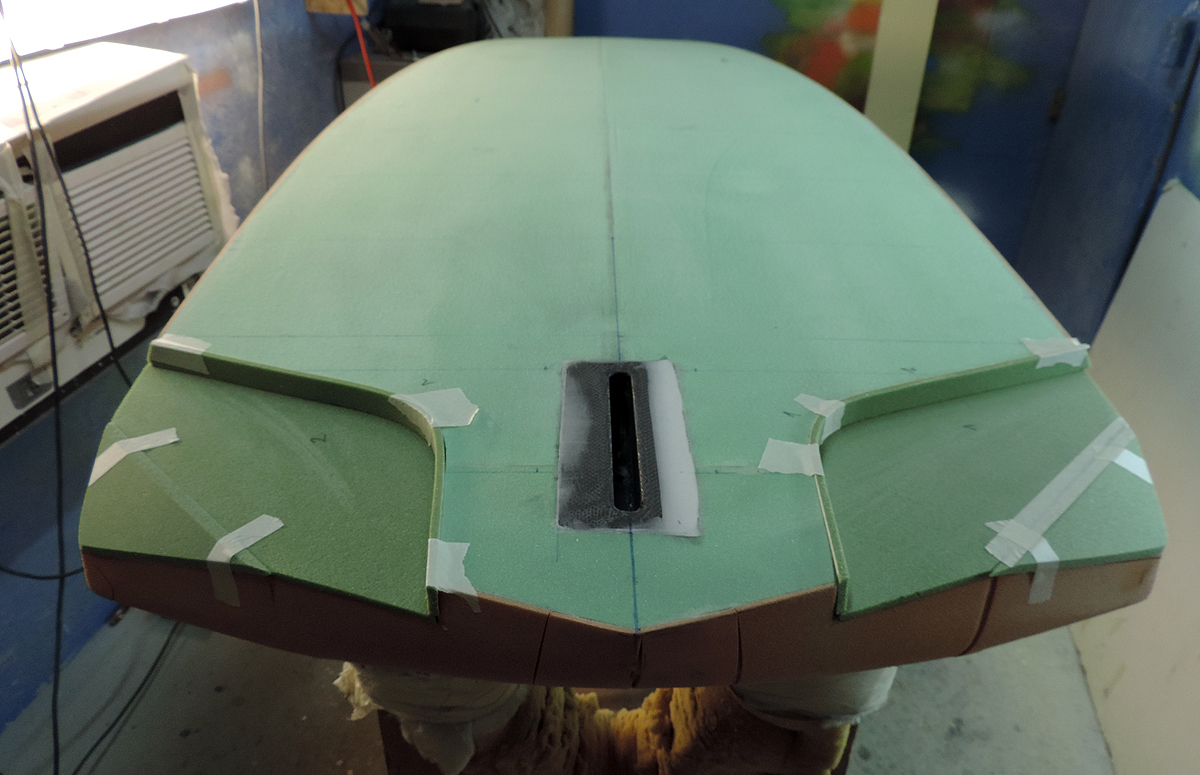

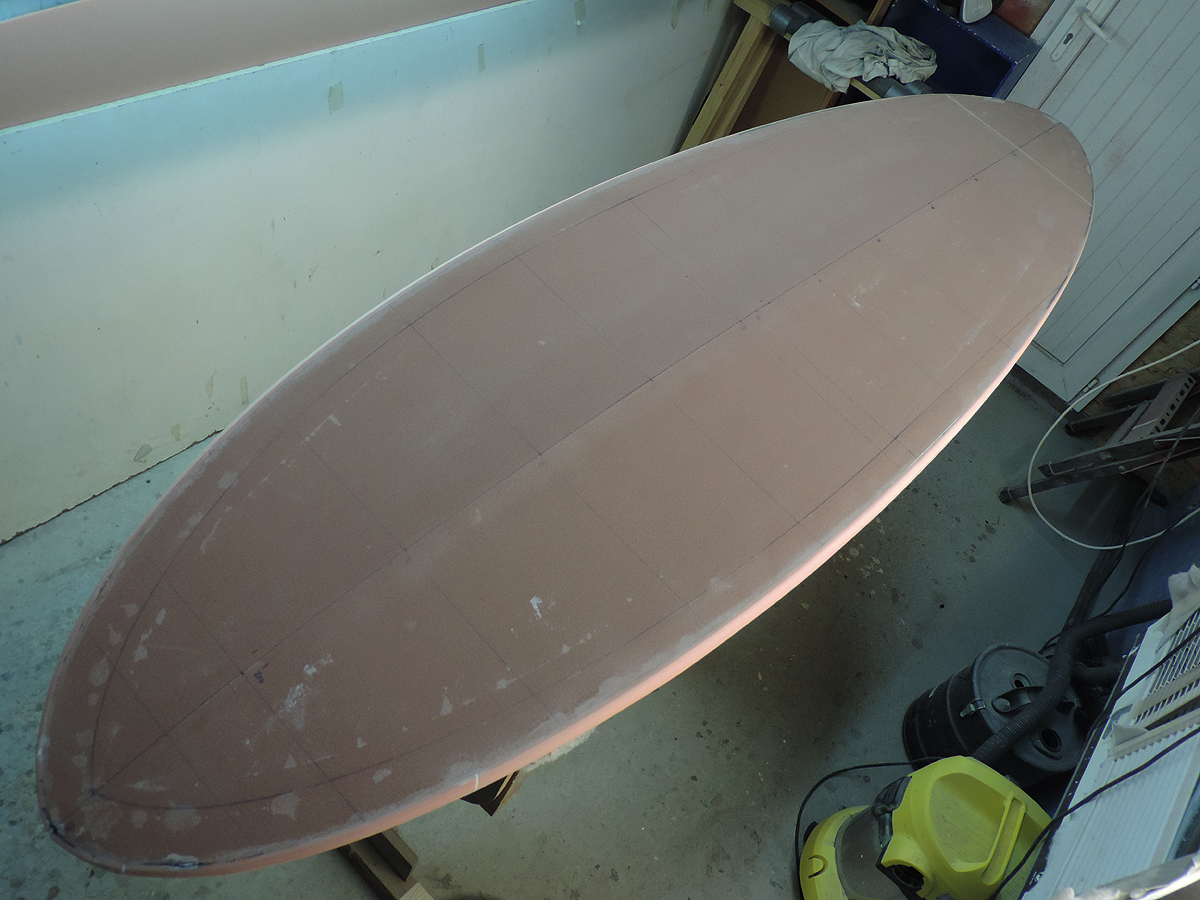

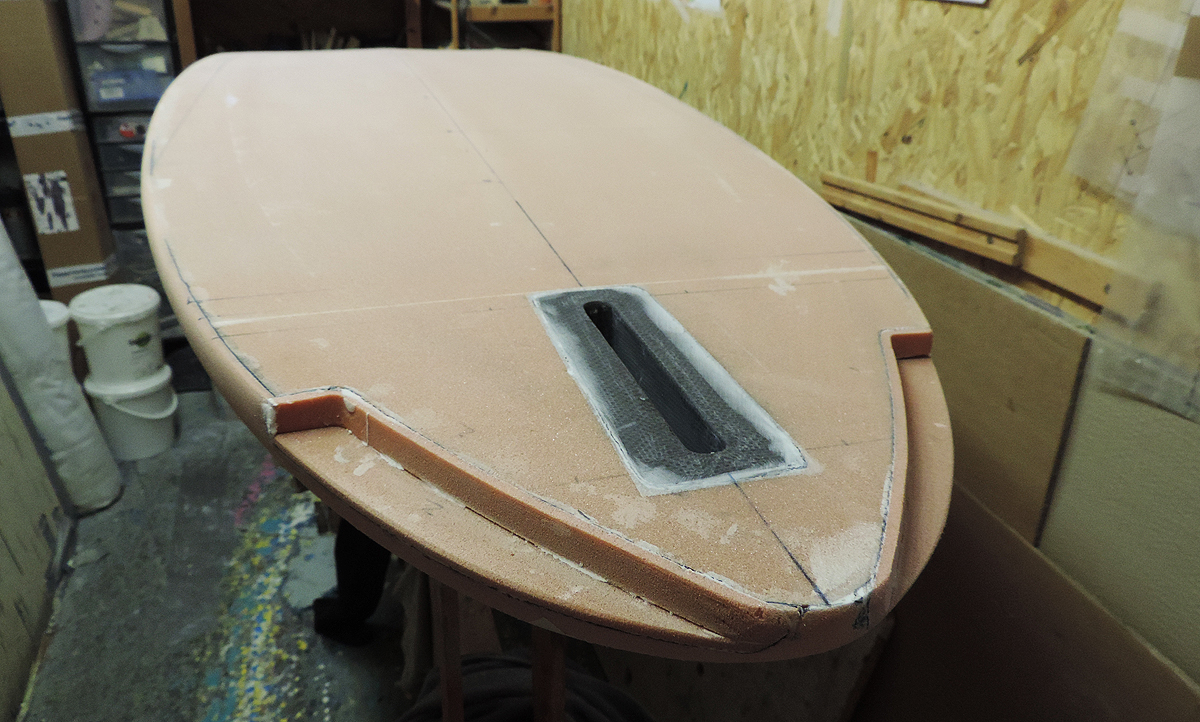

Sandwich : PVC 5mm 80 kg/m3, collé dans la foulée + double sandwich local 20 mm 80 kg/m3 pour le box d'aileron

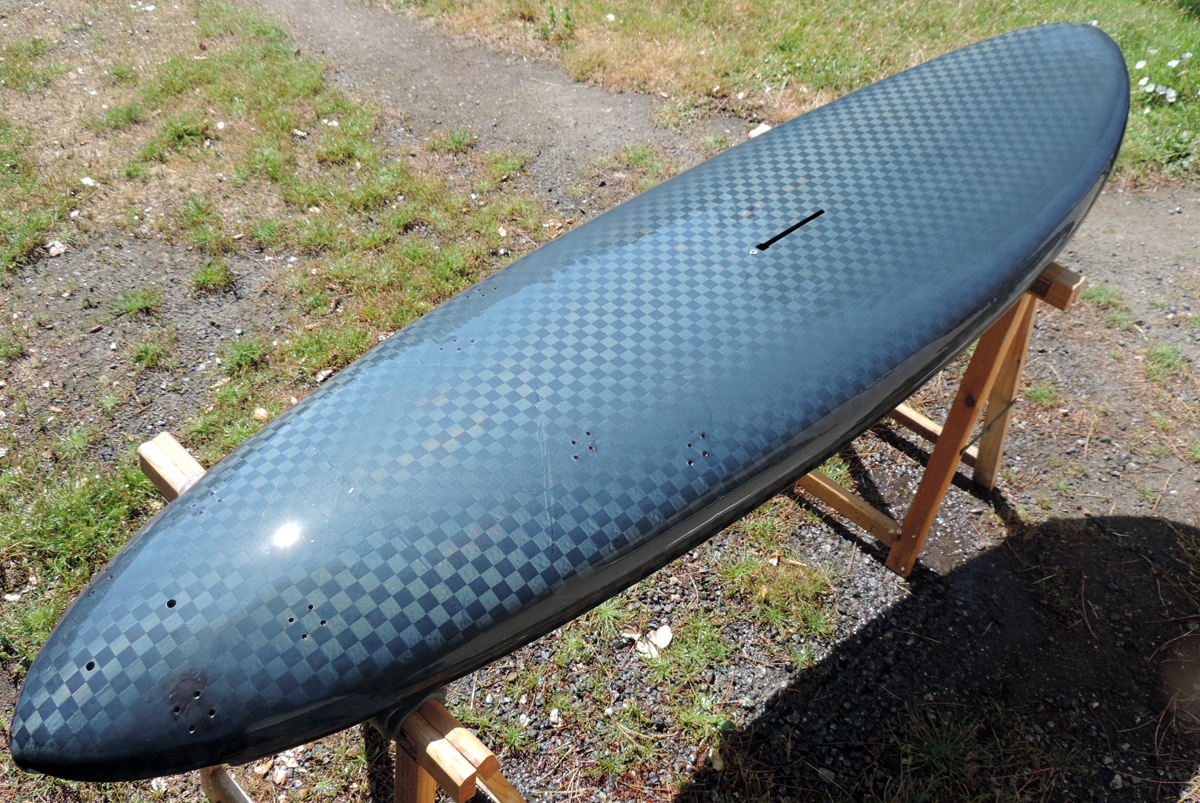

Strat extérieure : Carbone taffetas 160 gr/m2, renfort Carbone 200 gr/m2 pour le box d'aileron

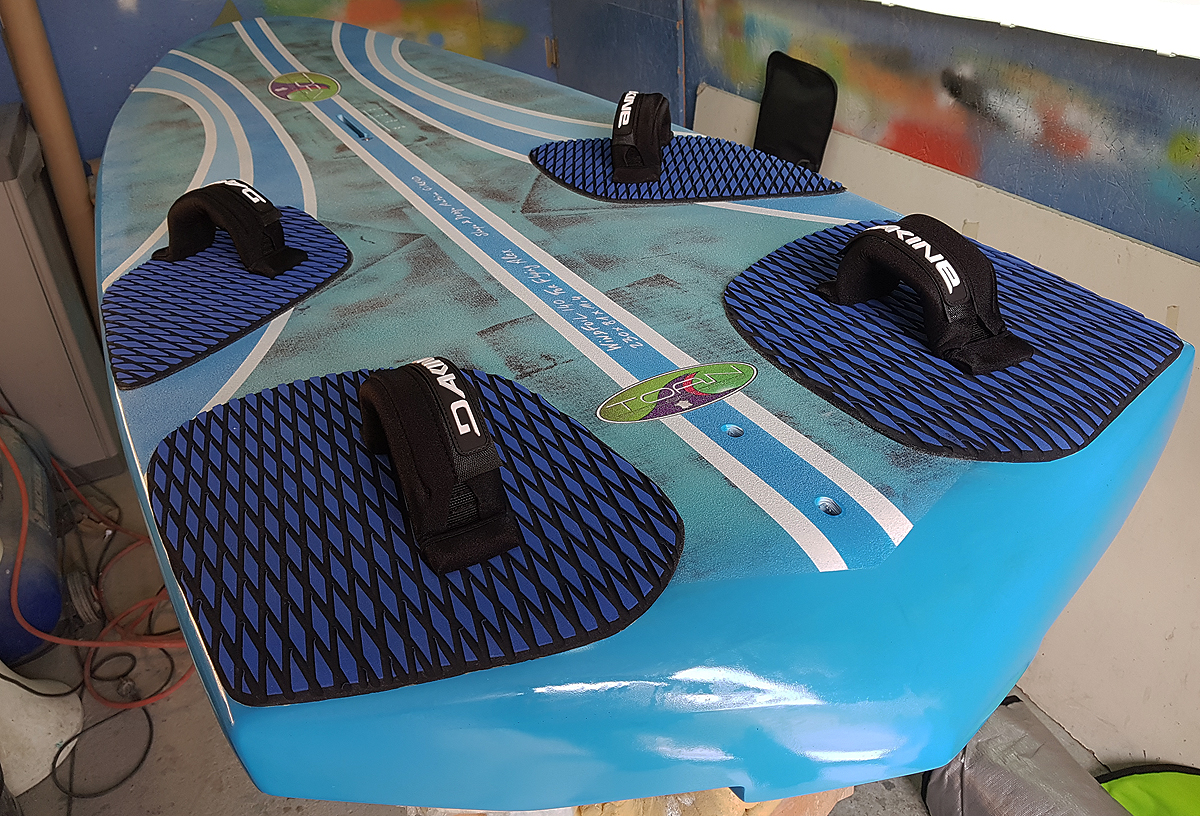

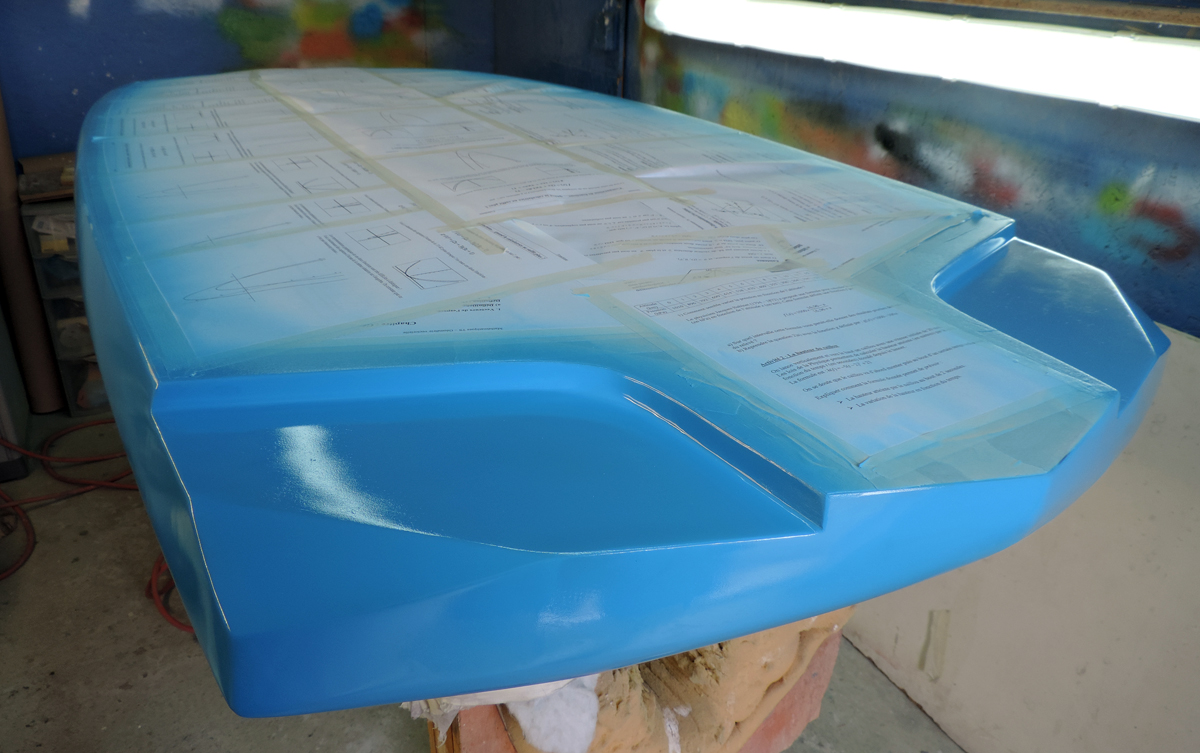

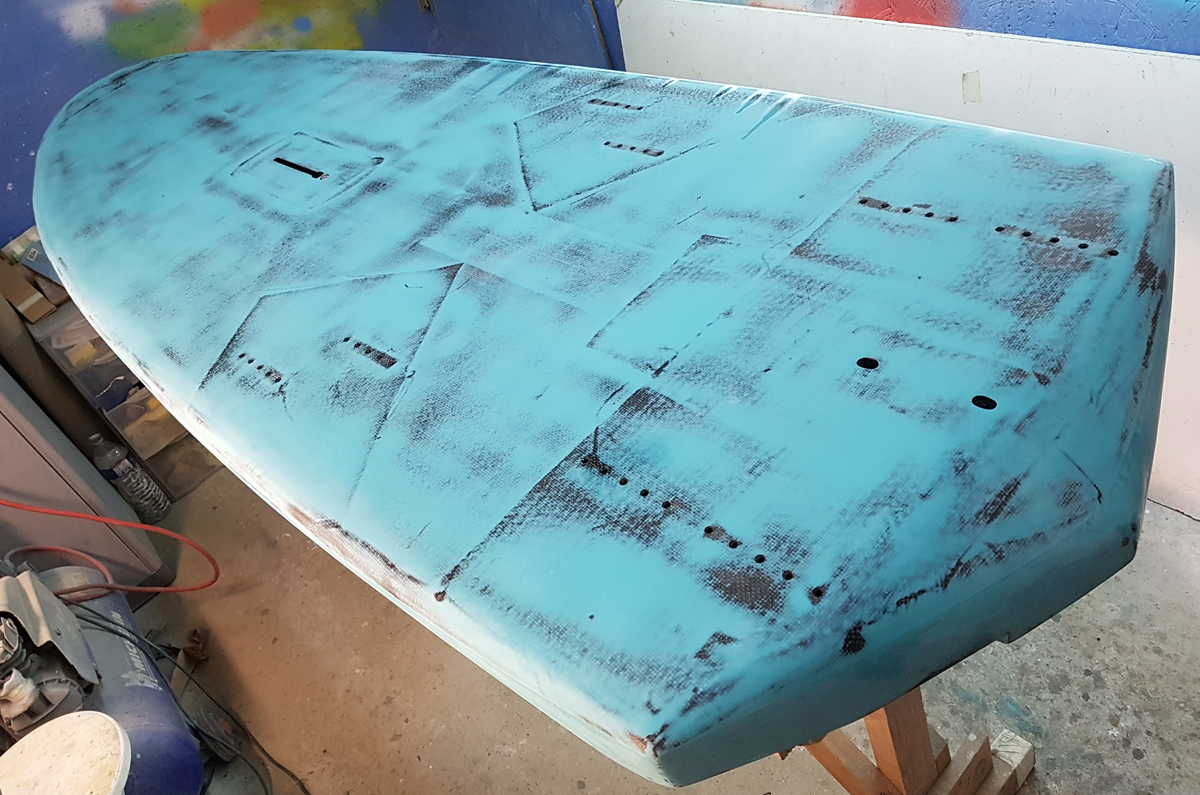

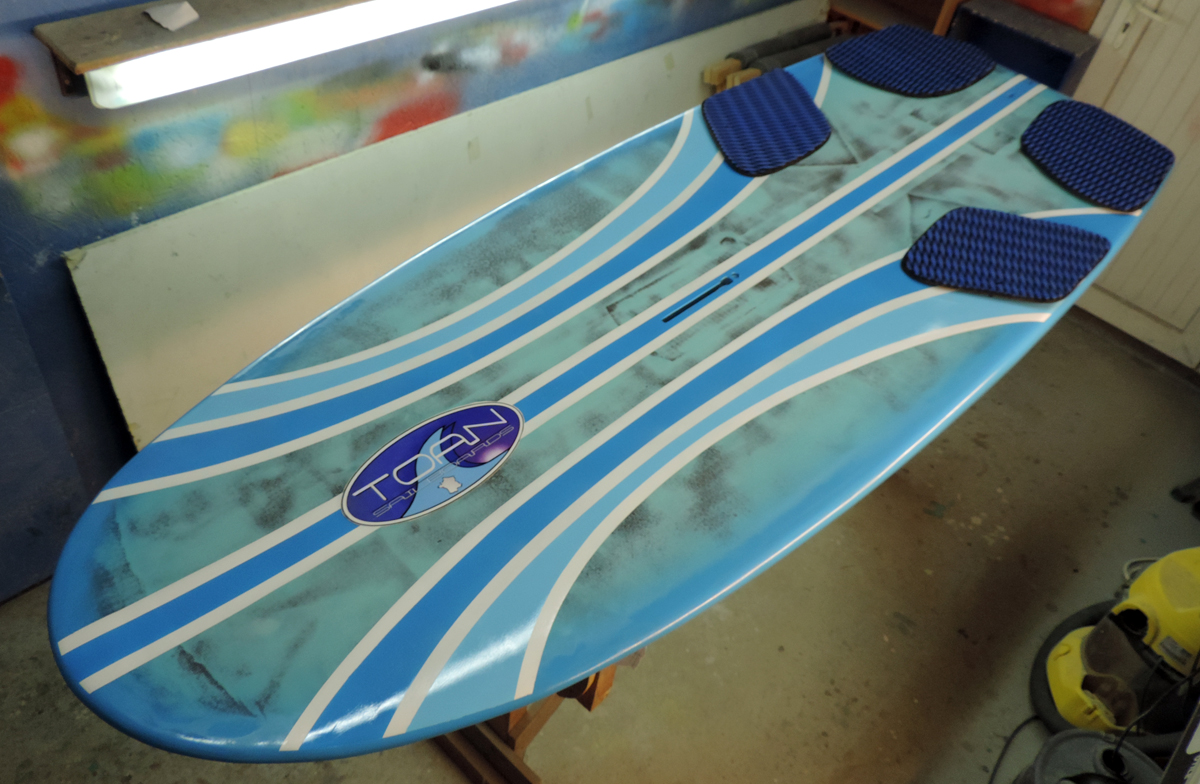

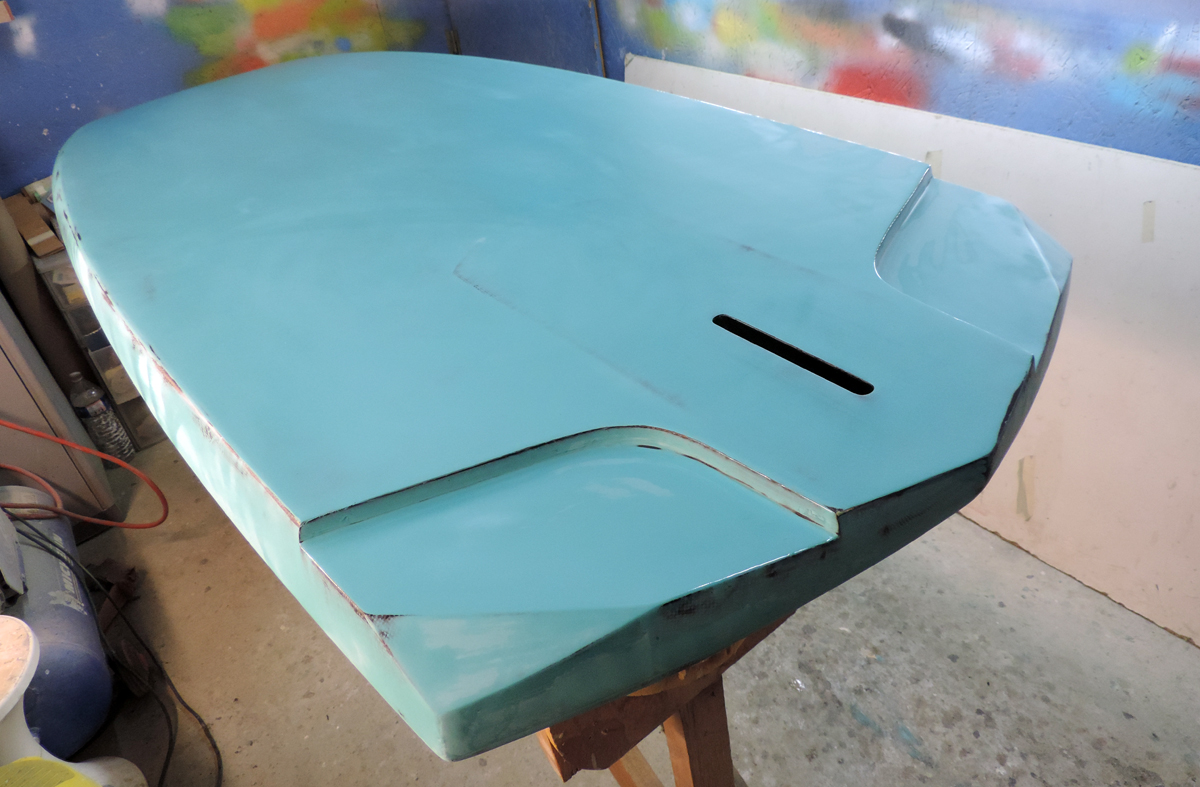

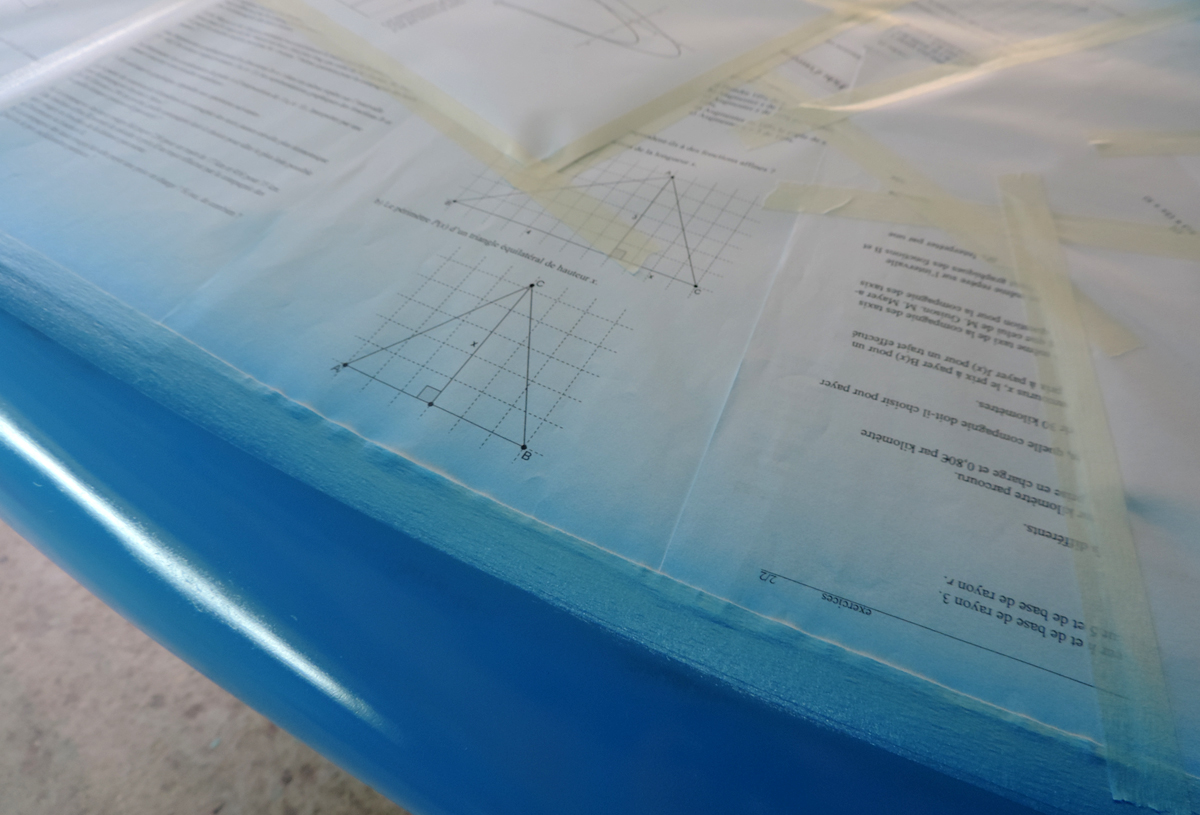

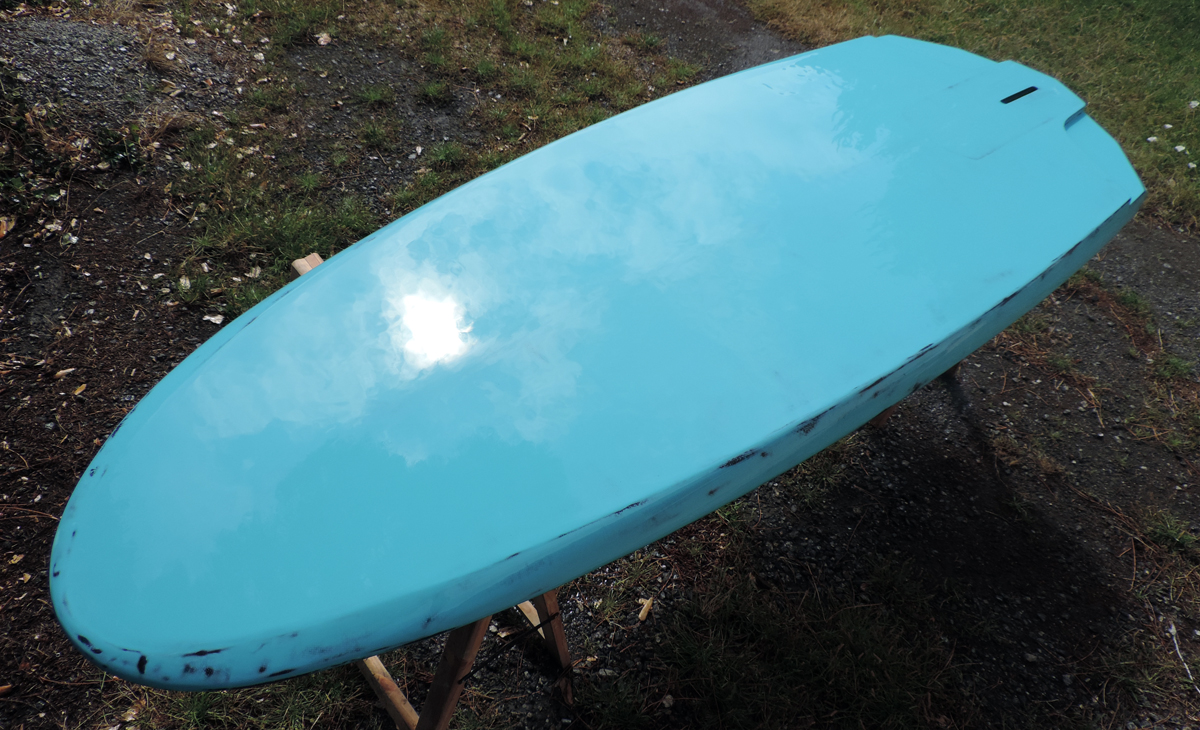

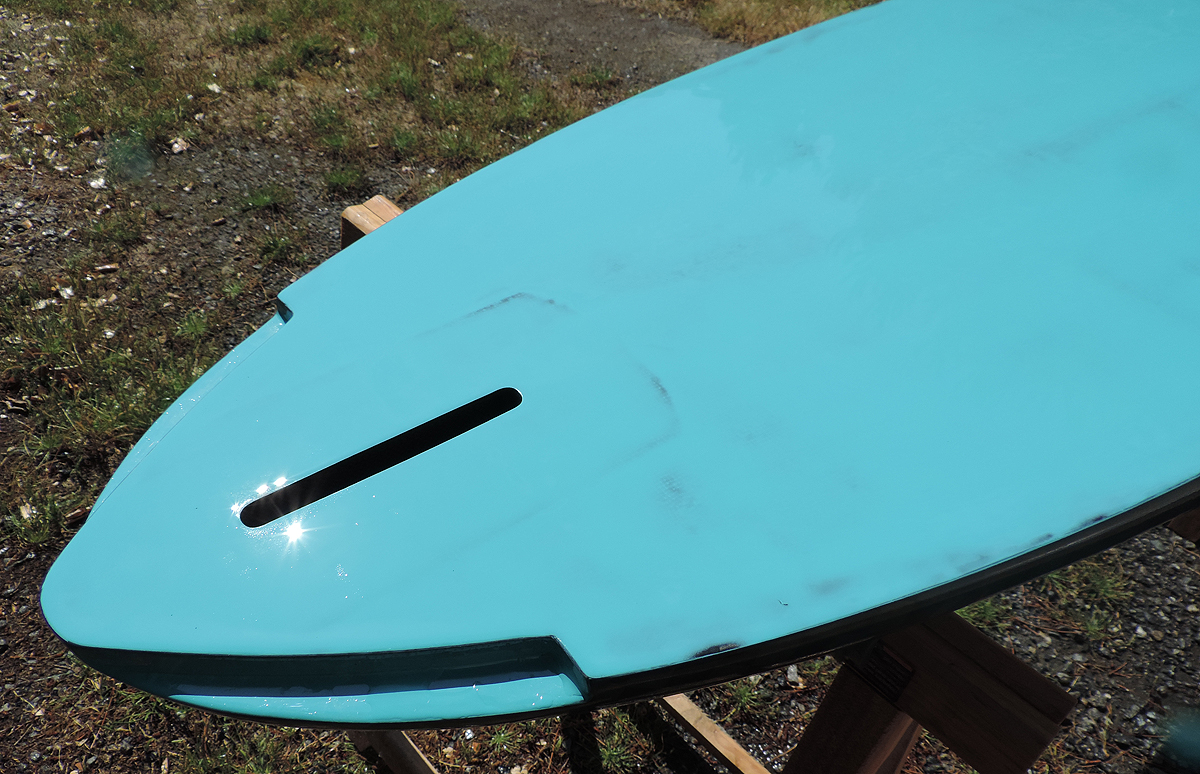

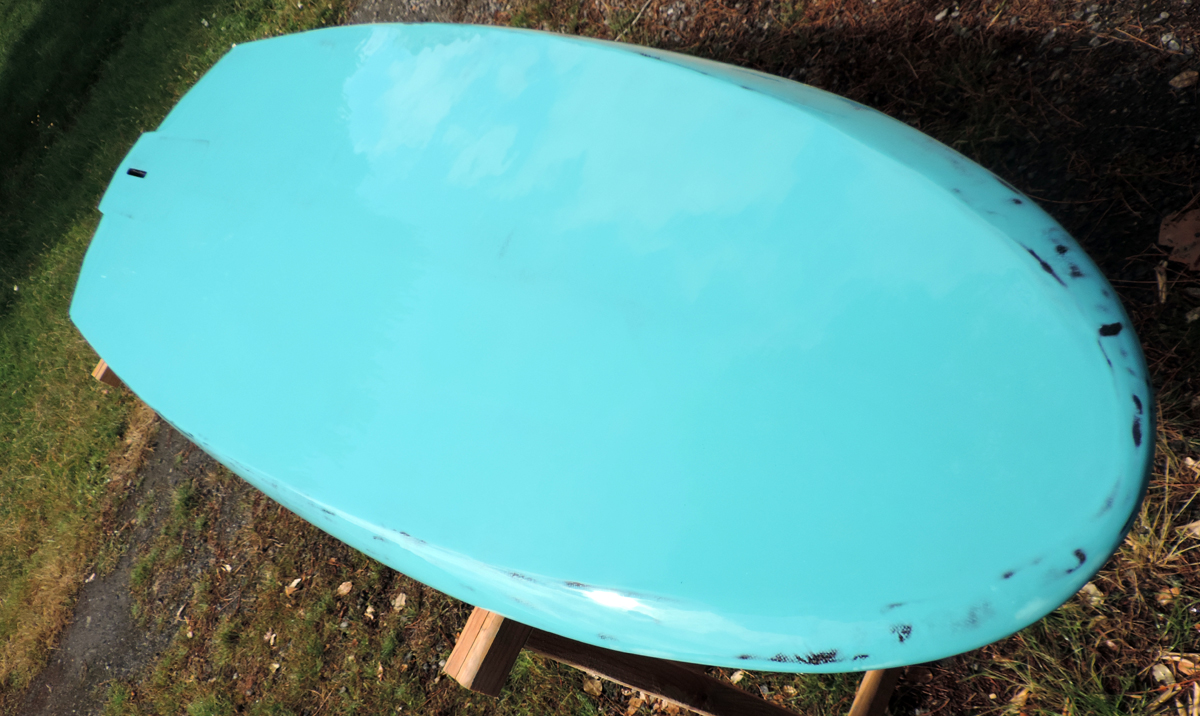

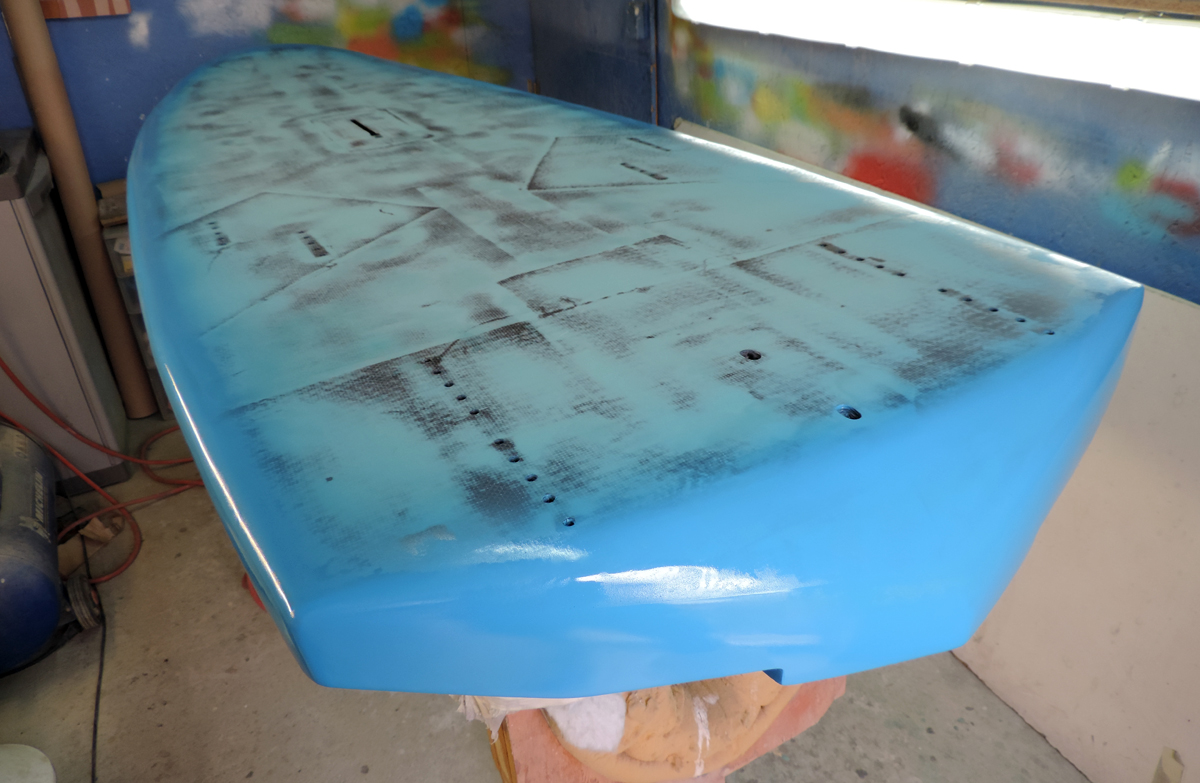

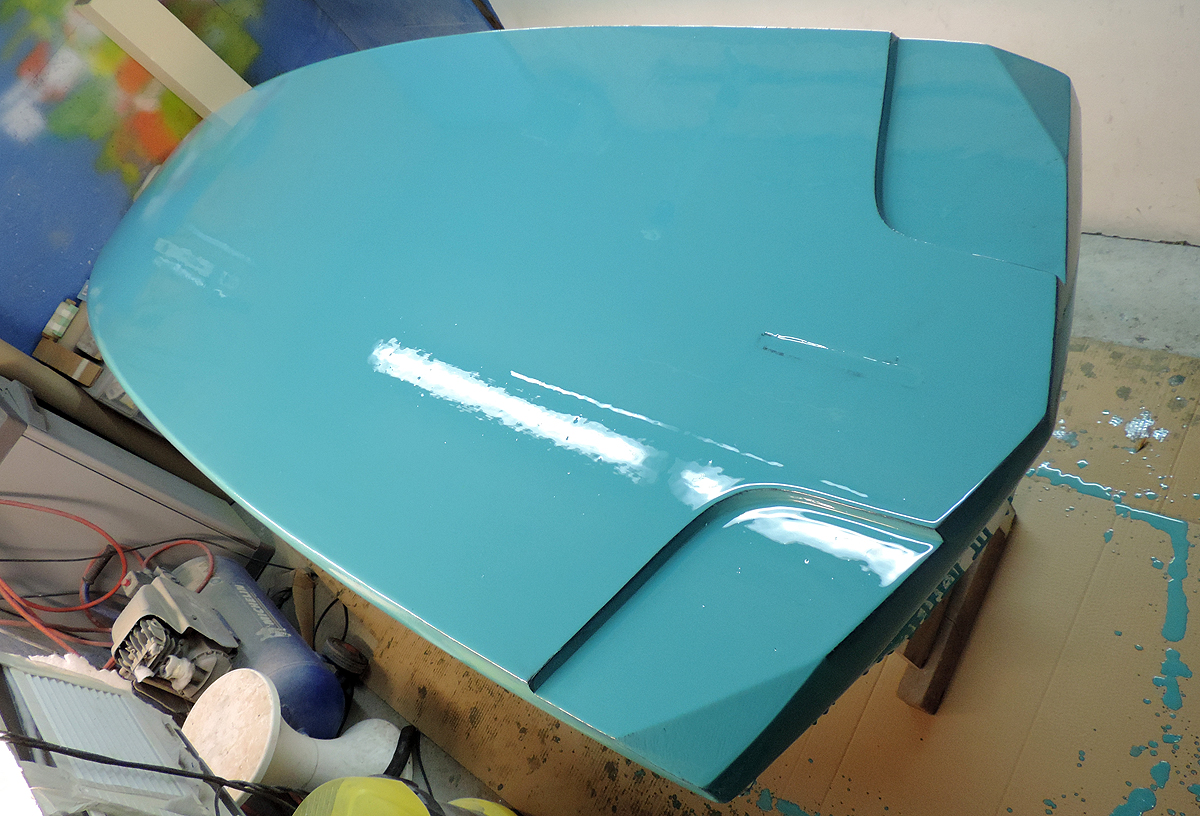

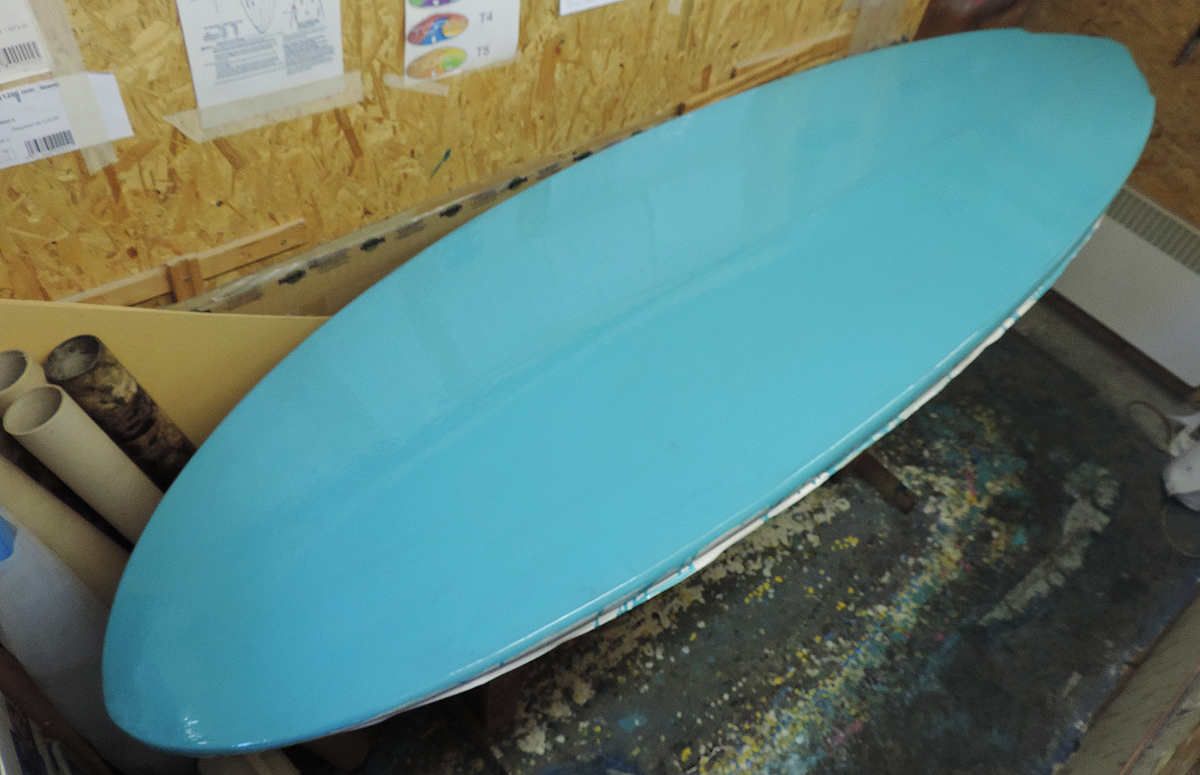

Finition : Glass epoxy pigmenté turquoise, peinture PU. Poids final flotteur nu: 8950 gr

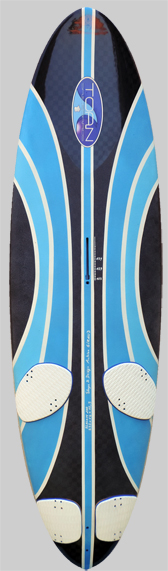

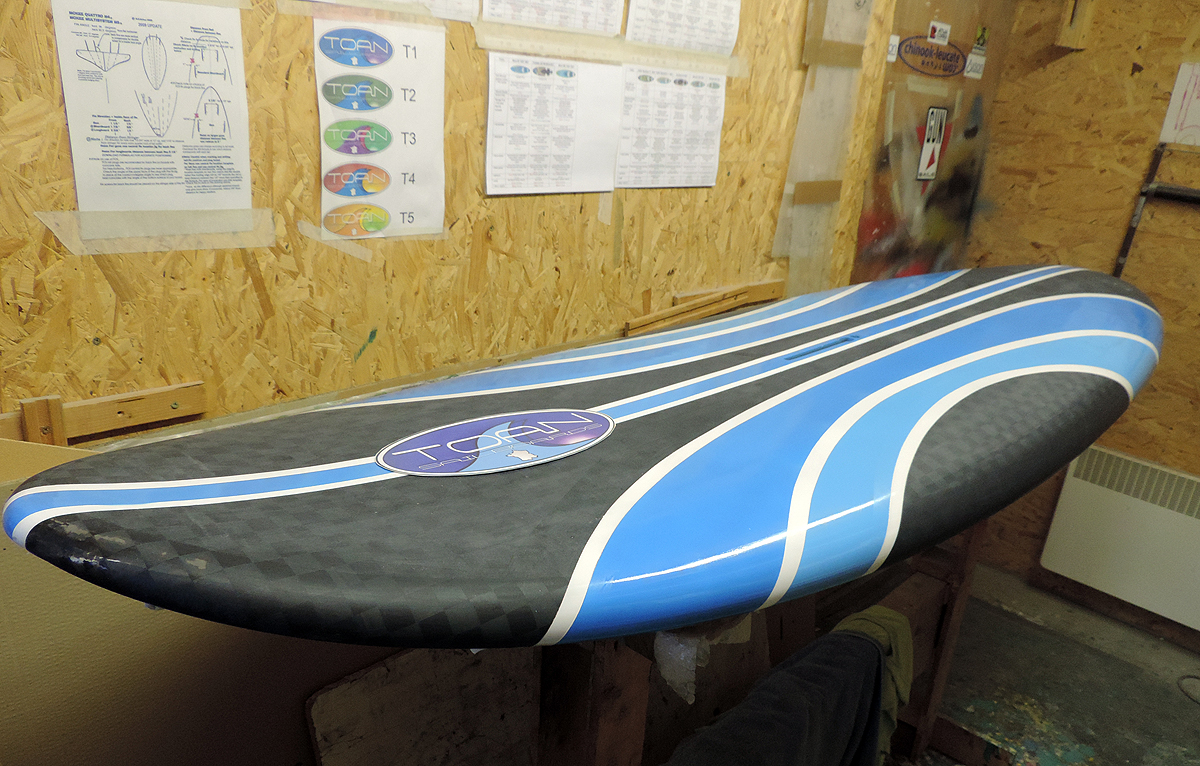

Slalom 100 • 2018

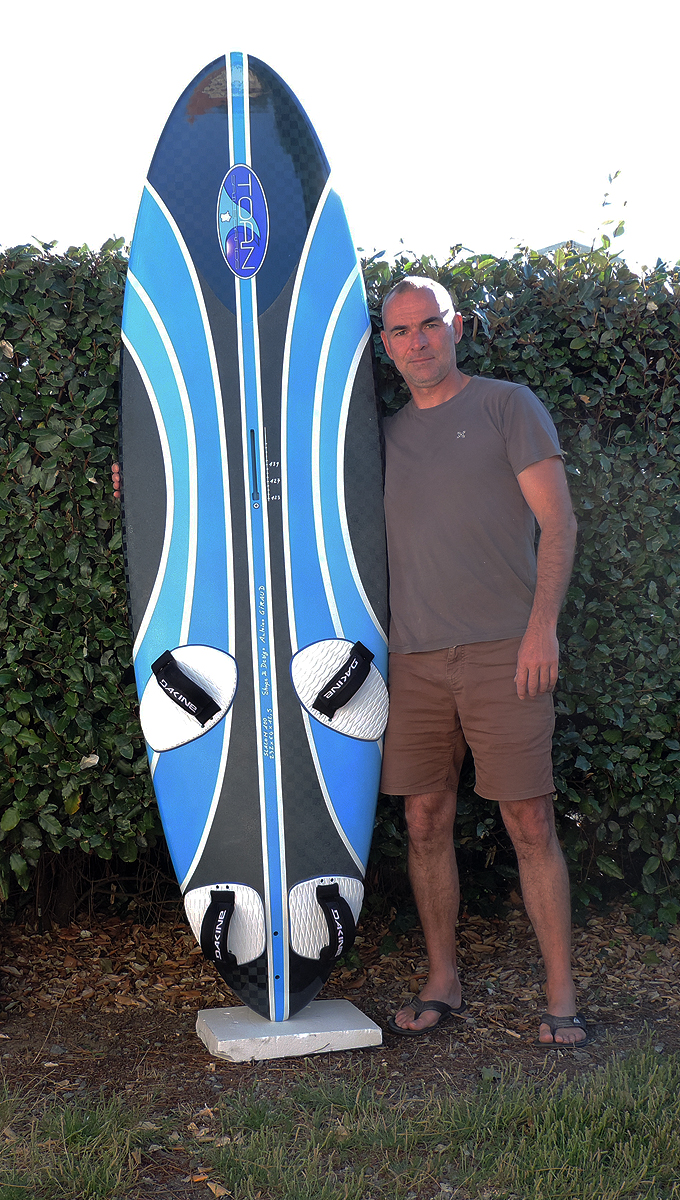

Slalom 100 230*63.5*12 • Juin 2018
Programme: Slalom Médium pour naviguer en 6.7 - 7.1 full speed !
Pont :

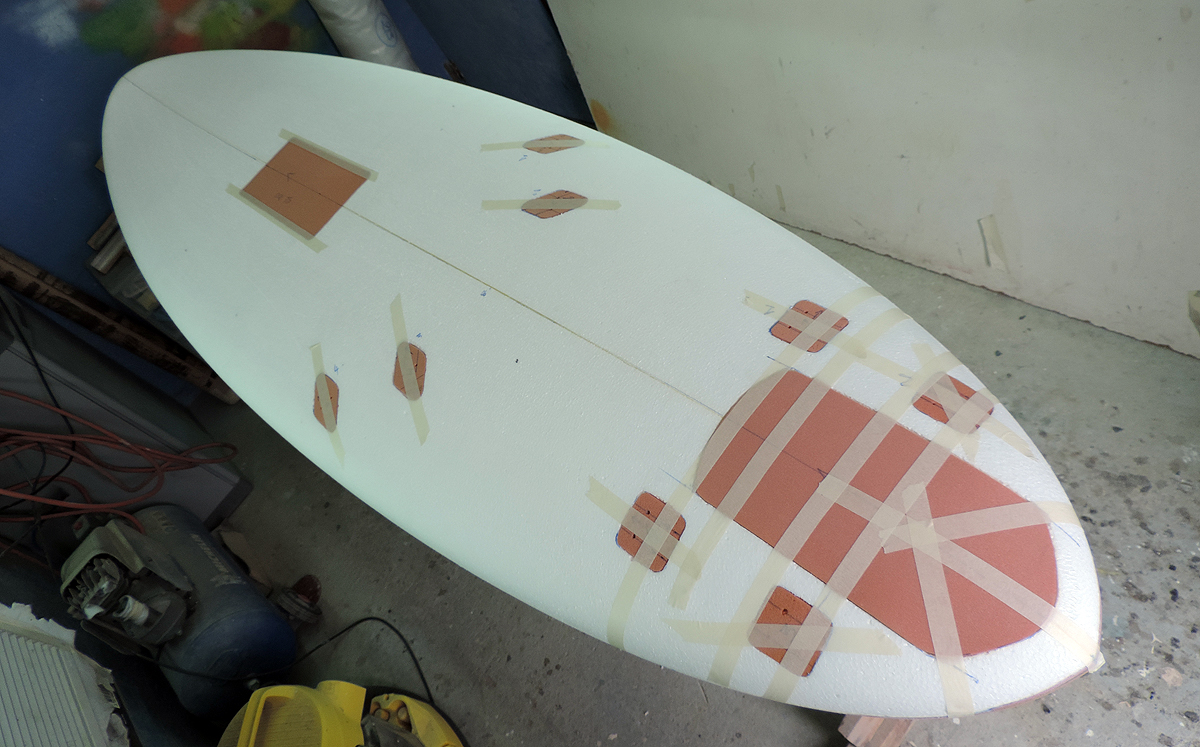

Blocage : verre 86gr/m2 + "Croix de Lorraine" Carbone 200gr/m2.
Sandwich : PVC 3mm 90kg/m3 + triple sandwich local 2 x 3mm 100 kg/m3 pour le box d'aileron

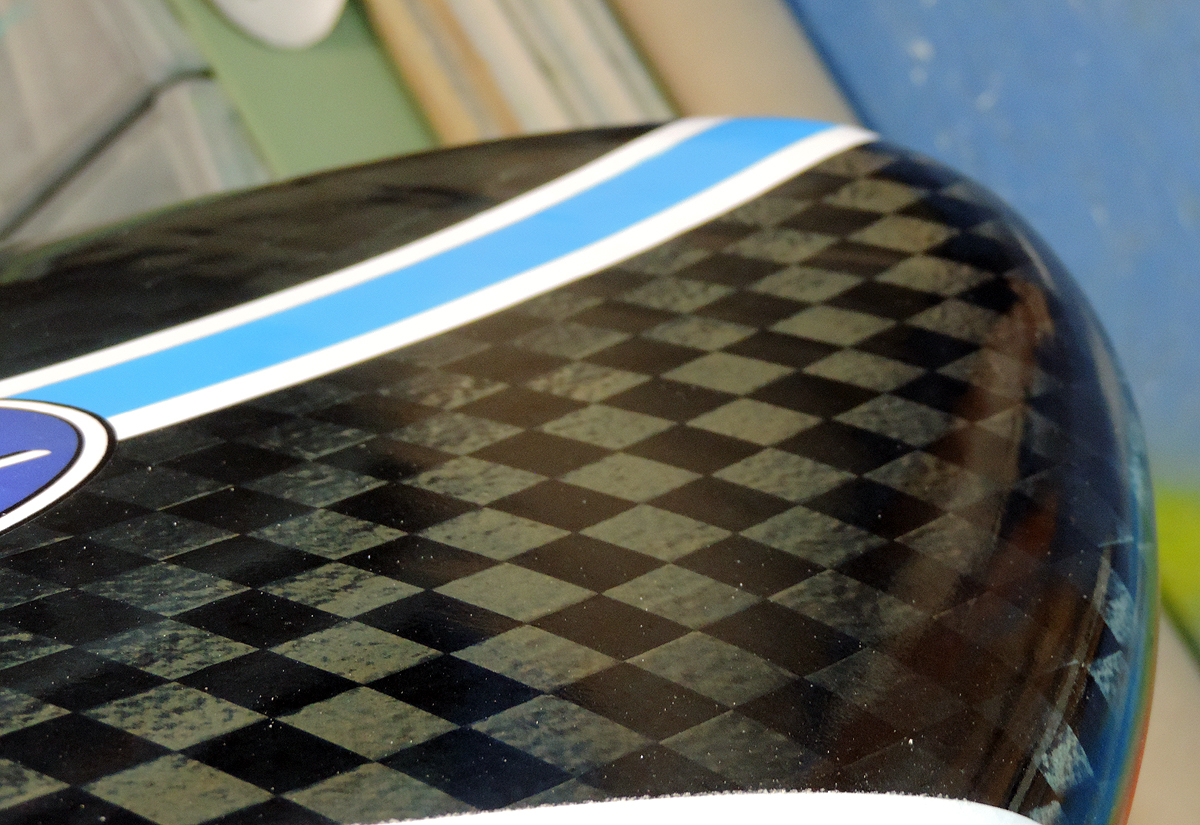

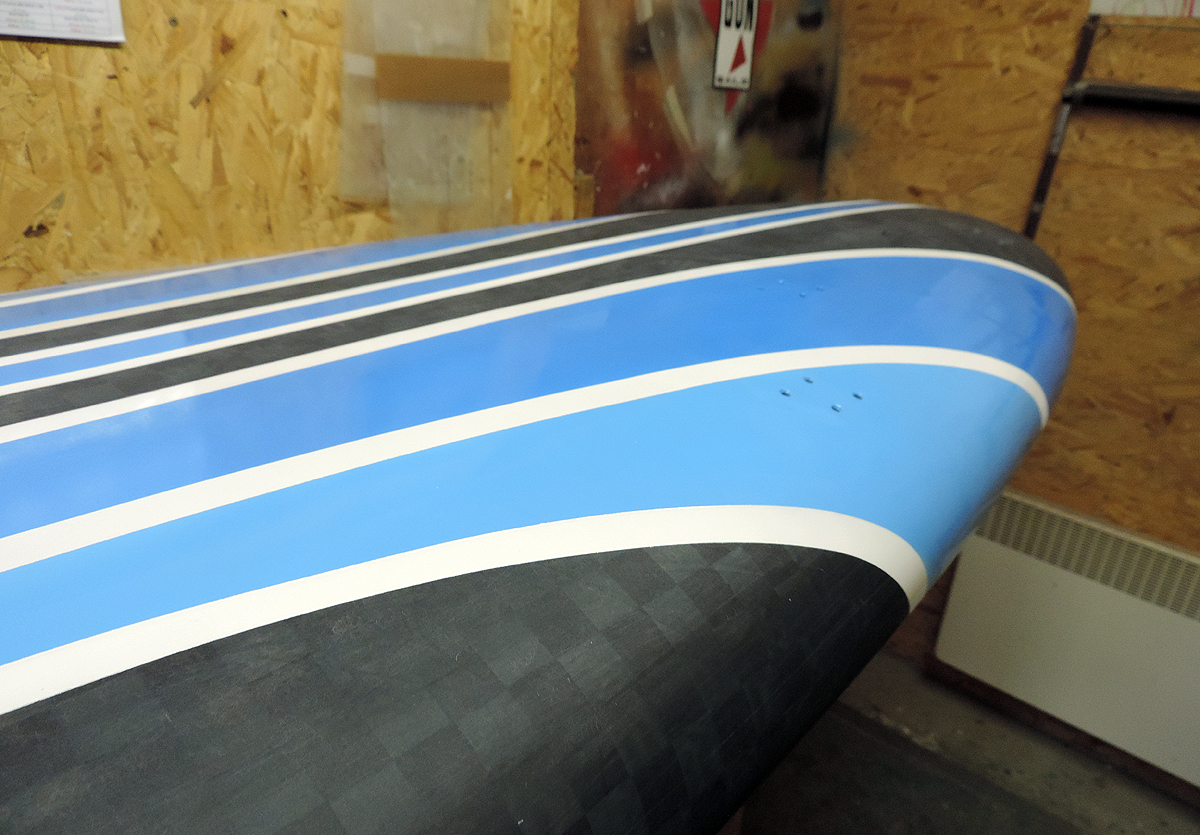

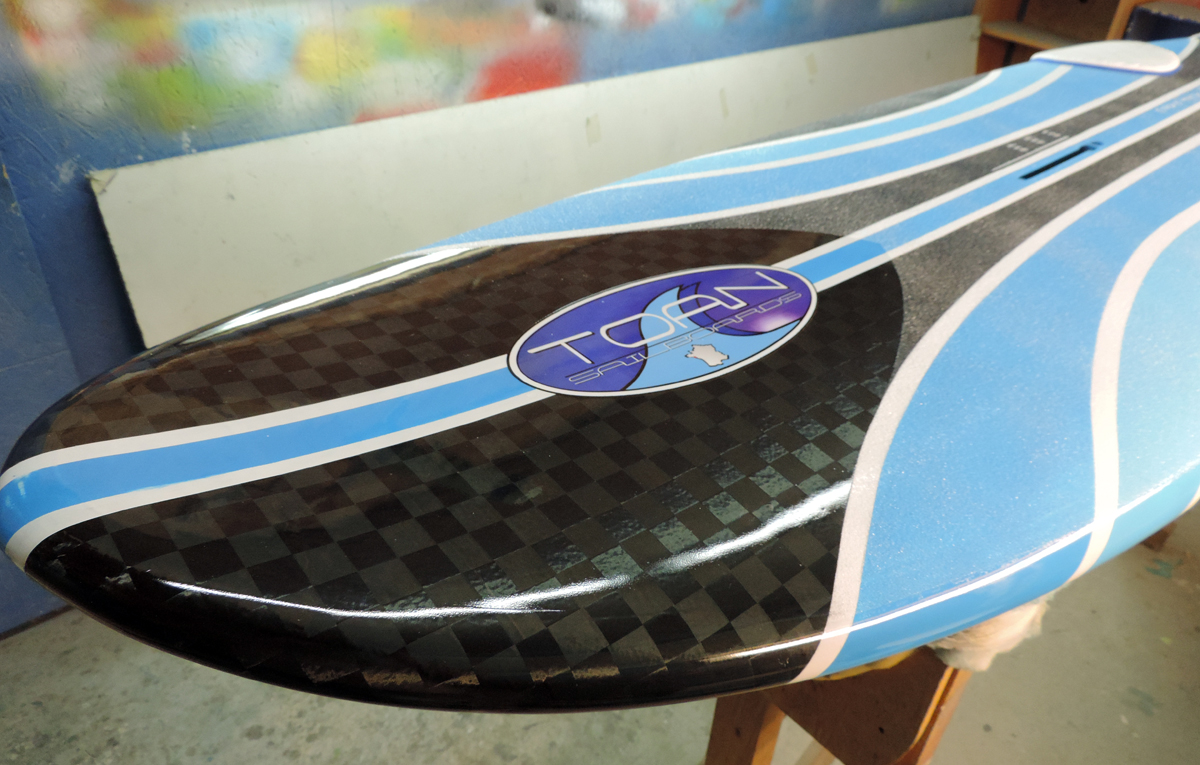

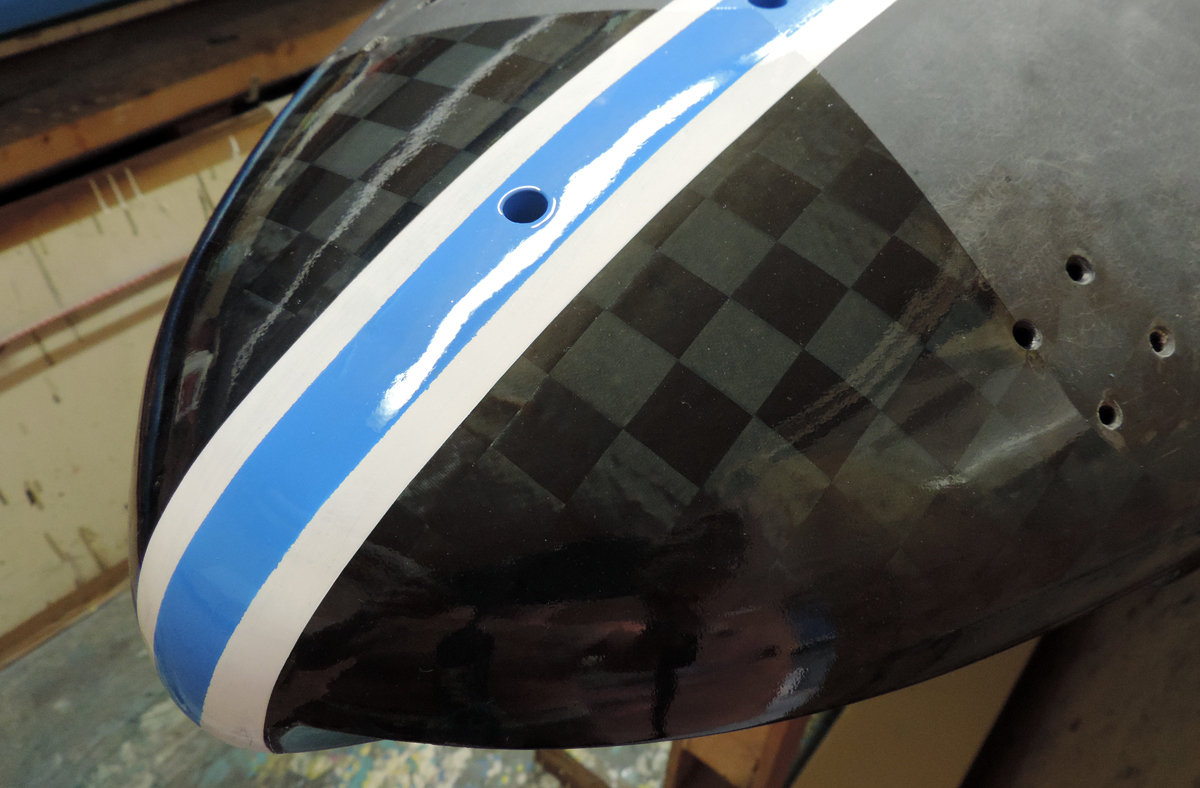

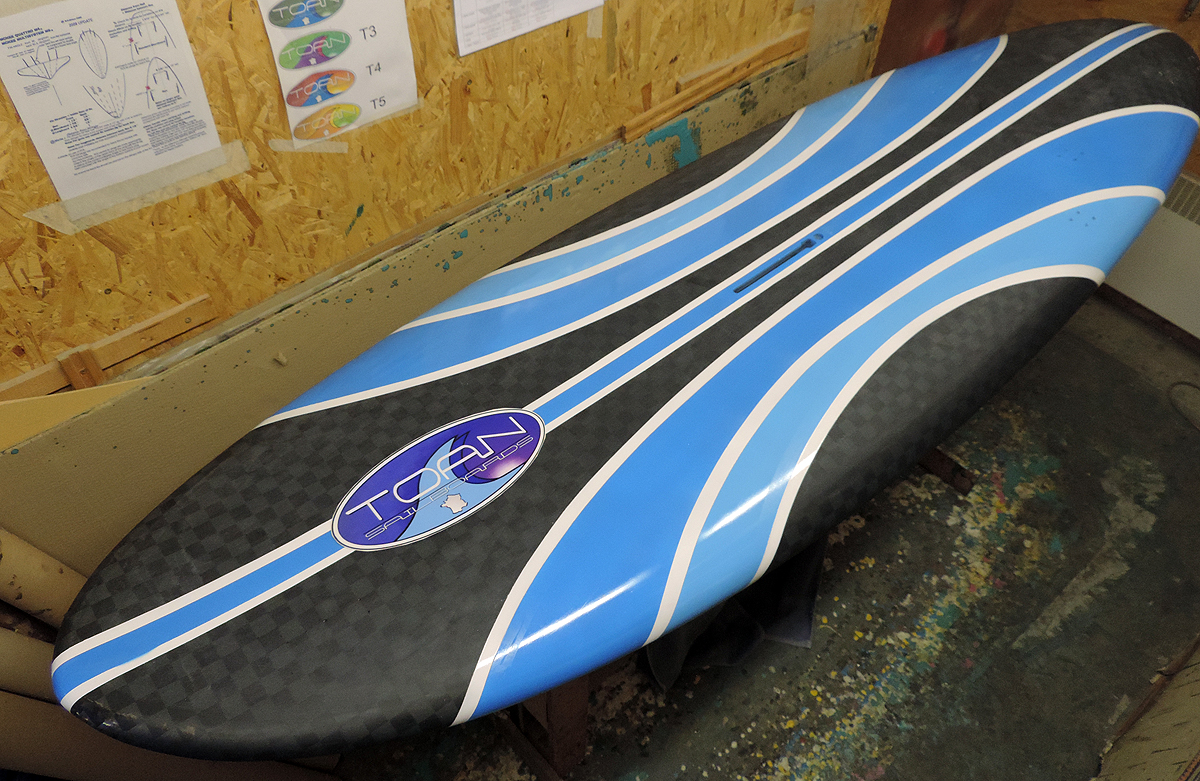

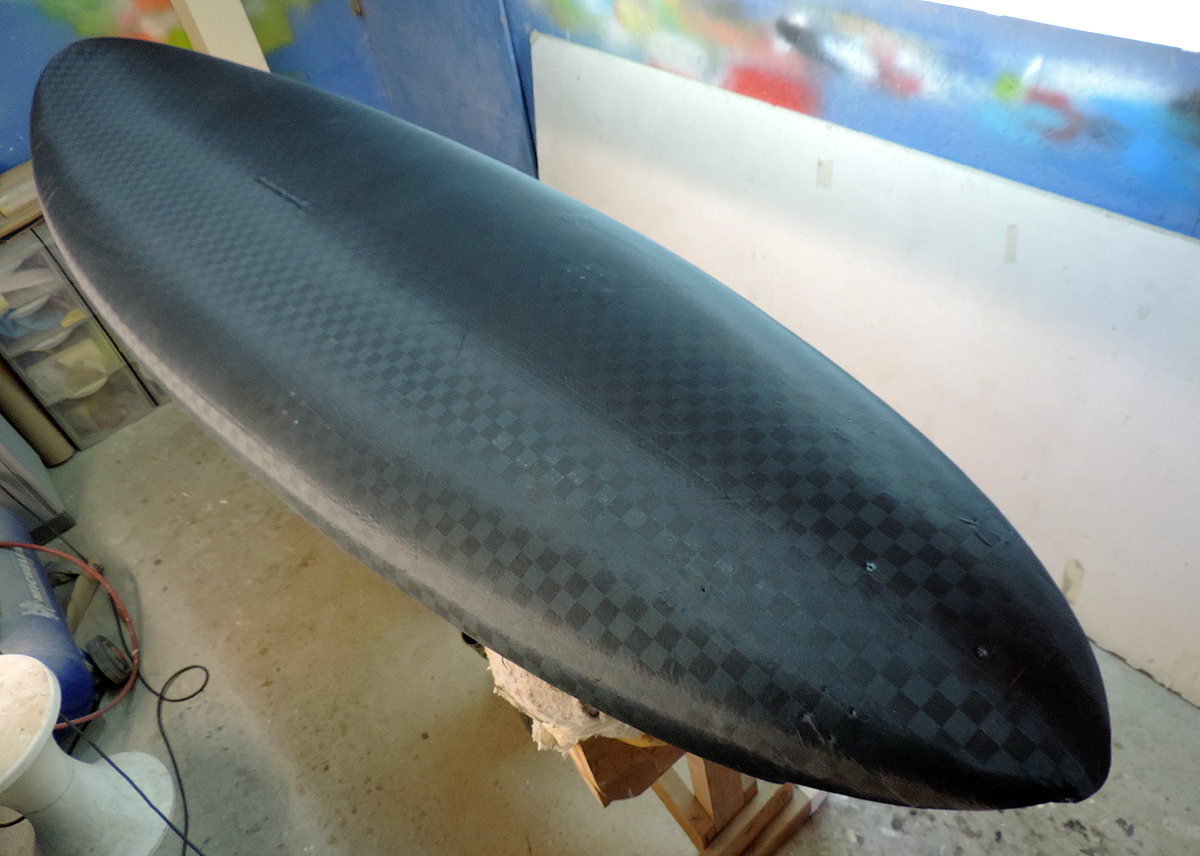

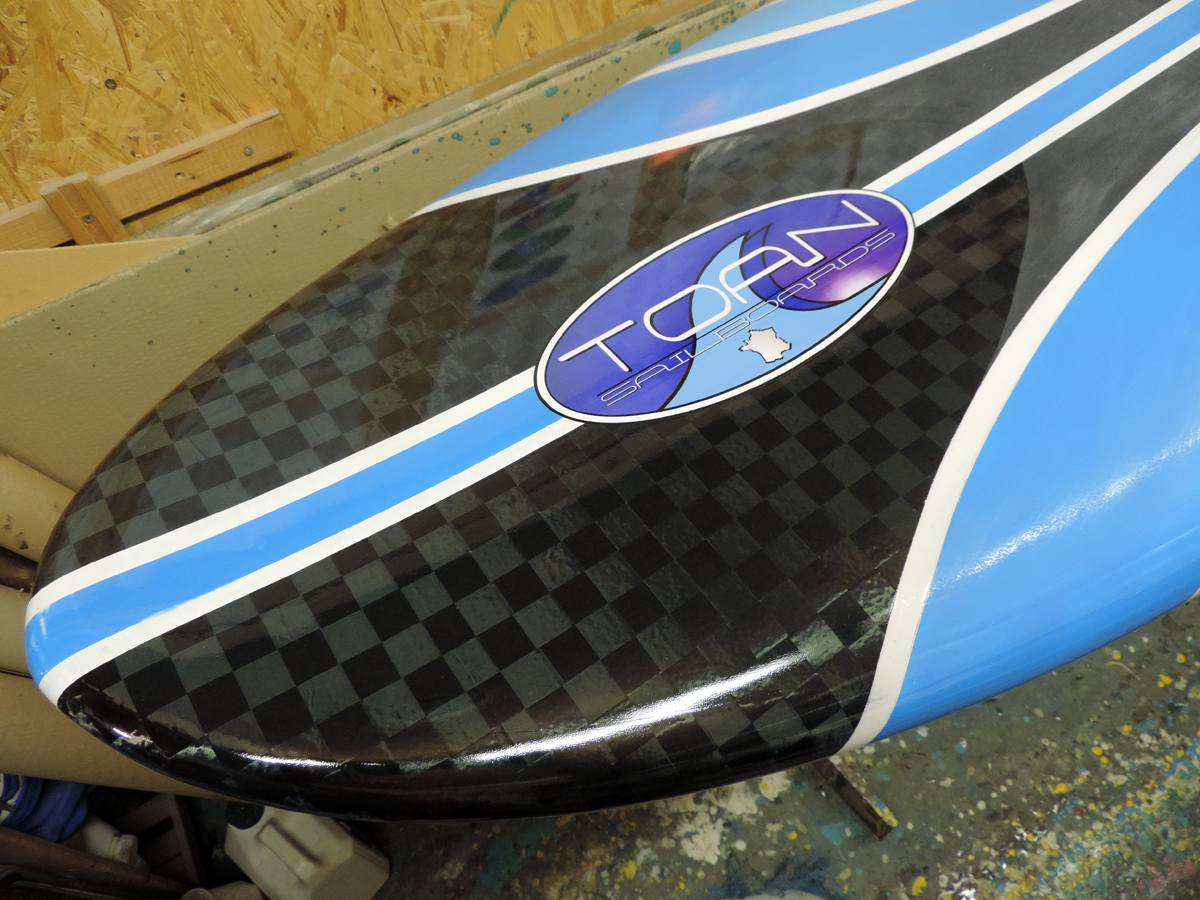

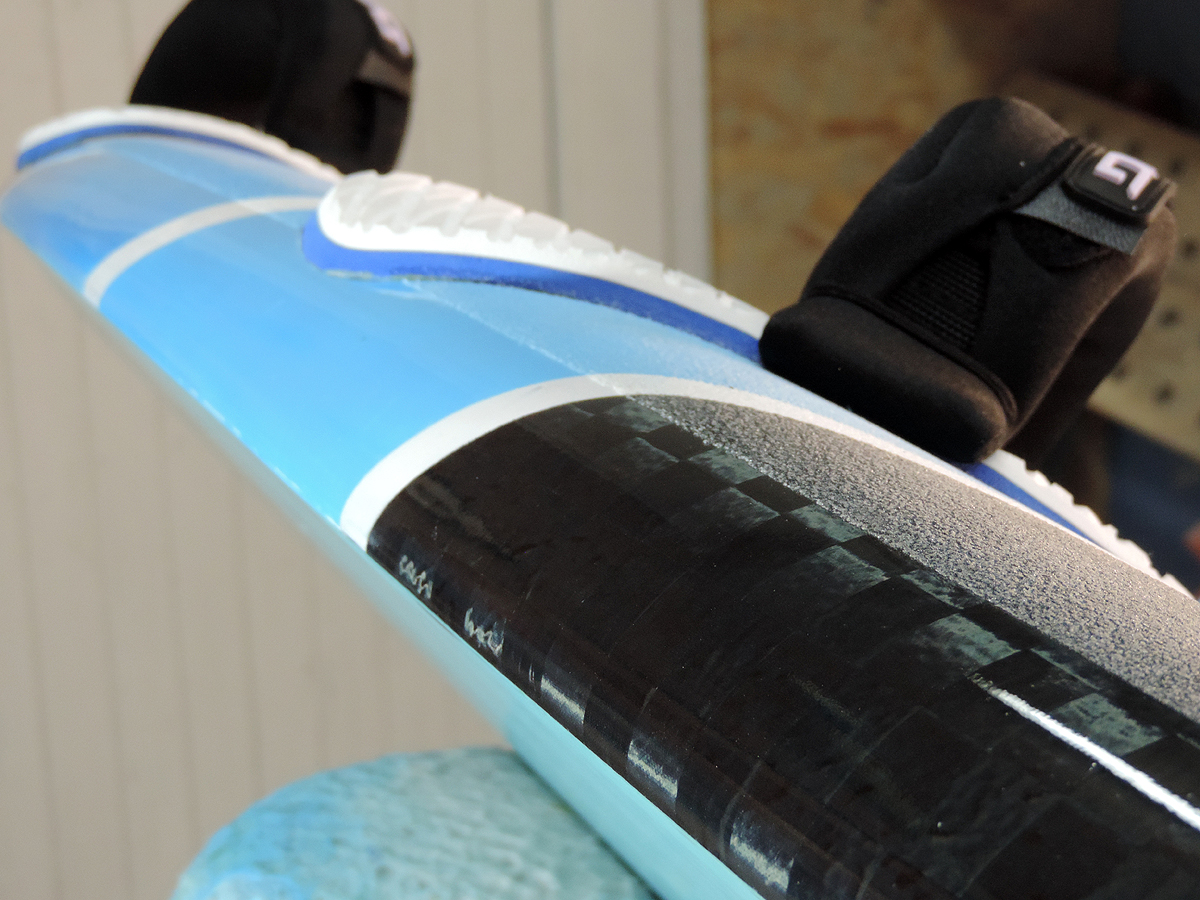

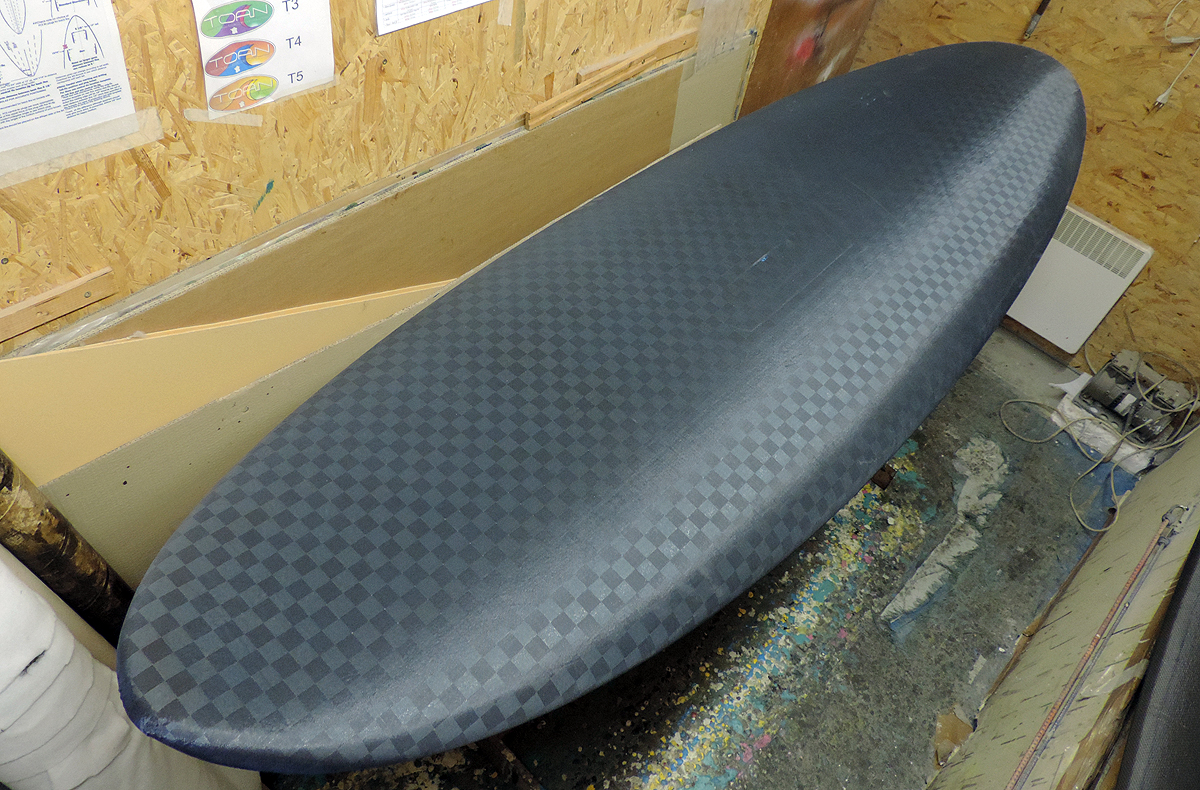

Strat extérieure : Carbone TeXtrem 160 gr/m2 + Verre 48 gr/m2, renforts Carbone 200 gr/m2 sous les pieds et au niveau du pied de mât
Carène :
Blocage : 1 x verre 86gr/m2 + renfort carbone 200 gr/m2 au niveau du box

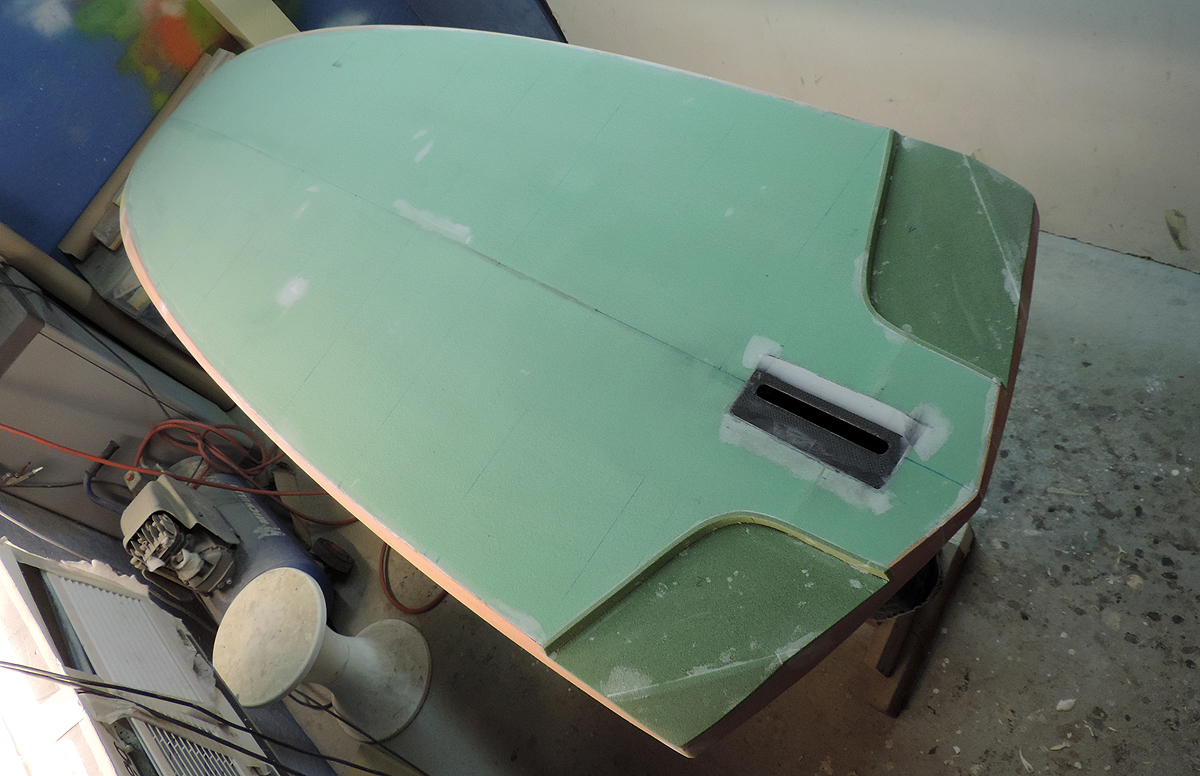

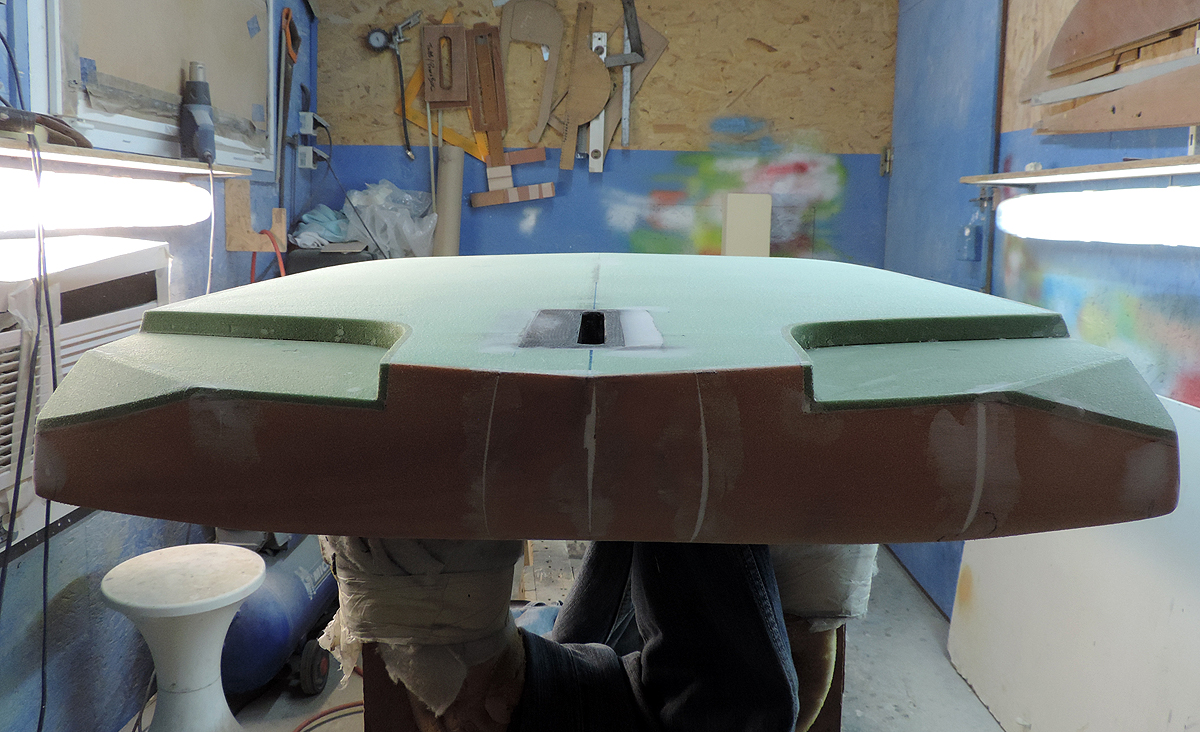

Sandwich : PVC 5mm 100 kg/m3, collé dans la foulée + double sandwich local 5 mm 100 kg/m3 pour le box d'aileron
Strat extérieure : Carbone taffetas 160 gr/m2, renfort Carbone 200 gr/m2 pour le box d'aileron

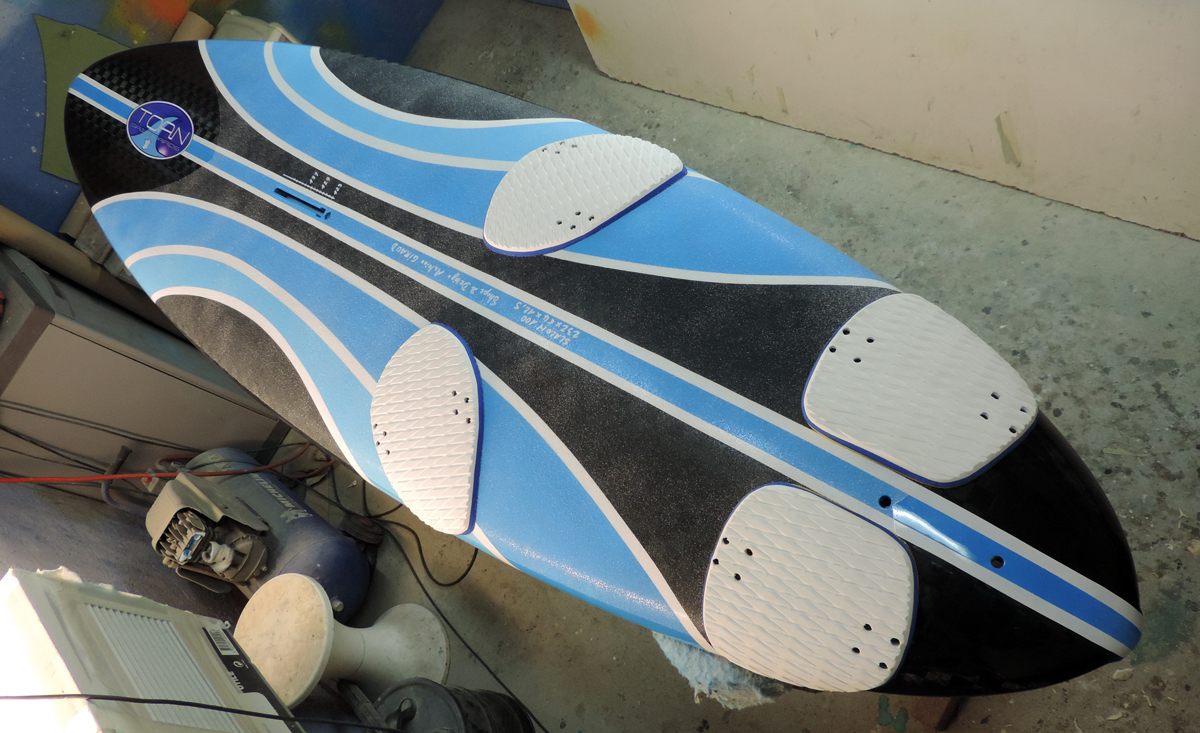

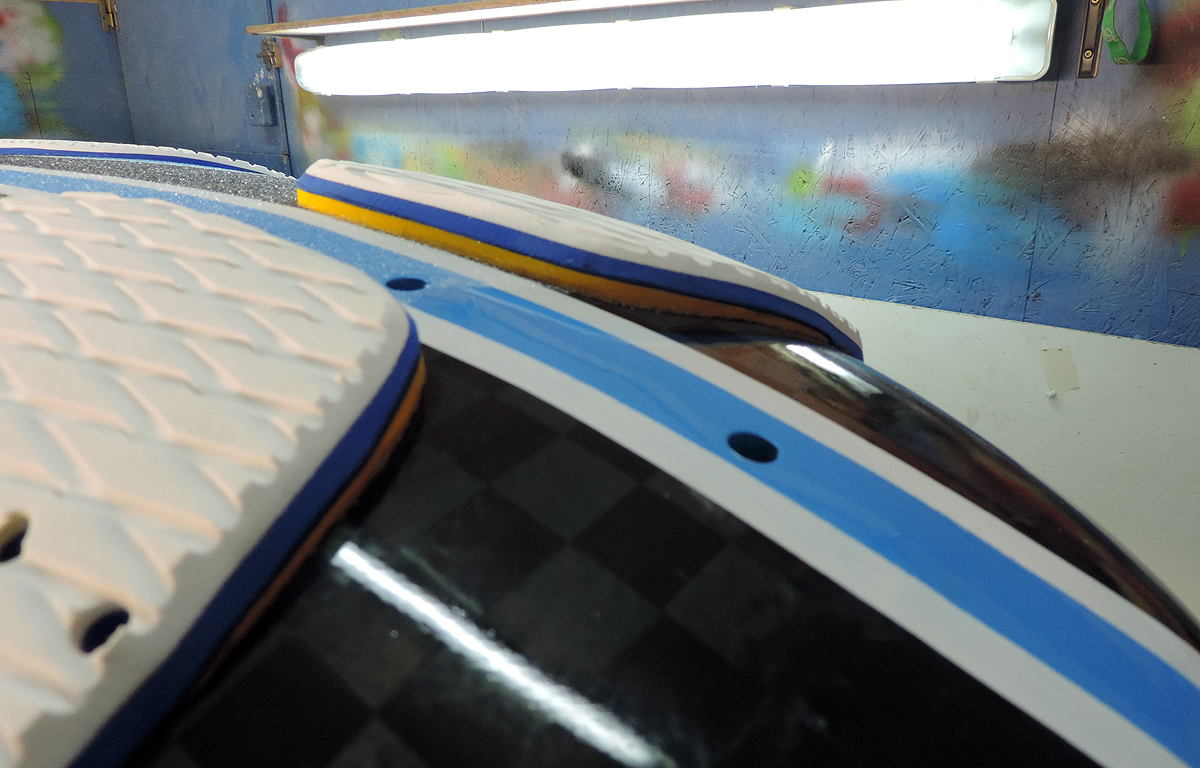

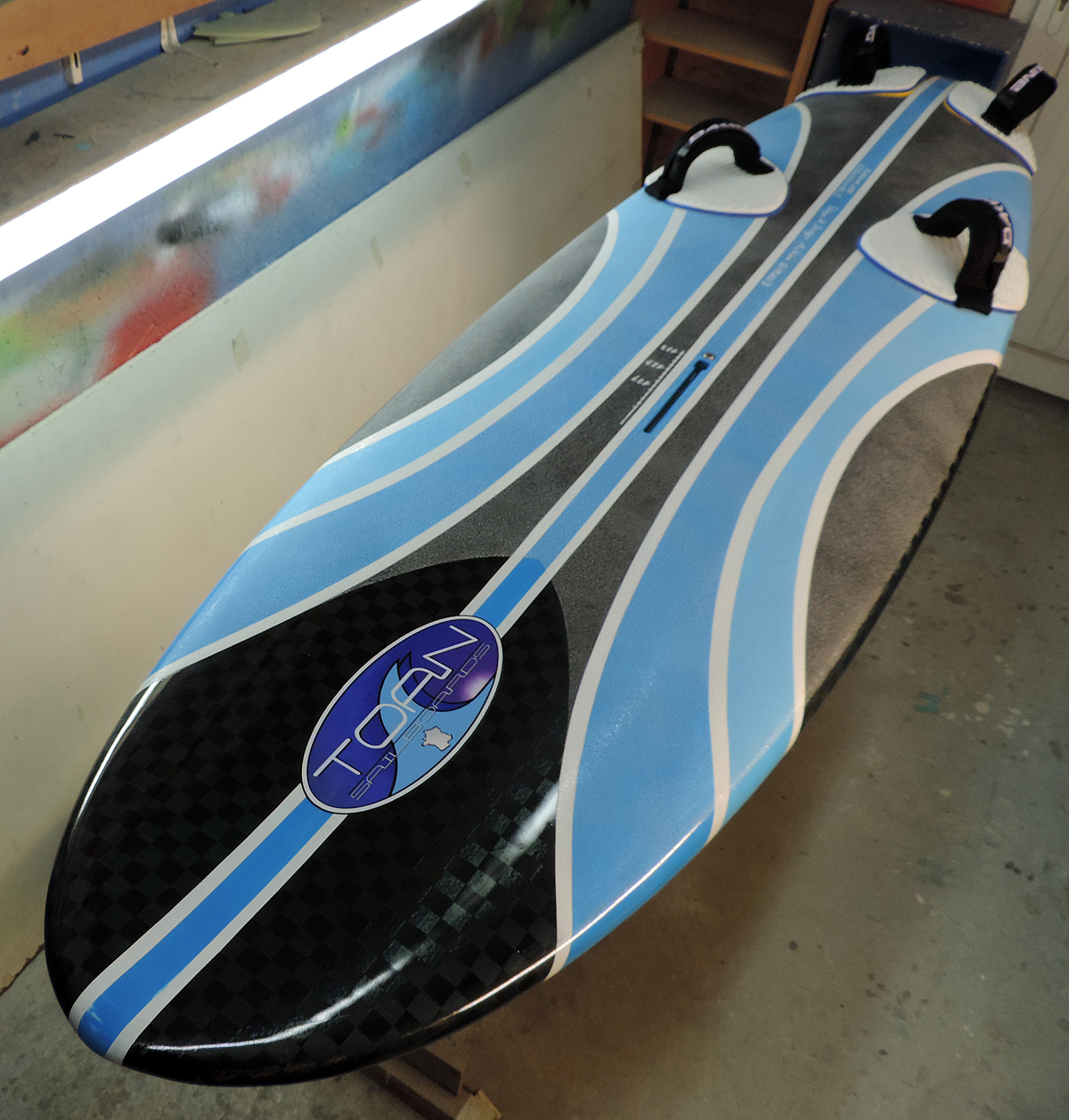

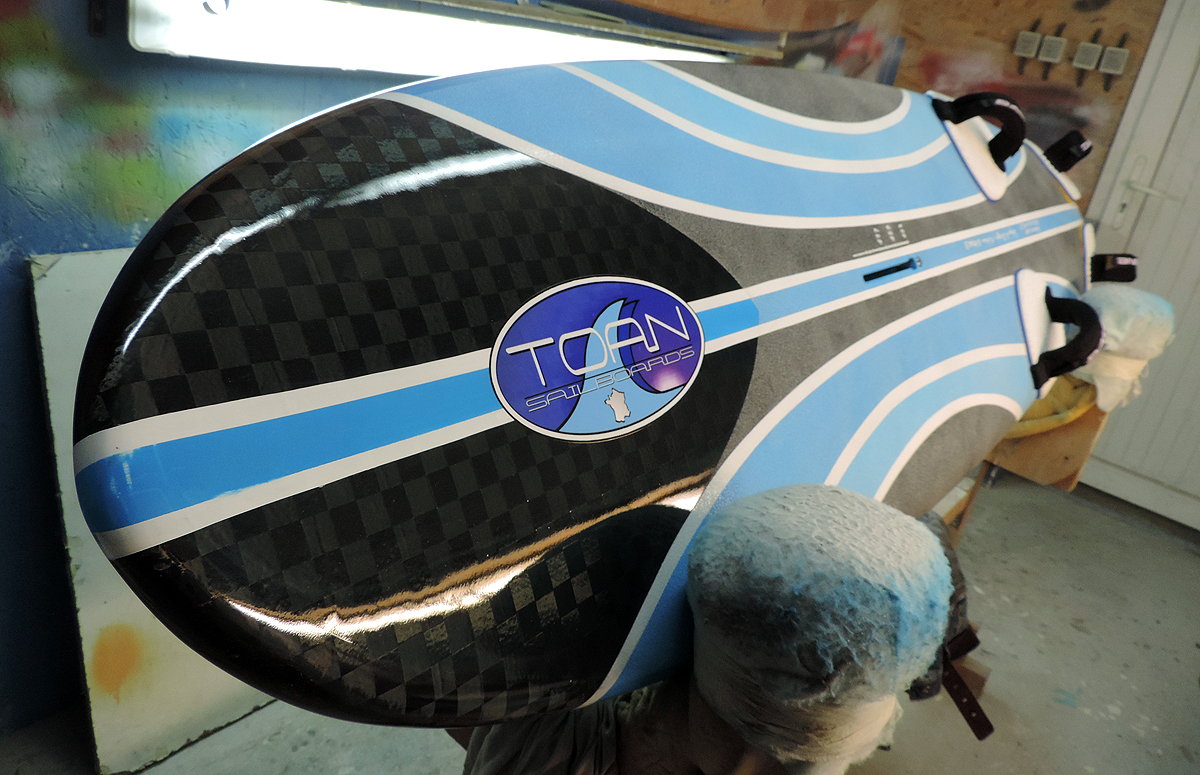

Finition : Glass epoxy pigmenté turquoise carène et "clear vision" pont, peinture PU. Poids final flotteur nu: 6485 gr

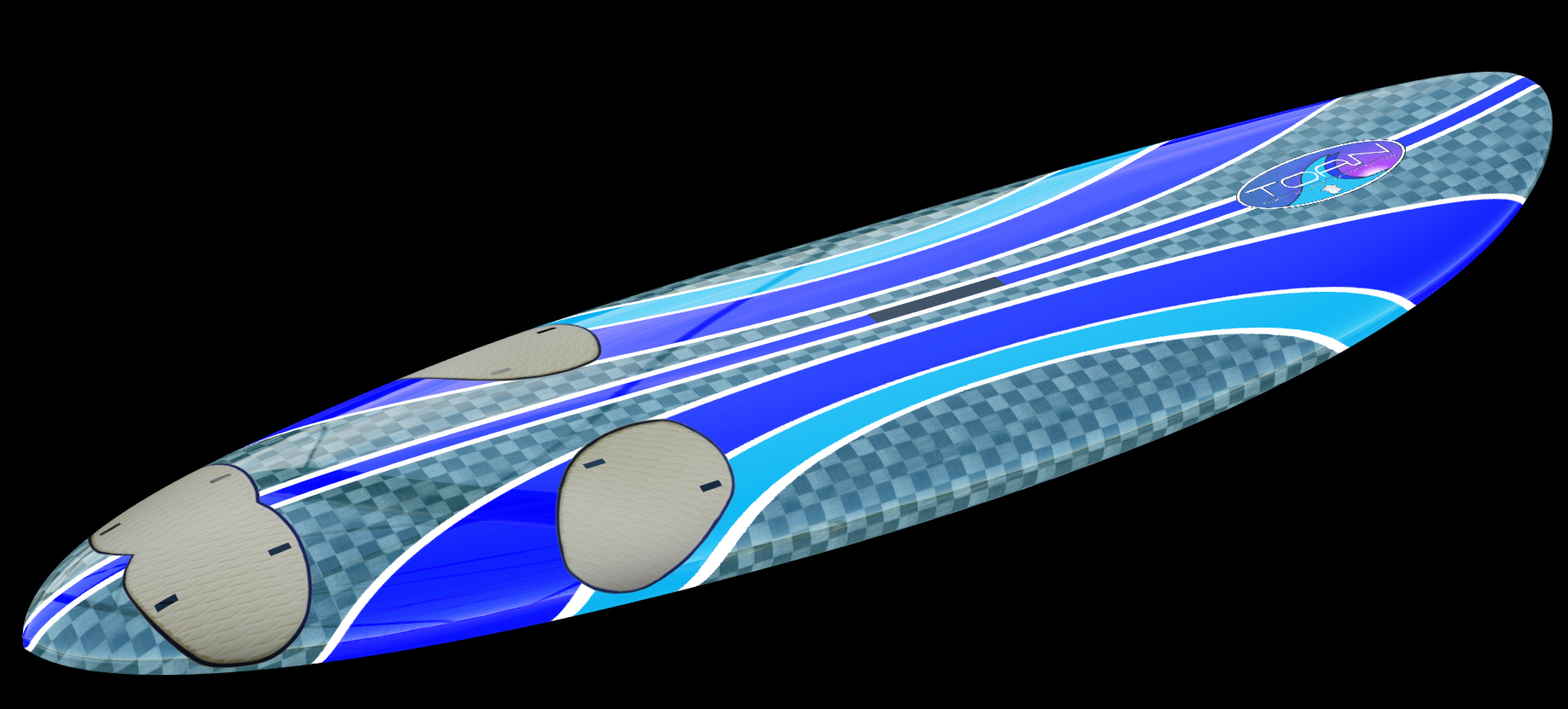

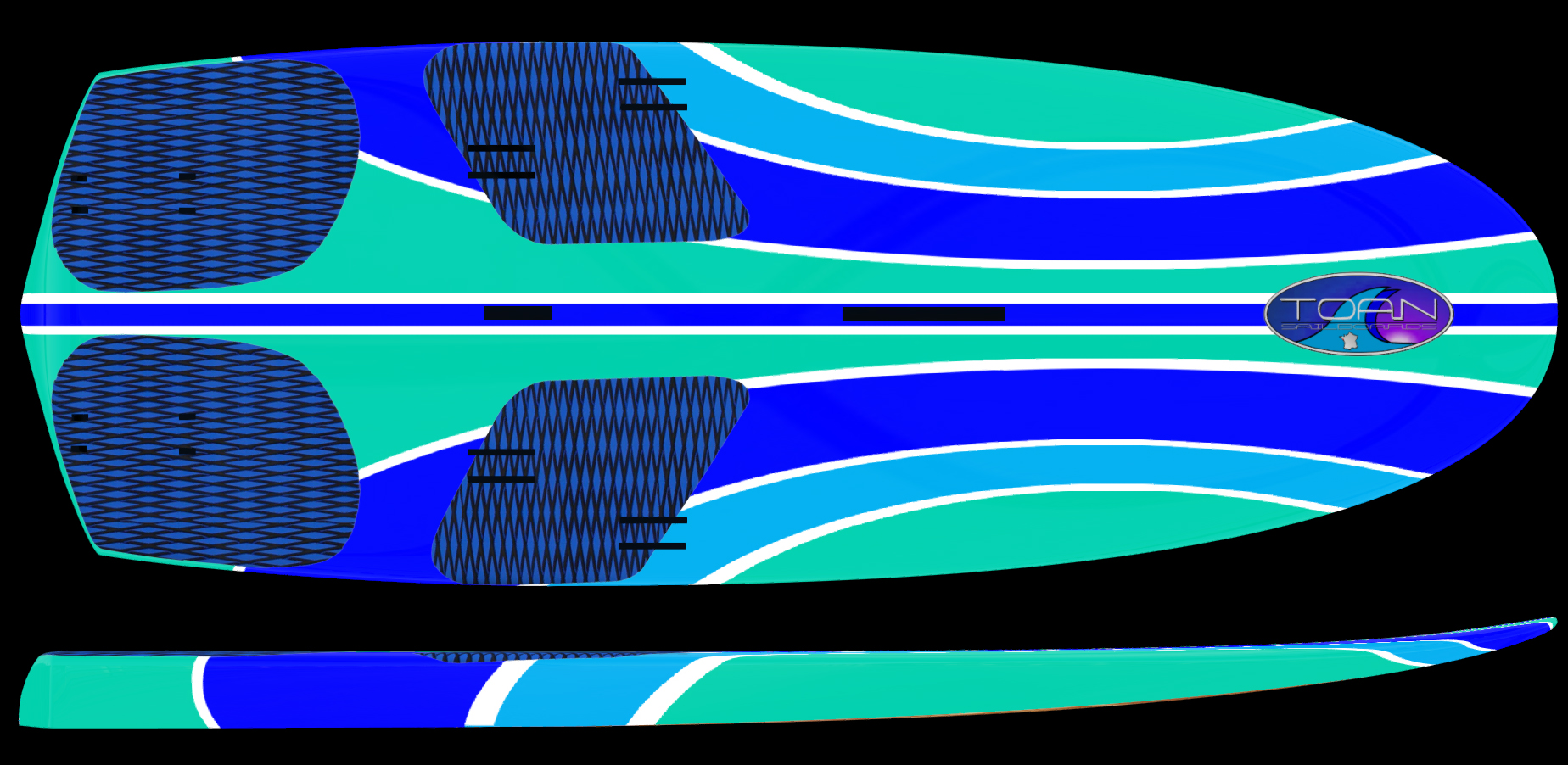

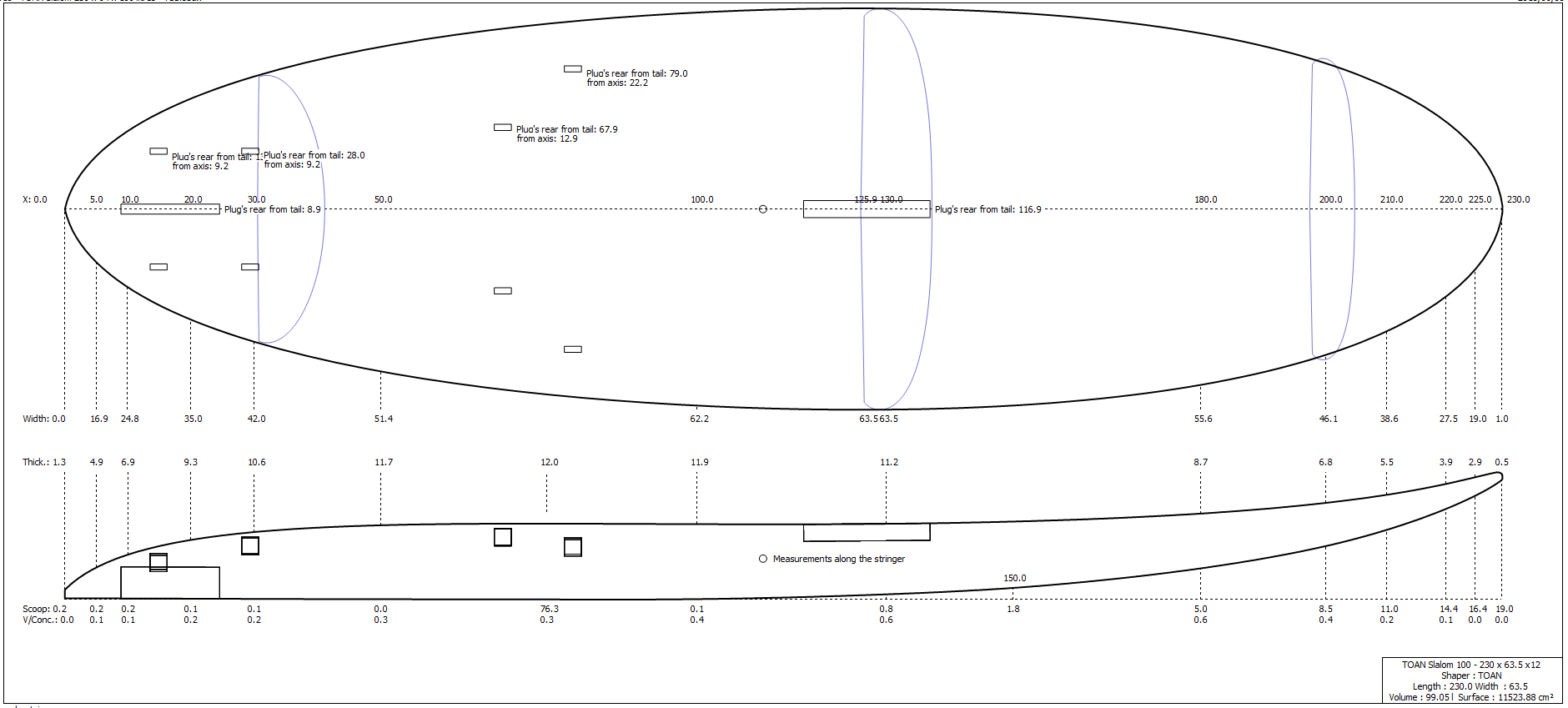

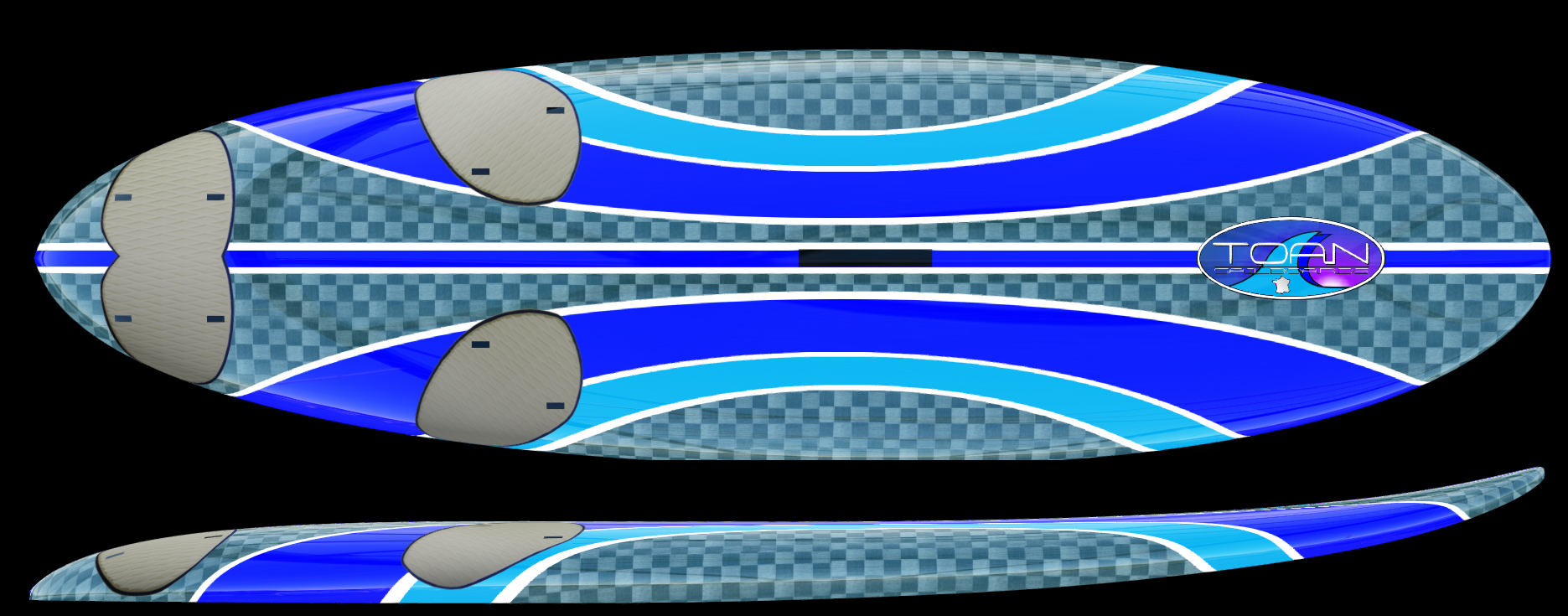

Télécharger les fichiers shape 3d

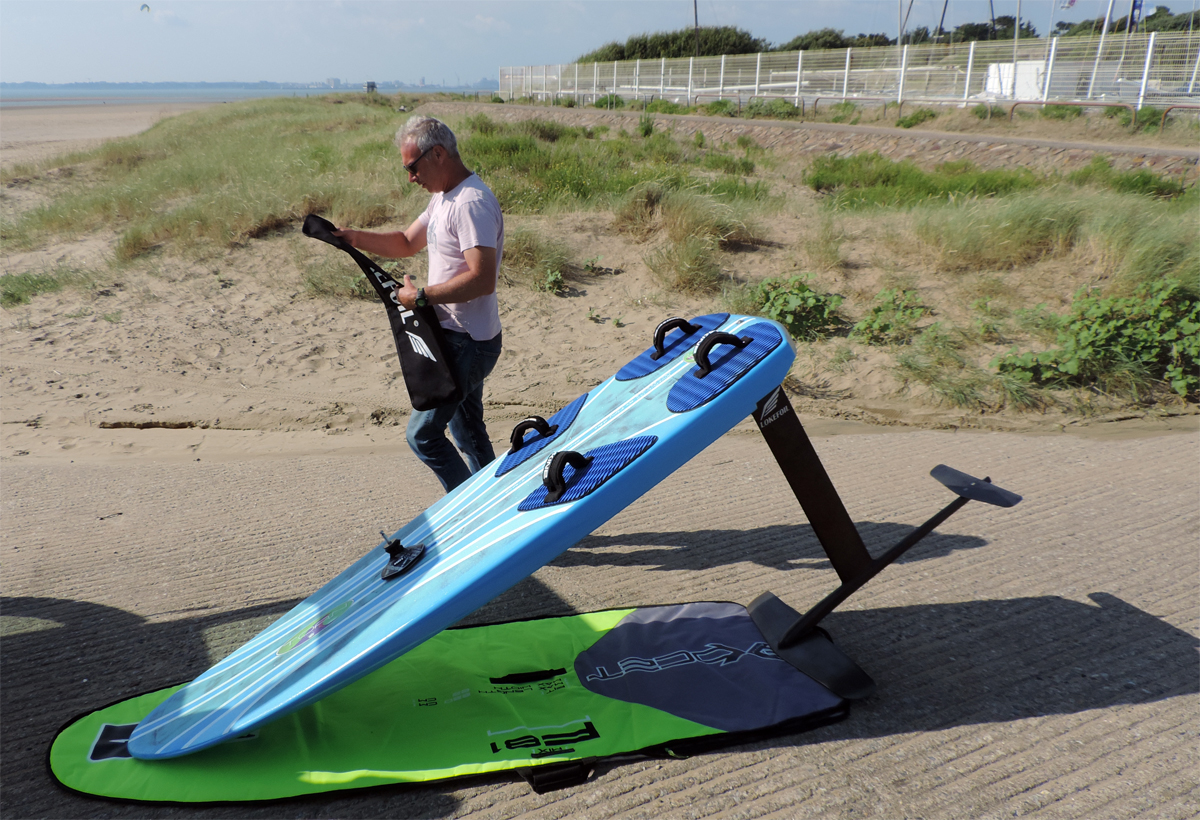

WindFoil 140 2018 et Slalom 100 at Work
WindFoil140 et Slalom 100 sur
